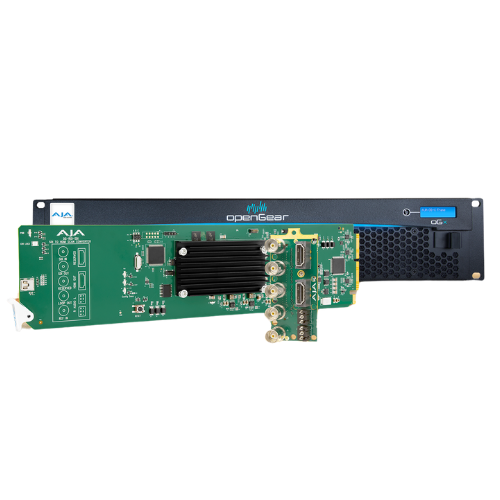

AJA OG-ROI-SDI | 3G-SDI to 3G-SDI/HDMI Scan Converter

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

3G-SDI to 3G-SDI and HDMI scan converter
Region of Interest (ROI) scaling for precise image extraction
SDI loop-through for signal pass and monitoring
Supports SD, HD, and 3G video formats
Aspect ratio and frame rate conversion
Image rotation, flip, and scaling options
Embedded audio supports up to 8 channels
Analog audio output for disembedded audio
Genlock support for synchronized workflows
Remote control via Ross Dashboard software

Pricing Dhs. 4,765.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional SDI to HDMI and SDI Conversion

The OG-ROI-SDI is a high-performance openGear scan converter that transforms SDI input signals into both 3G-SDI and HDMI outputs. It is designed for broadcast environments where flexible signal conversion and monitoring are essential.

Advanced Region of Interest (ROI) Scaling

This converter allows users to select and extract a specific portion of the incoming SDI signal. It helps eliminate unnecessary visual elements and ensures clean output tailored to production needs.

Flexible Conversion and Processing

OG-ROI-SDI supports up, down, and cross-conversion between formats. It includes aspect ratio adjustments, frame rate conversion, and deinterlacing to ensure compatibility across different workflows.

Enhanced Visual Control

With built-in support for image rotation, flipping, and scaling, the device allows complete control over output display. It is ideal for applications like multi-screen displays and video wall setups.

Integrated Audio Handling

The unit supports embedded SDI audio as well as analog audio output. Audio can be routed and embedded into SDI or HDMI outputs, ensuring synchronized audio-video performance.

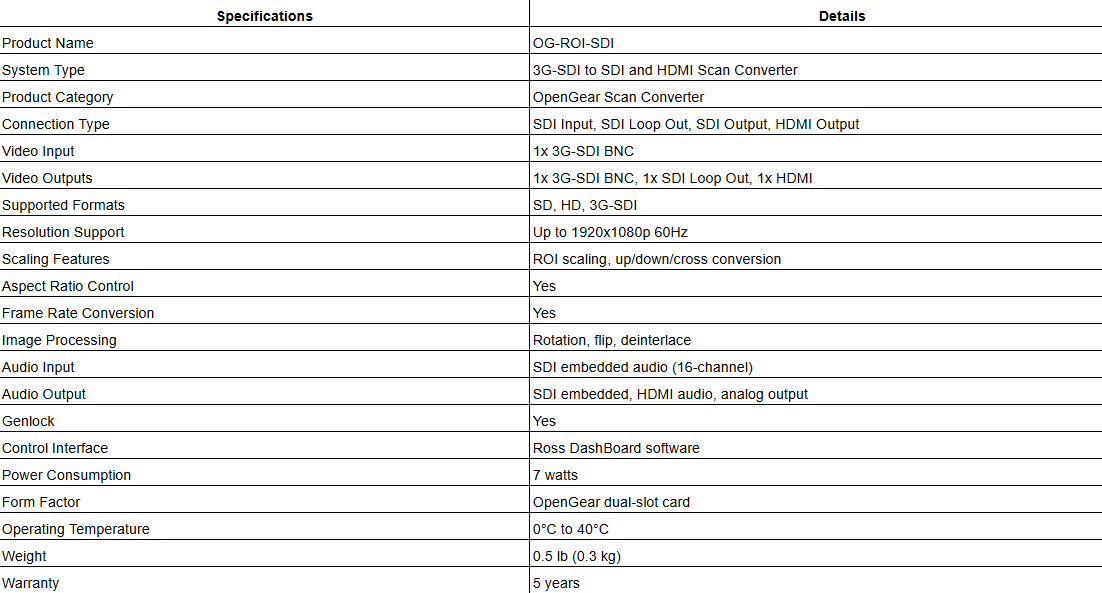

Technical Specifications +

technical specifications
