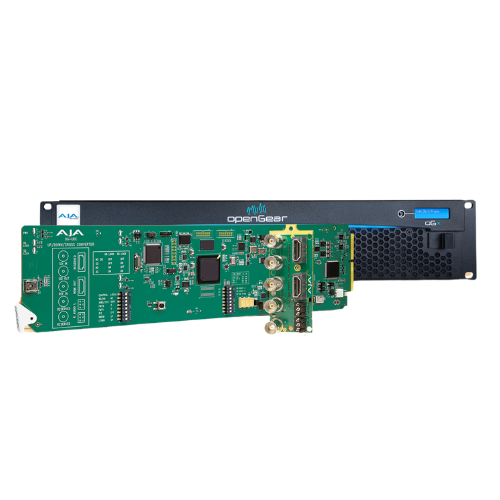

AJA OG-UDC 3G-SDI Up, Down, Cross-Converter

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

High-quality 3G-SDI up, down, and cross conversion
Supports SD, HD, and 3G HD formats including 1080p50/60
Simultaneous input and converted output on SDI
HDMI output for easy monitoring
16-channel embedded SDI audio support
Analog audio outputs via terminal block connectors
Remote control via Dashboard software
Local control via DIP switches
Reliable openGear-compatible design
Five-year warranty

Pricing Dhs. 3,367.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional Video Conversion

The OG-UDC is designed to deliver broadcast-quality up, down, and cross conversion between SD, HD, and 3G formats. It ensures smooth signal transitions while maintaining excellent image clarity across all formats.

Flexible Workflow Integration

With both SDI and HDMI outputs, this converter easily integrates into modern production setups. It allows simultaneous monitoring and signal distribution without requiring additional hardware.

Advanced Conversion Technology

Powered by high-performance hardware processing, the OG-UDC ensures precise scaling and format conversion. It supports multiple frame rates and resolutions, making it suitable for demanding production environments.

Reliable Audio Handling

The unit supports 16-channel embedded SDI audio and provides analog audio outputs. This ensures synchronized audio and video across all workflows without additional configuration.

Easy Control and Configuration

Users can control the OG-UDC through DashBoard software or local DIP switches. This flexibility allows quick setup and efficient operation in both studio and field environments.

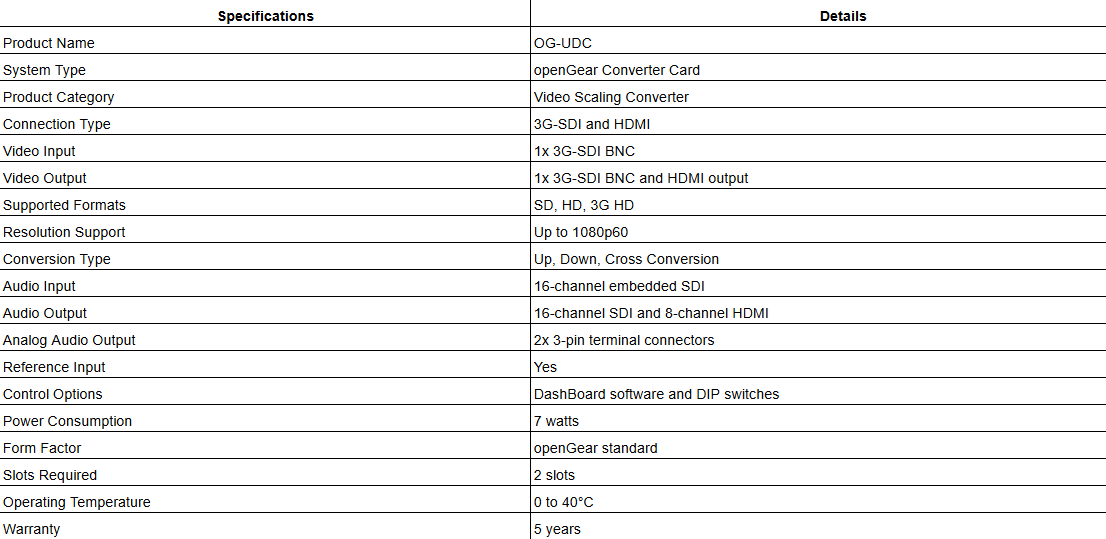

Technical Specifications +

technical specifications
