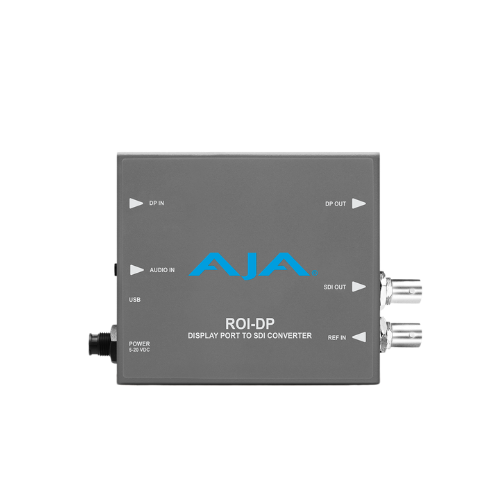

AJA ROI-DP DisplayPort to SDI with ROI scaling

AJA Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

DisplayPort to 3G-SDI conversion with DisplayPort loop-through
Region of Interest (ROI) scaling for precise screen extraction
Supports SD, HD, and 3G video formats
EDID emulation for stable signal communication
Frame rate, aspect ratio, and cross conversion support
Image rotation and flip, including 90-degree rotation
Accepts DisplayPort input up to 1920 x 1200 at 60Hz
Embedded 8-channel DisplayPort audio support
2-channel analog audio input via 3.5mm TRS
USB configuration using AJA Mini-Config software
Loss of input handling (black, freeze, or mute options)
Compact portable mini-converter design
Universal power supply included

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Professional DisplayPort to SDI Conversion

The ROI-DP DisplayPort to SDI with ROI scaling is designed to convert DisplayPort computer outputs into professional SDI video signals. It is ideal for broadcast environments, production workflows, and live display applications.

Region of Interest Control

This device enables users to select and extract a specific portion of the DisplayPort source. It removes unnecessary on-screen elements and delivers a clean, focused output with precise scaling control.

Flexible Signal Compatibility

It supports DisplayPort inputs up to 1920 x 1200 resolution, making it suitable for a wide range of computer systems used in professional video production and presentation environments.

Advanced Video Processing

The converter supports up/down conversion, frame rate adjustment, aspect ratio correction, and image rotation. These features ensure compatibility across multiple broadcast and display formats.

Integrated Audio Support

ROI-DP supports embedded multi-channel DisplayPort audio along with analog audio input. Audio can be embedded into SDI output for synchronized playback across professional systems.

Technical Specifications +

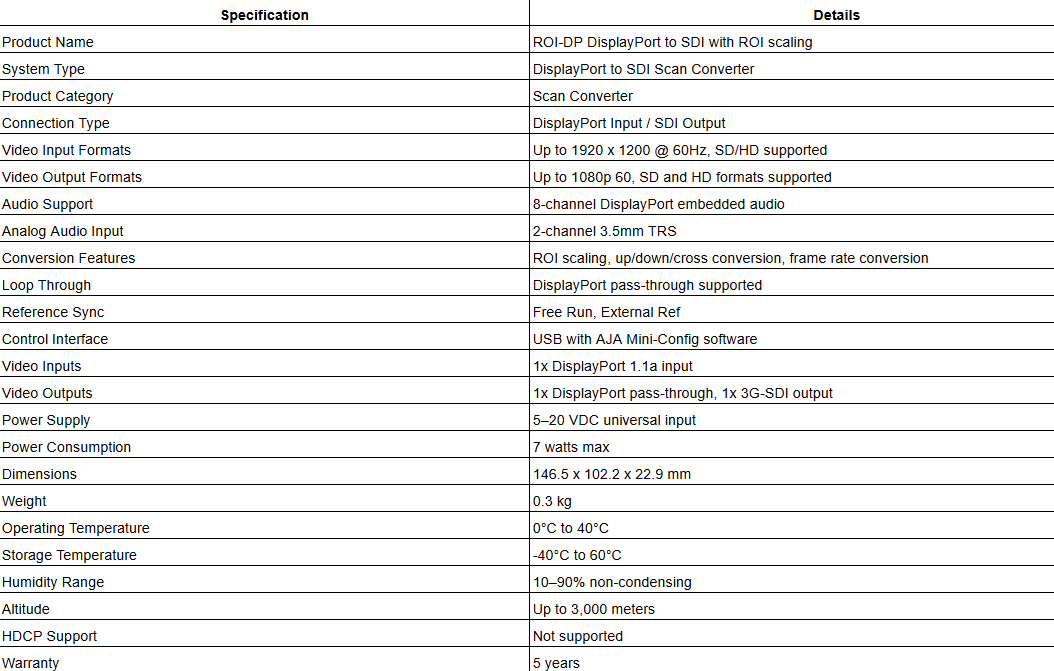

technical specifications
