S-4600 SDI to HDMI® Converter

SWIT Video Converter

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Portable 3G/HD/SD-SDI to HDMI® converter
1× SDI input, 1× HDMI® output, and 1× SDI loop output
SDI audio output via 3.5mm headphone socket
Embedded SDI audio conversion to HDMI®
Power, input, and output LED status indicators
Pole-tap DC power input (6–18V)
Durable aluminium alloy housing
Bottom 1/4-inch screw thread for easy installation

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact SDI to HDMI® Conversion

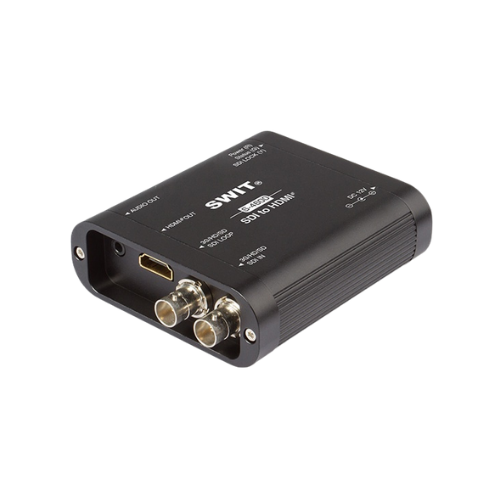

The S-4600 is a portable mini converter designed to convert 3G/HD/SD-SDI signals to HDMI®. It is ideal for connecting professional broadcast equipment to HDMI® displays such as TVs, LED screens, and projectors.

Flexible Input & Output Options

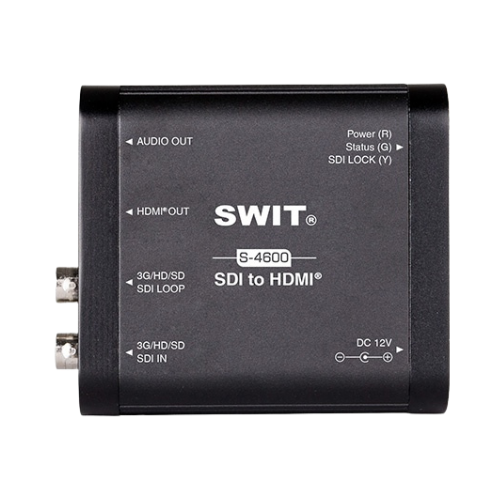

Equipped with a 3G/HD/SD-SDI input, loop output, and HDMI® output, the converter allows seamless signal monitoring and distribution. The reclocked SDI loop output ensures signal integrity for extended workflows.

Embedded Audio Conversion & Monitoring

The converter supports SDI embedded audio (channels 1 & 2), which can be output through HDMI® as well as a 3.5mm headphone jack. This enables real-time audio monitoring with a 48kHz sample rate.

LED Status Indicators

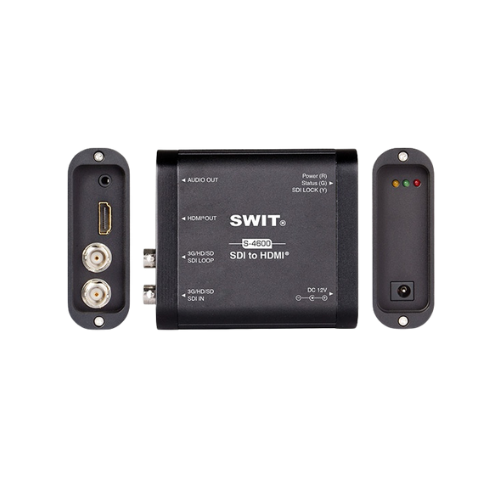

Three built-in LED indicators provide clear status updates for power, input signal, and output signal, ensuring easy troubleshooting and operation.

Flexible Power Options

The S-4600 supports a wide DC input range of 6–18V via pole-tap connection. It includes an AC-DC adapter and can also be powered using external battery solutions for field use.

Durable & Installation-Friendly Design

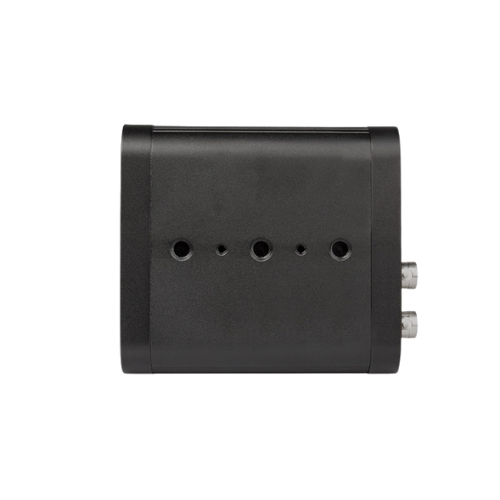

Built with a heavy-duty aluminium alloy housing, the converter is designed for professional field use. It also features a 1/4-inch mounting thread and includes an installation plate for secure mounting.

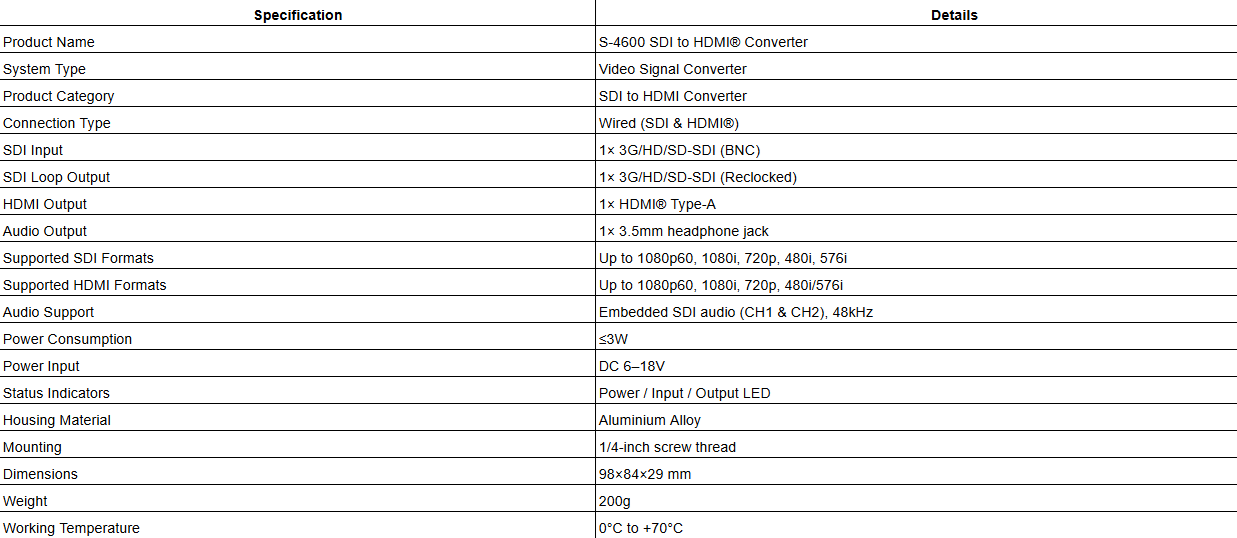

Technical Specifications +

technical specifications
