Versatile Long-Distance 4K Production Routing

The Sony HDCE-500 is a specialized, heavy-duty camera extension adaptor engineered to maximize the operational radius of high-performance Sony HDC series fiber cameras and compact POV heads. Built explicitly for outdoor sports broadcasting, large-scale arena layouts, and complex wirecam tethers, this transmission hub circumvents the physical distance limitations of standard hybrid cabling by converting core telemetry streams into lightweight, long-range Single-Mode Fiber (SMF) links.

Eliminated Field Power Constraints

Deploying high-end 4K system cameras into hard-to-access perimeters—such as golf course tower positions, ski-slopes, or aerial crane tracks—is simplified with the HDCE-500. By feeding raw operational current down the hybrid optical umbilical line, it powers the camera head completely from a remote point. This removes the risk and logistical friction of tracking localized field batteries or searching for clean on-site utility mains under changing weather conditions.

Dual Transmission Sub-Systems

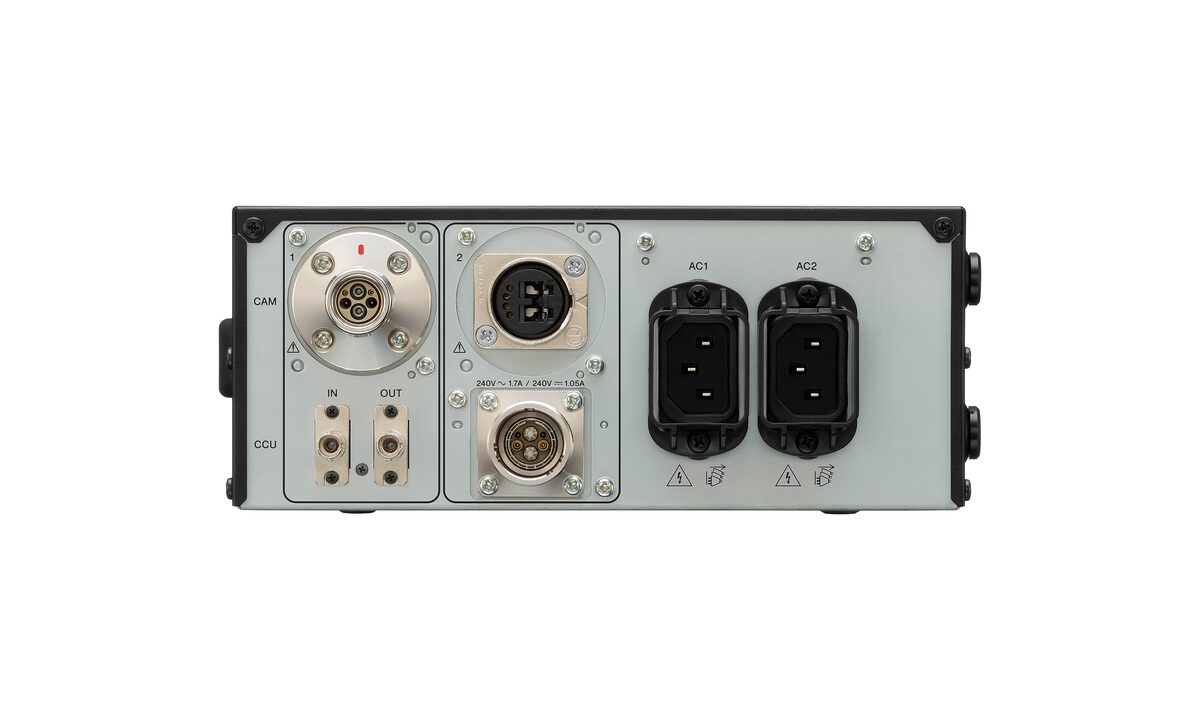

The physical backplane of the HDCE-500 contains two dedicated camera infrastructure pathways. The first port (CAMERA1) utilizes a pure optical fiber infrastructure optimized to transmit signals and power up to 3km out to standard HDC-5000 and HDC-3000 series studio cameras. The second port (CAMERA2) is built around a hybrid optical/electrical multi-connector to pipe high-bandwidth data and power up to 350m straight to compact point-of-view blocks like the HDC-P50A, establishing an integrated, multi-camera matrix.

Essential Routing Infrastructure for International Venues

The Sony HDCE-500 serves as an indispensable field link across Pakistan, the UAE, and Africa, where sweeping stadium dimensions and massive multi-acre venue properties require resilient, long-range cable drops. By packing high-power utility distribution and multi-signal conversion logic into a clean, compact footprint, outside broadcast (OB) trucks and field flypacks can maintain flawless 4K and high-frame-rate (HFR) video feeds without telemetry loss. For broadcast engineering teams looking to break past fiber distance limitations, the HDCE-500 is the ultimate extension tool.
