16-Key IP Lever Panel – 700-31-02

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

16 fully programmable dual-action lever keys
5-character alphanumeric displays per key
Built-in loudspeaker and gooseneck microphone
Headset connectivity via XLR5
Assignable level control and channel gain
Shift and assign key functionality
Loudspeaker and microphone cut button
Supports expansion up to 64 keys
2 input and 2 output GPIO with footswitch support
Compatible with Mercury and Gemini intercom systems

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

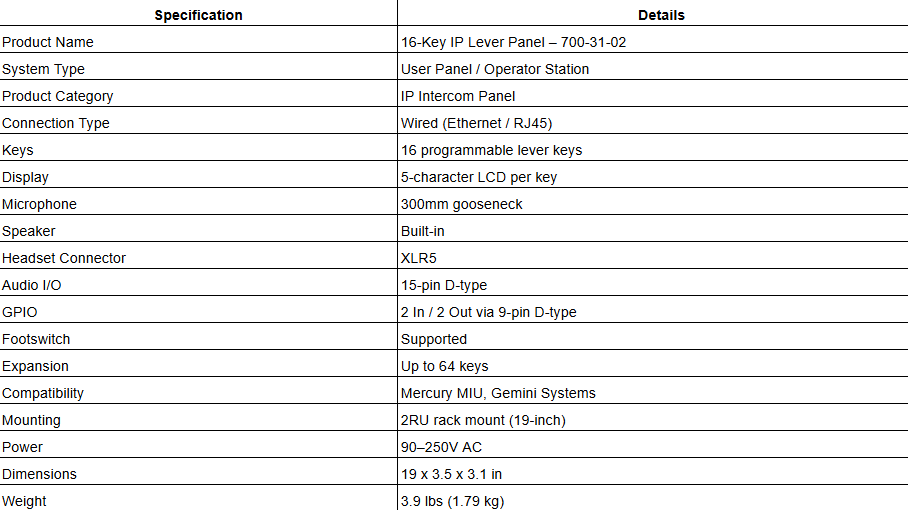

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

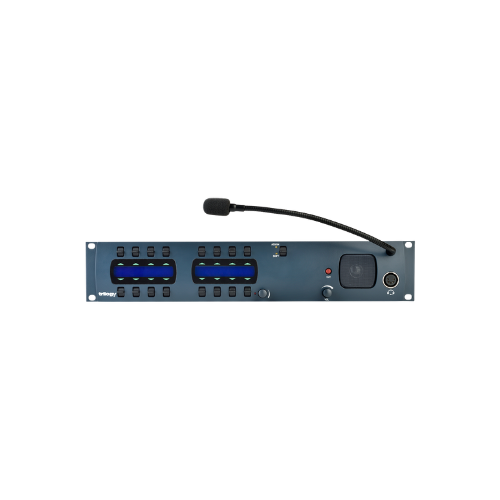

The 16-Key IP Lever Panel is a professional user panel designed for seamless access to Mercury IP and Gemini intercom systems. It provides intuitive control and clear communication for operators in demanding environments.

Functionality

Equipped with 16 dual-action lever keys, the panel allows users to manage communication channels efficiently. Each key includes a dedicated display for clear identification and quick operation.

Integration

The panel connects directly to Mercury Interface Units or Gemini matrix systems via IP, enabling flexible deployment across networked communication environments.

User Experience

With a built-in speaker, gooseneck microphone, and headset support, the panel offers multiple communication options. Independent gain control per channel ensures optimal audio levels.
