30-Button Touchscreen IP Panel – 700-37-03

30-Button Touchscreen IP Panel – 700-37-03

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

30 fully programmable touchscreen keys
An additional 30 keys via the shift function
4 high-resolution color touchscreen displays
8-character alphanumeric display per key
Built-in loudspeaker and gooseneck microphone
Independent gain control per channel
Last caller audio replay feature
Telephone dial mode support
2 GPI inputs and 2 GPI outputs
LAN connectivity for IP-based communication

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

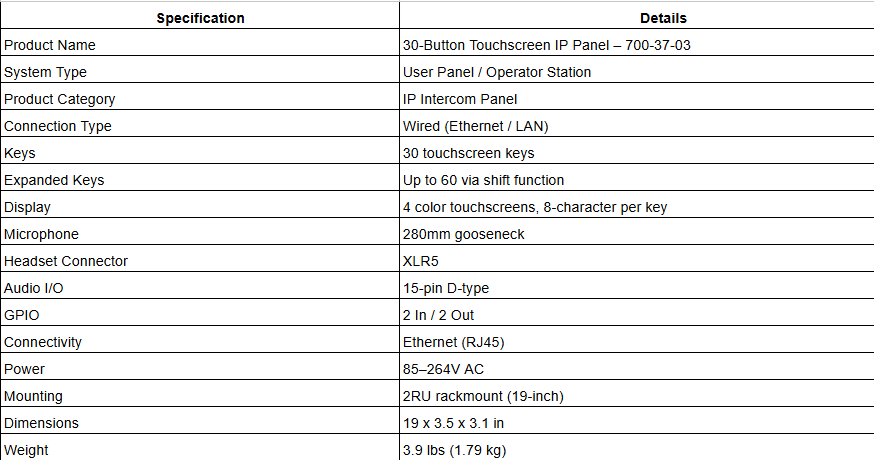

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

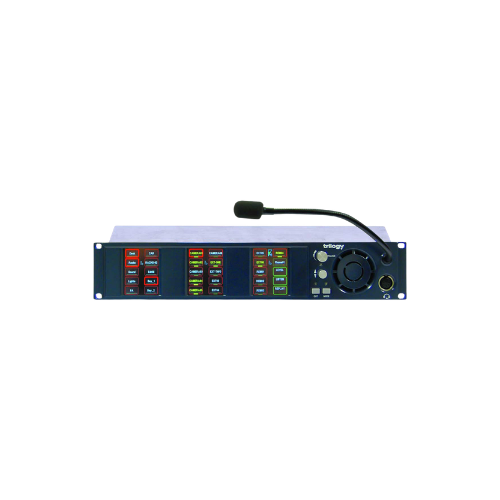

The 30-Button Touchscreen IP Panel is a professional 2RU rackmount user panel designed for use with Gemini Matrix Intercom systems. It combines touchscreen flexibility with high-resolution displays for advanced communication control.

Functionality

The panel features 30 programmable touchscreen keys, expandable to 60 using shift functionality. It allows operators to manage multiple communication channels efficiently with intuitive controls.

Integration

Designed for Gemini Matrix systems, the panel connects via LAN, enabling seamless integration into IP-based communication networks.

User Experience

Equipped with four color touchscreens, a built-in speaker, and a 280mm gooseneck microphone, the panel ensures clear communication and easy navigation. Additional features like last caller replay and telephone dial mode enhance usability.
