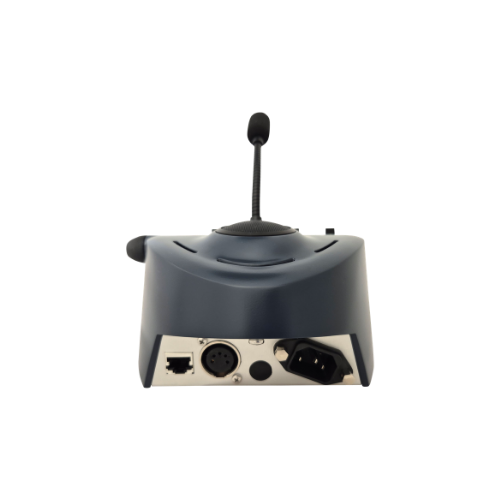

8-Key Desktop IP Lever Panel – 700-41-03

8-Key Desktop IP Lever Panel – 700-41-03

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

8 programmable dual-action lever keys
Shift function expands to 24 additional key assignments
5-character alphanumeric displays per key
Built-in loudspeaker and electret gooseneck microphone
Supports both latching (hands-free) and PTT operation
Assignable level control for each channel
Loudspeaker and microphone CUT function
Remote headset support via XLR5
Optional GPI input/output support
Compact desktop design for operator convenience

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

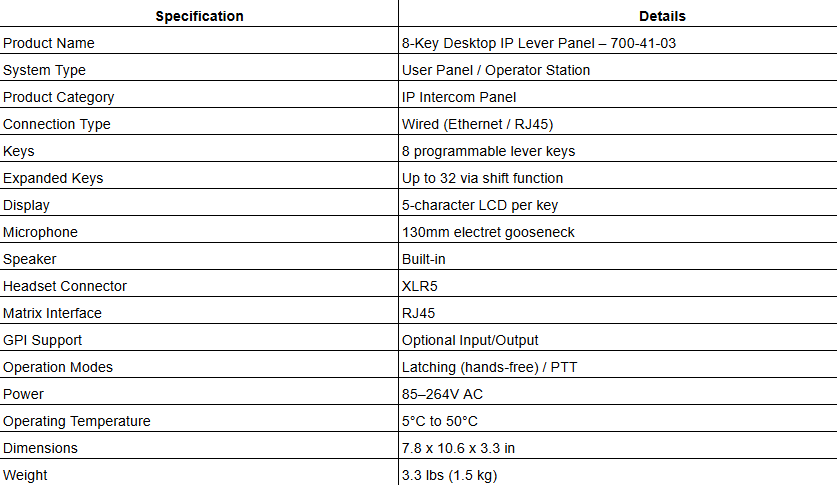

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

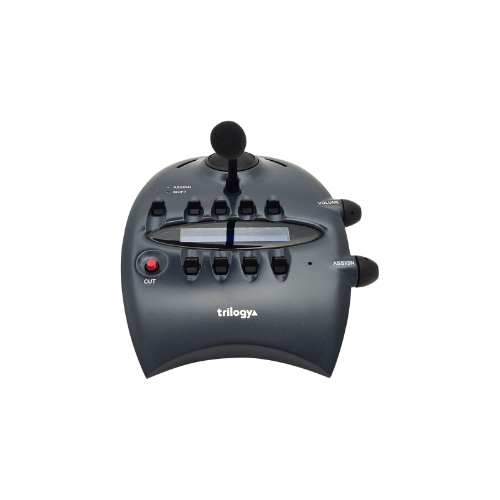

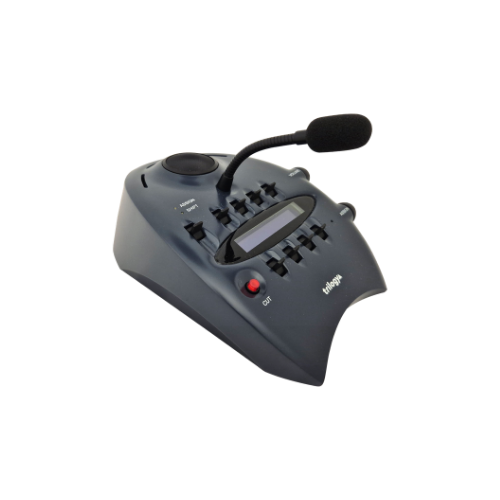

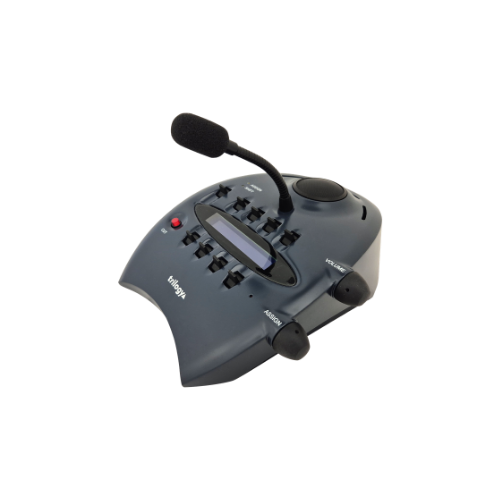

The 8-Key Desktop IP Lever Panel is a compact user panel designed for efficient communication within Mercury IP and Gemini intercom systems. It provides a flexible and user-friendly interface for operators in professional environments.

Functionality

Equipped with 8 dual-action lever keys, the panel allows quick access to communication channels. The shift function expands usability, enabling up to 32 total key assignments across multiple pages.

Integration

The panel connects via IP to Mercury Interface Units or Gemini matrix systems, allowing seamless communication across networked environments.

User Experience

With a built-in speaker, 130mm gooseneck microphone, and headset support, the panel offers multiple communication methods. It supports both push-to-talk and hands-free operation for flexible usage.
