Purpose-Built Onboard Monitoring for Live Multicam

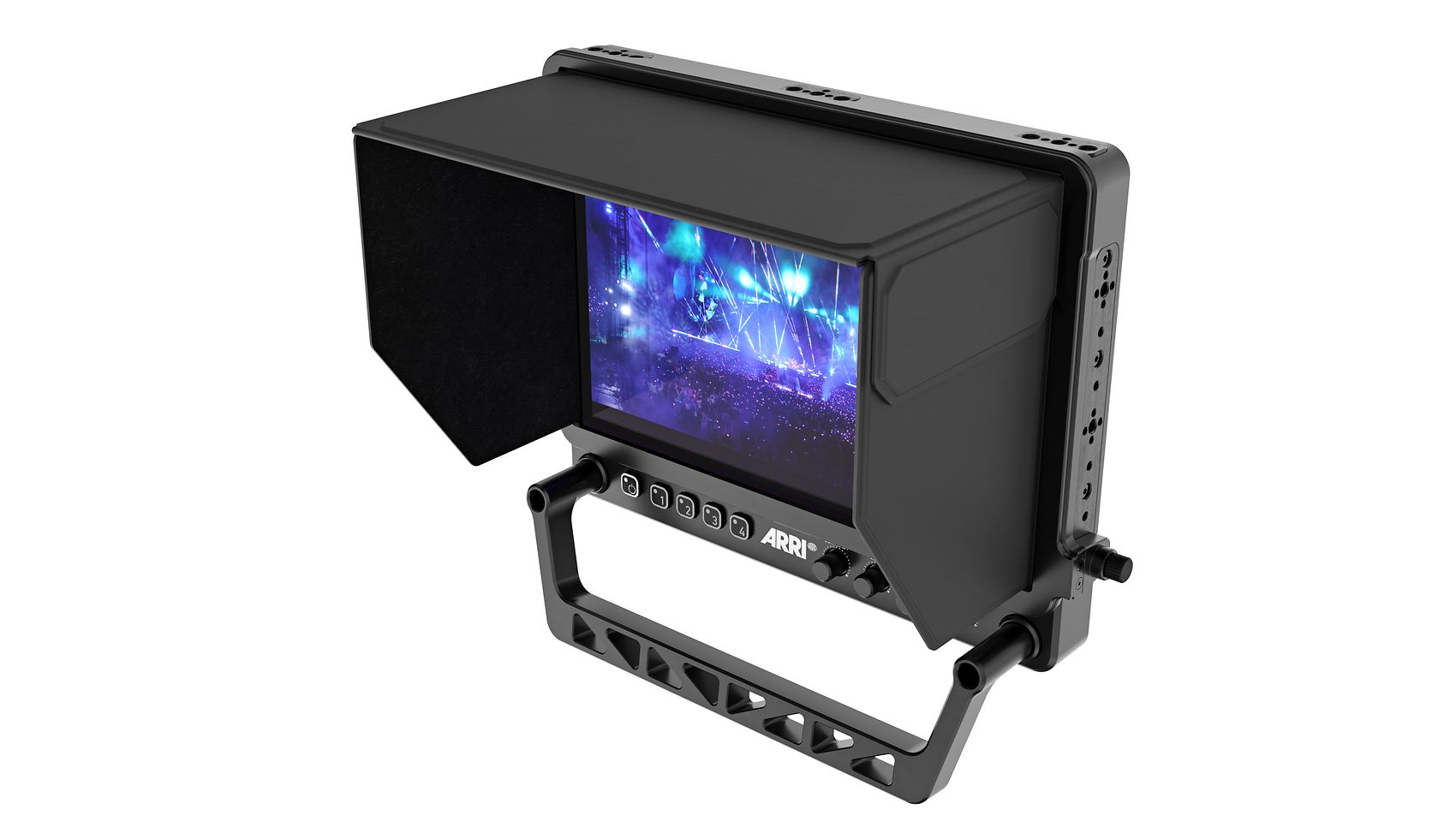

The ARRI Live Production Monitor LPM-1 is a 10-inch high-bright monitor designed specifically for the ALEXA 35 Live and Live Production System LPS-1. Pushing up to 1500 nits of luminance, it provides camera operators with accurate image display in direct sunlight or bright studio environments. Connecting via the ARRI VF interface, it routes both camera SDI signals while keeping the physical SDI outputs on the camera body completely open for down-stream broadcast equipment.

Intuitive Tactile Controls & Advanced Image Tools

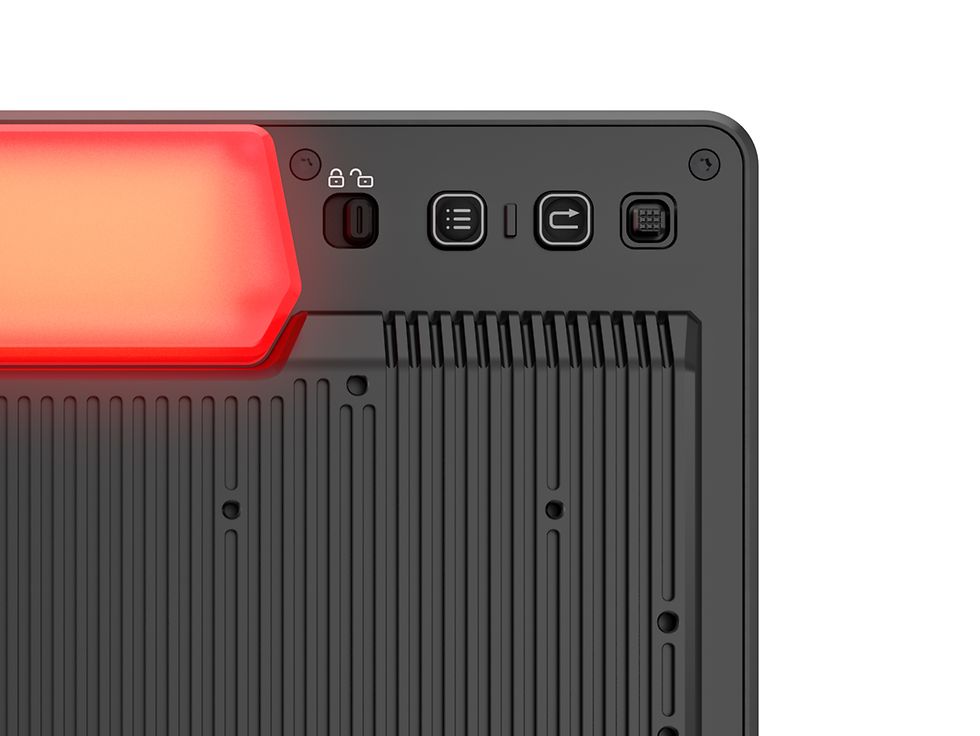

Engineered for rapid live-environment adjustments, the LPM-1 combines touchscreen operation with four front-facing rotary knobs for instant control over contrast, color, brightness, and peaking. Operators can quickly toggle monitoring visual aids—including Waveform, Vectorscope, Zebra, False Color, and Mono W/R/G/B overlays—directly over the live feed. Dedicated input-switching hardware buttons ensure fast toggling between camera feeds and return program video.

Studio-Grade Tally, Rigging, and Power Options

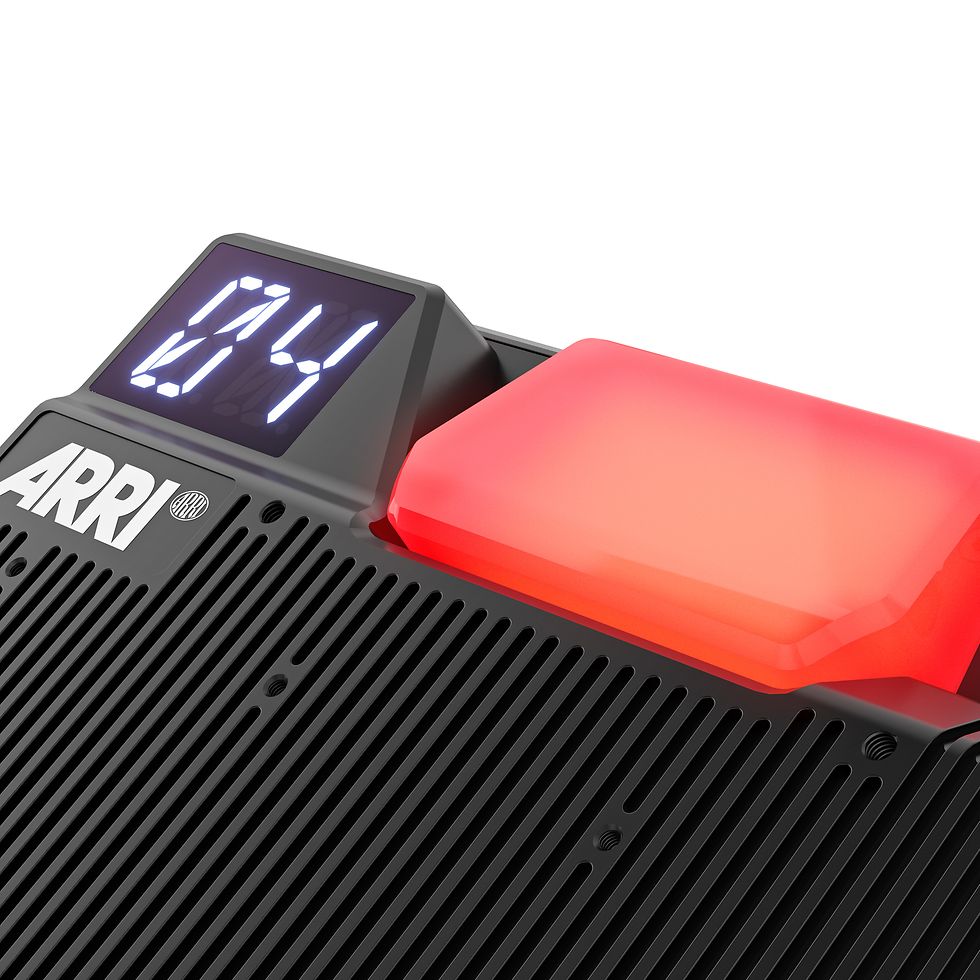

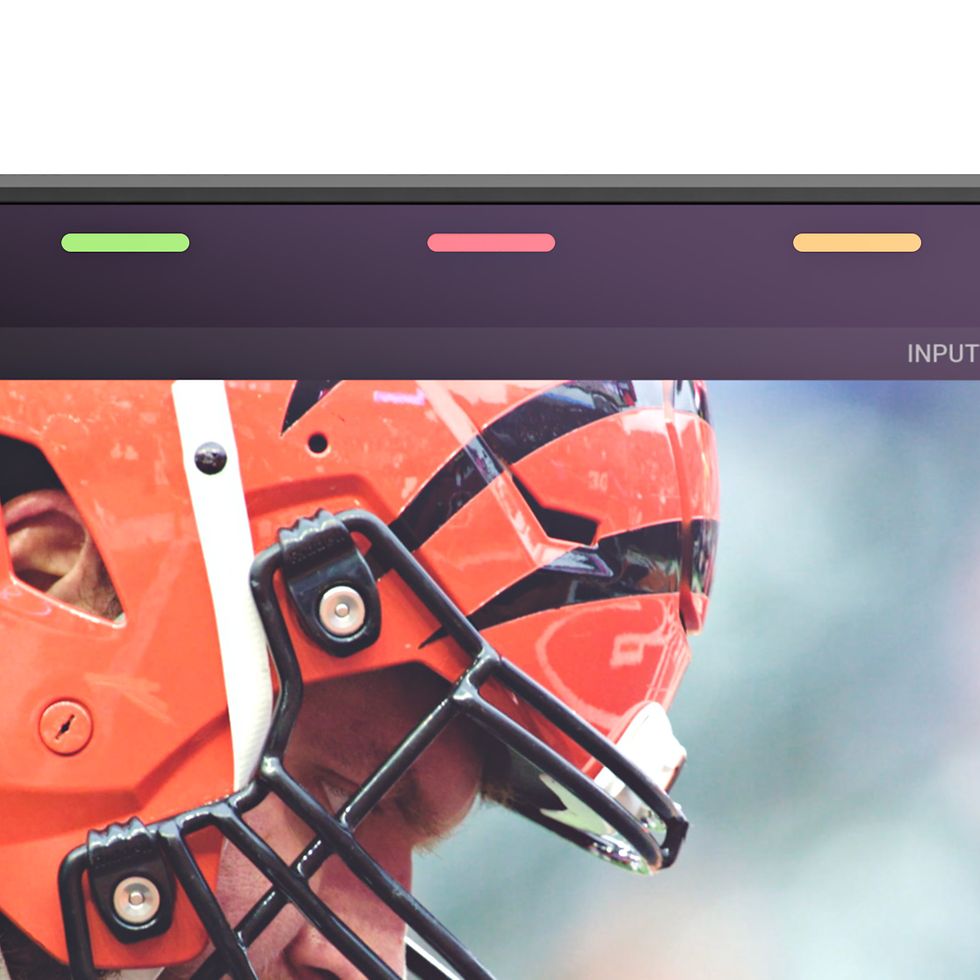

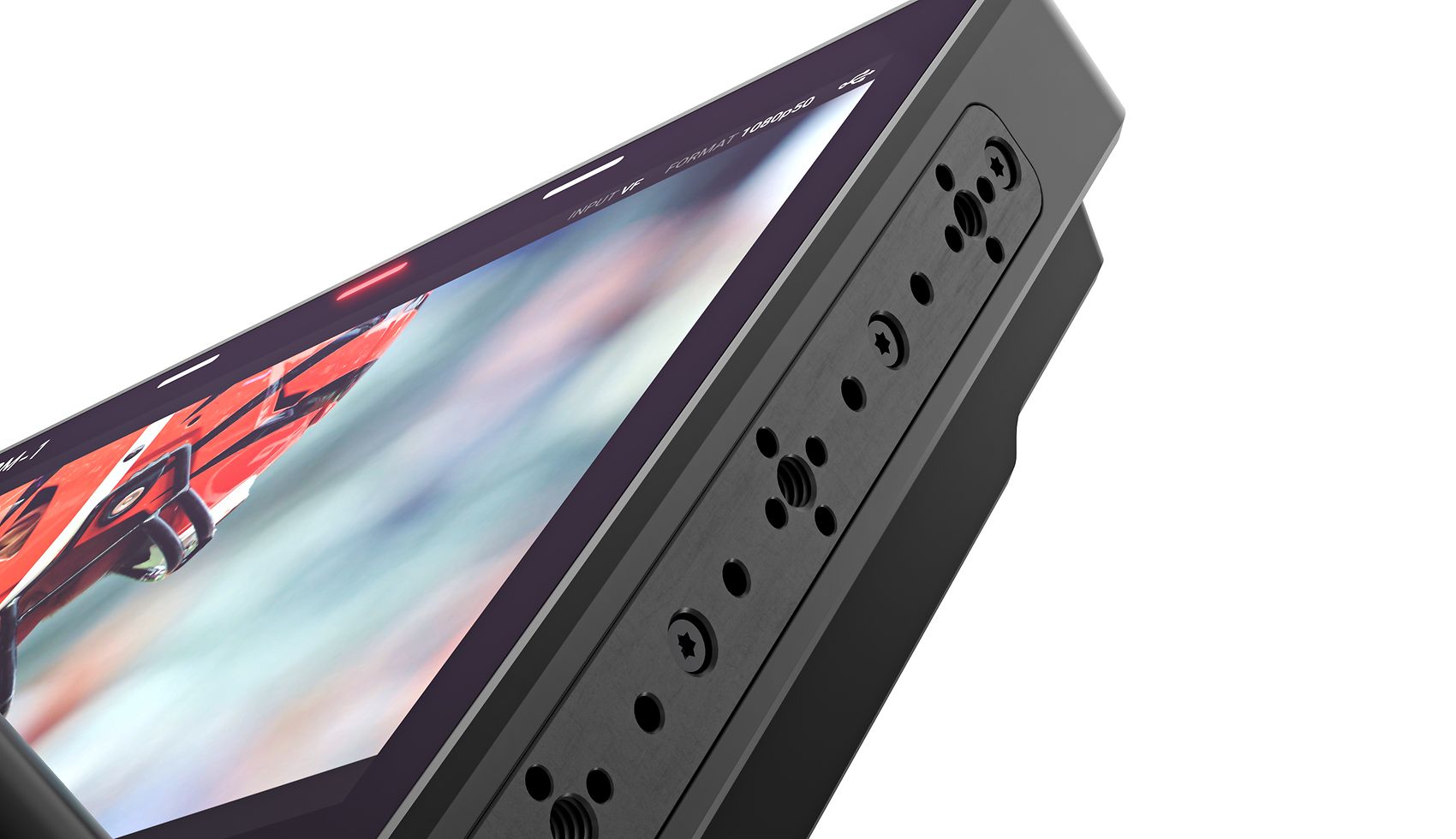

The LPM-1 incorporates three physical operator tally lights (red, green, yellow), a 3-color rear talent tally, and a digital camera number display to streamline multi-camera direction. Its anodized aluminum chassis is encased with 12x 1/4" ARRI Pin-Lock threads, VESA 100 mounting, and support for the Monitor Yoke Support MYS-2 NATO rail system. Built-in M3 interfaces allow direct mounting of micro V-Mount or Anton Bauer battery plates for versatile power delivery.
