The New Interface for High-Performance Digital Cinema

The ARRI LPL (Large Positive Lock) Mount is the first universal lens mount designed entirely from the ground up for the demands of high-resolution digital capture. While the classic film-era PL mount was restricted by mechanical mirror shutters and smaller film formats, the LPL mount breaks these boundaries. By shortening the flange focal distance to 44 mm and expanding the inner diameter to 62 mm, it gives optical designers the physical freedom to craft smaller, faster, and optically superior cinema glass.

Telecentric Optical Precision Across the Entire Sensor

To achieve peak performance on modern digital sensors, light must strike the photosites as close to perpendicular as possible. Steep light angles from non-telecentric lenses can result in photosite crosstalk, sensor-edge aberrations, and poor absorption through optical low-pass or spectral filter packages. The wider opening of the LPL mount permits larger rear lens elements, resulting in a telecentric optical design that ensures consistent, pristine image quality from the center of the frame all the way to the extreme corners.

Universal Standard and Broad Camera Compatibility

ARRI has openly shared LPL specifications to establish a unified standard across the motion picture industry. Not only are LPL mounts available for ARRI's core lineup—including the ALEXA 35, ALEXA Mini LF, ALEXA LF, AMIRA, and ALEXA 65—but third-party options also bring the legendary signature look to RED, Sony Venice, and Phantom cameras. Additionally, mirrorless adapters allow LPL lenses to be adapted directly to standard E-mount, L-mount, RF-mount, and Z-mount systems.

Future-Proof Design with Backward Compatibility

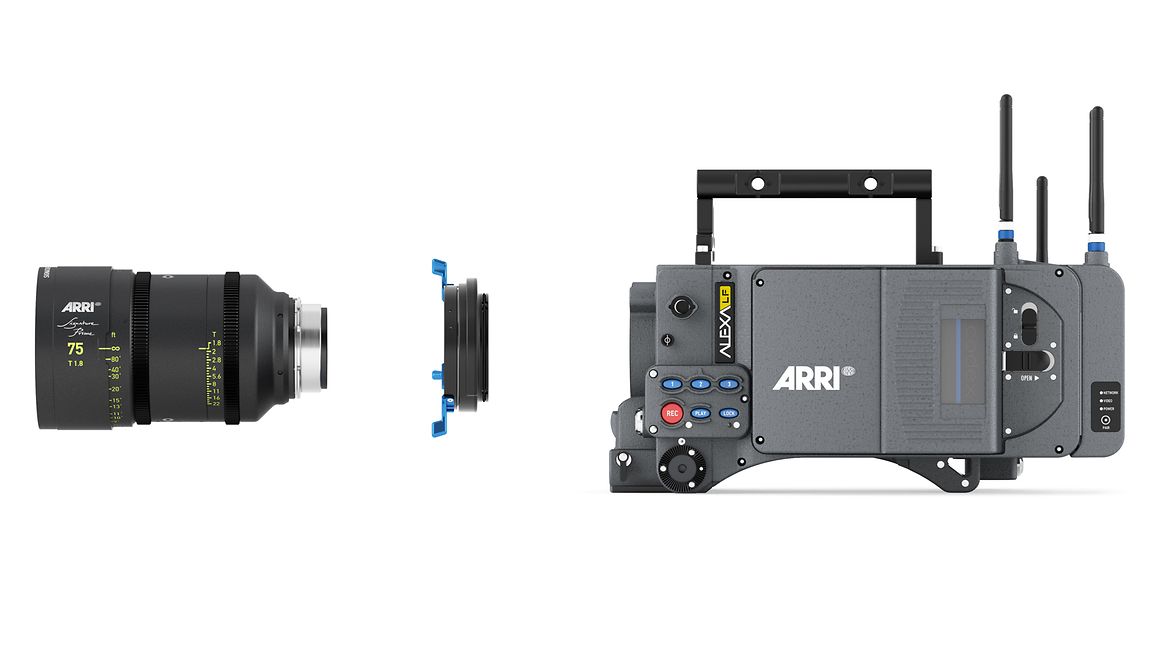

To protect your existing inventory, the LPL mount interfaces seamlessly with the robust, tool-free PL-to-LPL adapter. This adapter enables you to quickly lock down standard Super 35 or full-frame PL glass while maintaining full LDS-1 and /i metadata connectivity. Whether you are shooting with ultra-modern ARRI Signature Primes and Zooms natively, or pairing legacy PL lenses on a modern digital sensor, the ARRI LPL mount represents the premier, high-precision connection for digital cinematography.
