Bridging the Gap in High-Output Daylight

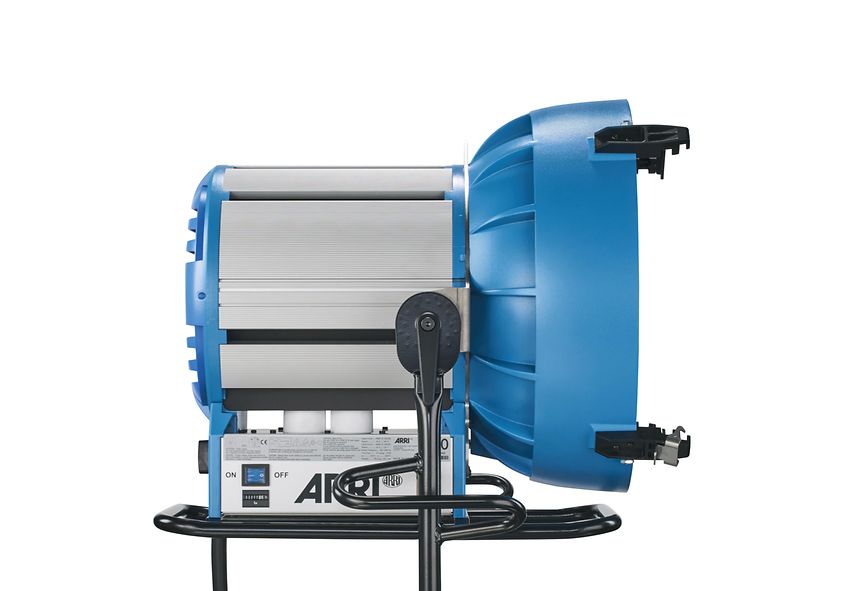

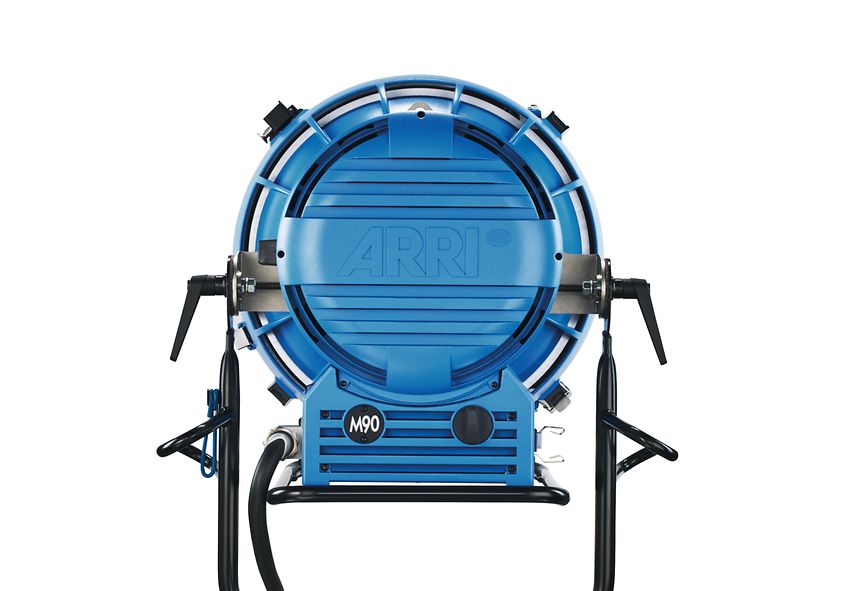

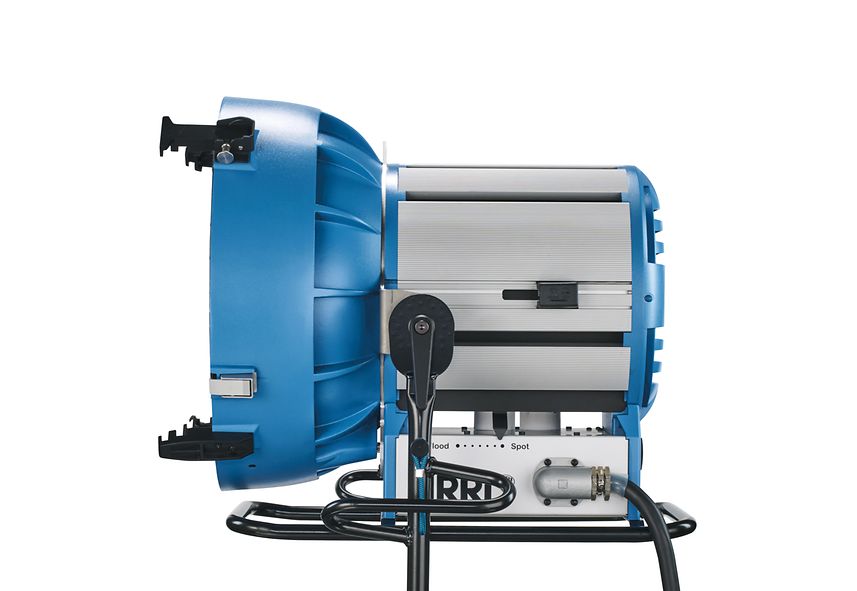

The ARRI M90 sits perfectly between the M40 and the flagship ARRIMAX 18/12, redefining high-output daylight performance for major motion pictures, television, and commercial productions. By pairing ARRI's patented MAX Technology reflector with a 9,000 W HMI single-ended lamp, the M90 delivers a light output that matches a traditional 12 kW PAR fixture while retaining the compact physical dimensions and lightweight handling of an ARRISUN 60 (6 kW PAR).

Streamlined Workflows & Dual-Wattage Versatility

By eliminating heavy, easily breakable drop-in spread lenses, the M90 simplifies set workflows. Lighting technicians can continuously adjust the beam angle from a focused 15° spot to a broad 49° flood using the external focus mechanism. The optical engine is optimized so that both 9,000 W and 6,000 W HMI lamps achieve flawless beam quality, allowing crews to scale power consumption as needed while relying on standard 6 kW head cables.

Advanced Power Delivery & Studio Rigging

When paired with the ARRI EB 6/9 HS AutoScan ballast featuring Compensation for Cable Losses (CCL), the M90 guarantees uncompromised voltage and color stability over extended cable runs. Built with dual-sided heavy-duty tilt locks, an IP23 weather rating, and advanced cross-cooling ventilation, the M90 is built to withstand extreme rigging angles and demanding location environments worldwide.
