Next-Generation All-Weather Modular LED

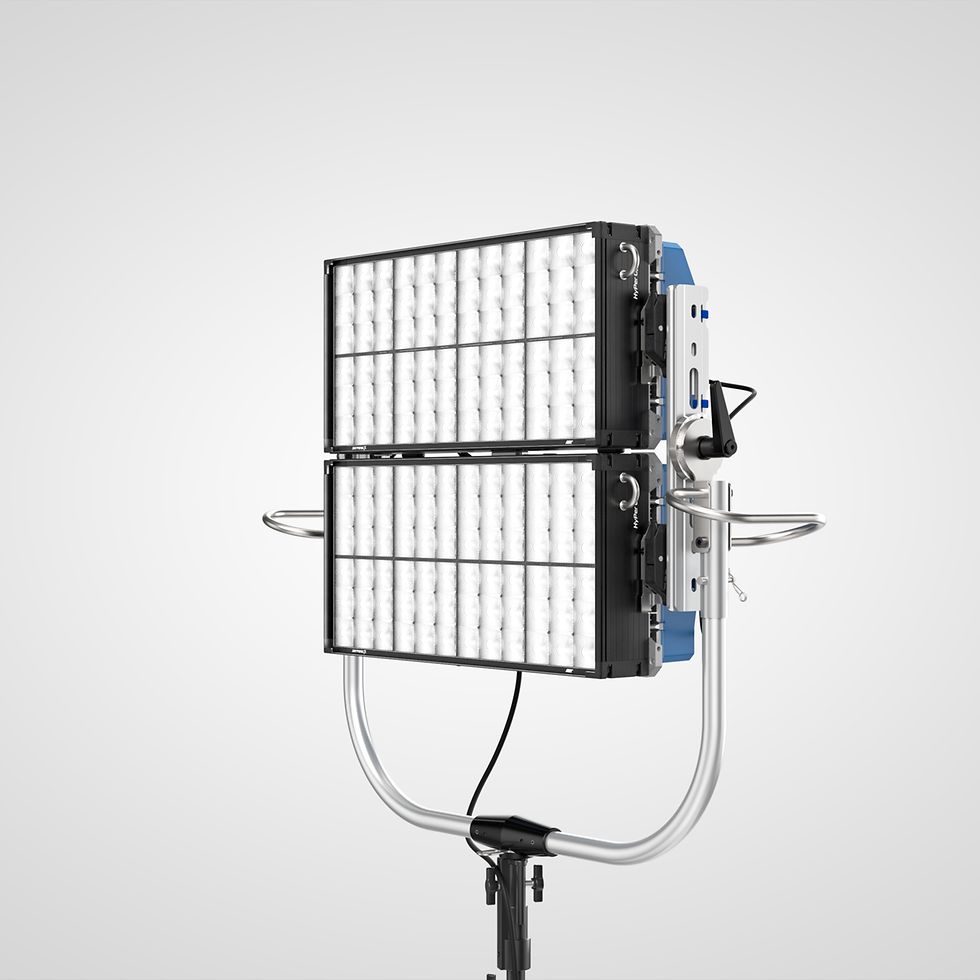

The ARRI SkyPanel X is a revolutionary, IP66-rated modular LED system engineered for both native soft and high-punch hard light applications across film sets, broadcast studios, and virtual production stages. Offering incredible versatility, the SkyPanel X scales seamlessly from a standalone 2x1 panel (X21) into larger 2x2 (X22) or 2x3 (X23) arrays using tool-less quick-lock modular frames.

Unrivaled Punch, Range, and Beam Quality

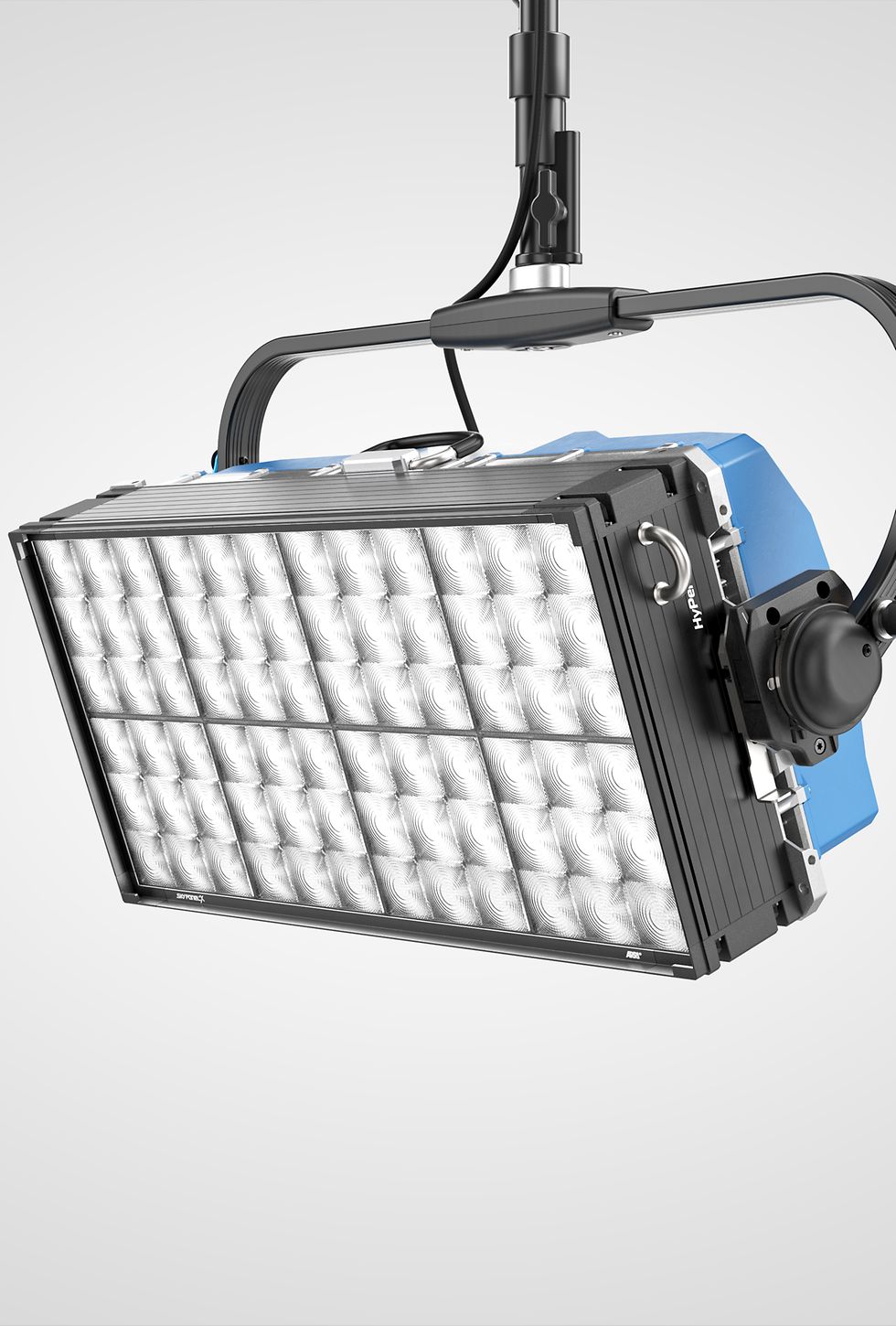

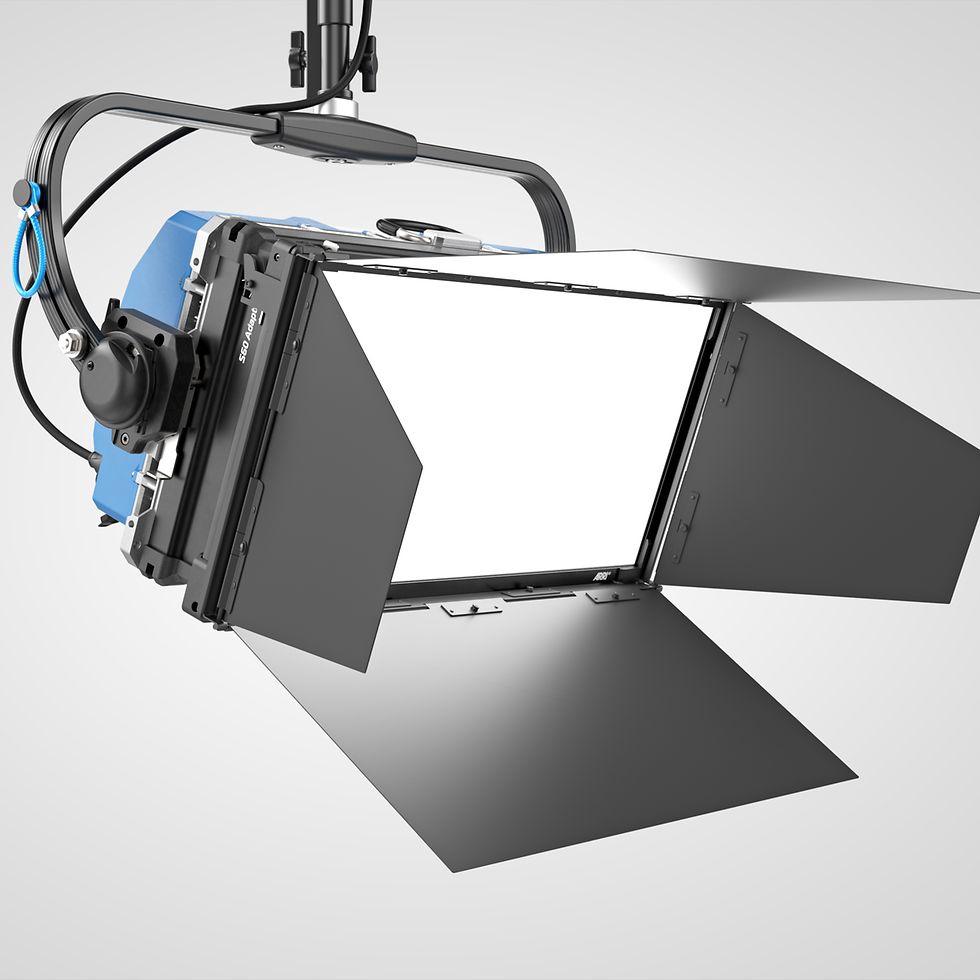

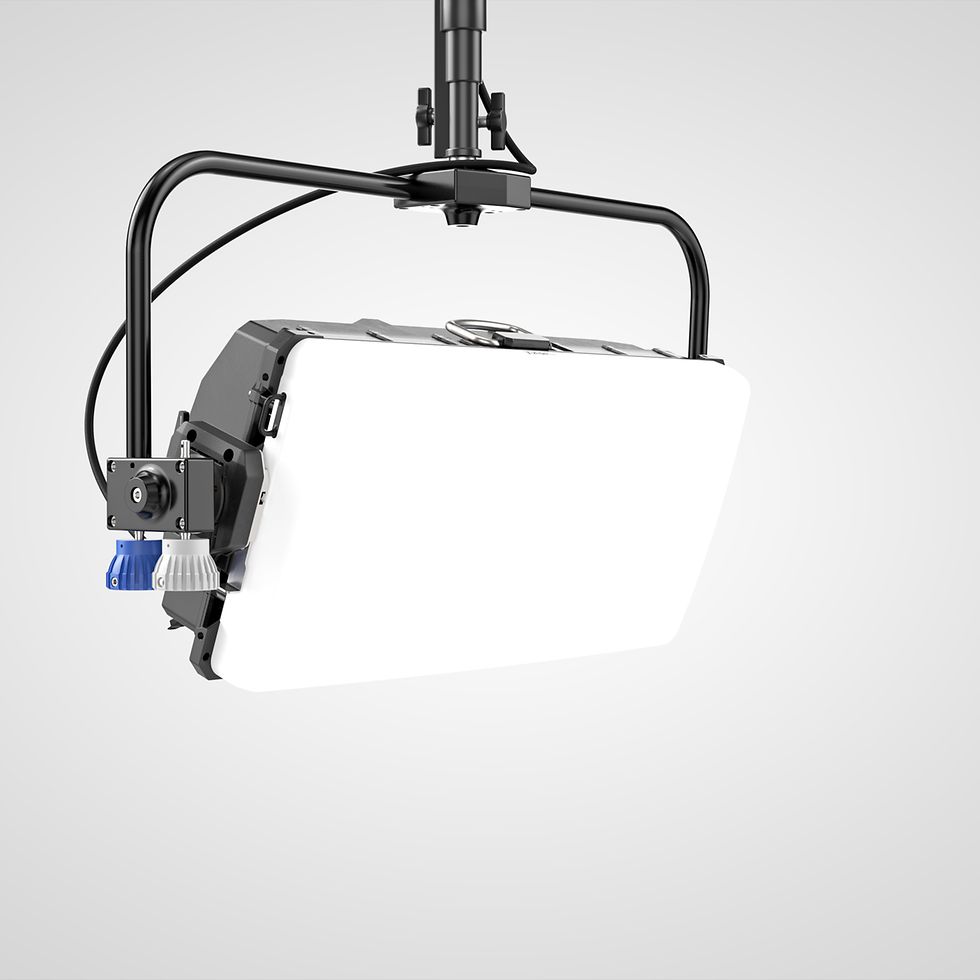

Driven by ARRI’s RGBACL full-spectrum light engine, the SkyPanel X provides extraordinary light output and color accuracy across an unprecedented CCT range of 1,500K to 20,000K. For long-throw key lighting, bouncing, or window penetration, attaching the HyPer Optic beam modifier converts the fixture into a high-intensity hard light with a tight, rounded beam. When soft light is required, swap to the X21 Dome or use the S60 Adapter to retain full compatibility with classic SkyPanel S60-C accessories.

Advanced Workflows & Digital Integration

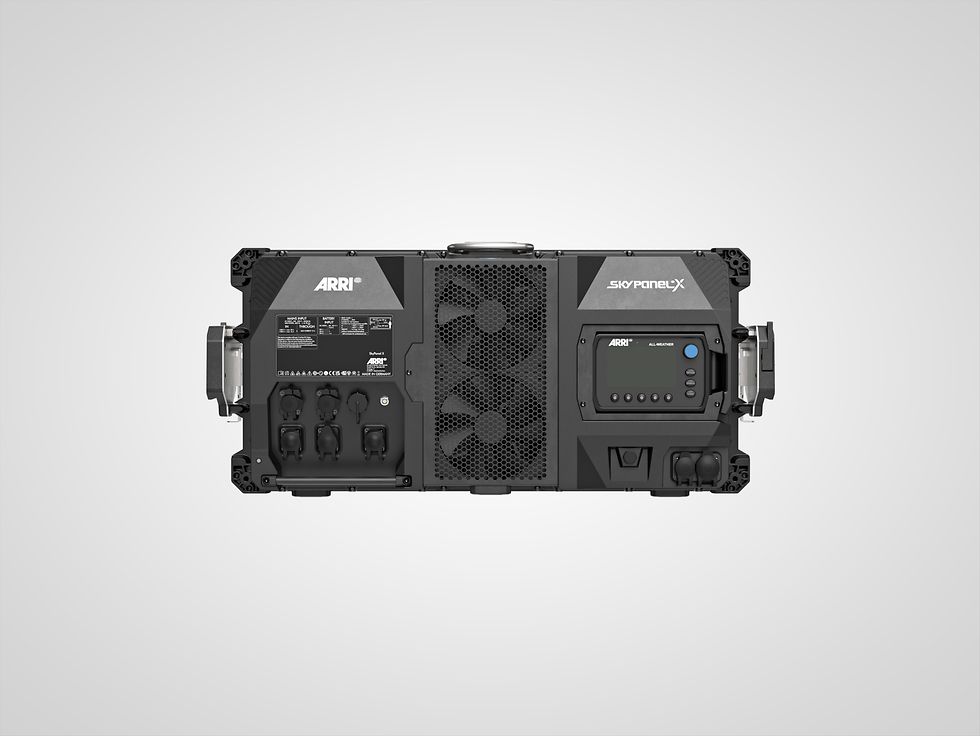

Powered by ARRI LiOS3, the SkyPanel X simplifies multi-panel control by allowing entire X22 or X23 configurations to run under a single unified DMX profile. In addition to local control via the detachable ALL-WEATHER Control Panel, lighting technicians can manage fixtures wirelessly through LumenRadio CRMX, Ethernet (Art-Net/sACN), or Bluetooth using the ARRI LiCo App. An Unreal Engine Digital Twin is also available for real-time virtual production pre-visualization.
