Double the Output, Unmatched Versatility

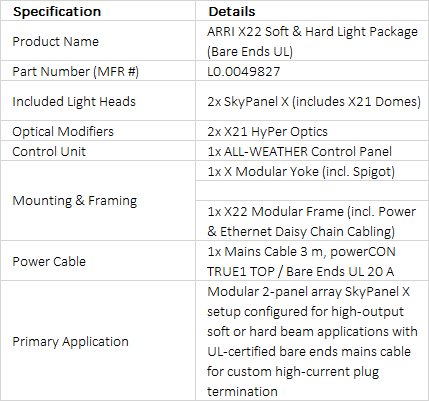

The ARRI SkyPanel X22 Soft & Hard Light Package with Bare Ends UL Cable (L0.0049827) expands your lighting capabilities into a high-output 2x2 modular array. By joining two IP66-rated SkyPanel X units inside the heavy-duty X22 Modular Frame, this turnkey kit produces double the brightness and surface area of a single panel, making it an extraordinary solution for large film sets, broadcast studios, and outdoor location shoots.

Instant Hard & Soft Light Adaptation

Out of the box, the X22 package includes optics for both soft and hard light workflows. Install the two X21 Domes to transform the array into a massive, wrapped soft source with smooth shadow roll-off, or attach the two X21 HyPer Optics for an intense, long-throw beam capable of punching through windows, simulating sunlight, or filling large bounce cards.

Streamlined Setup & North American Studio Integration

Designed for fast-paced setups, the kit includes internal Power and Ethernet daisy-chain cabling, allowing both panels to share power and data cleanly within the frame. The entire dual-panel array is powered using a single 3-meter powerCON TRUE1 TOP to open bare ends mains cable (20 A UL)—ideal for custom plug installation or direct distribution box integration—and controlled as one unified fixture through the detachable ALL-WEATHER Control Panel or over wireless CRMX / Ethernet networks using ARRI’s LiOS3 software.
