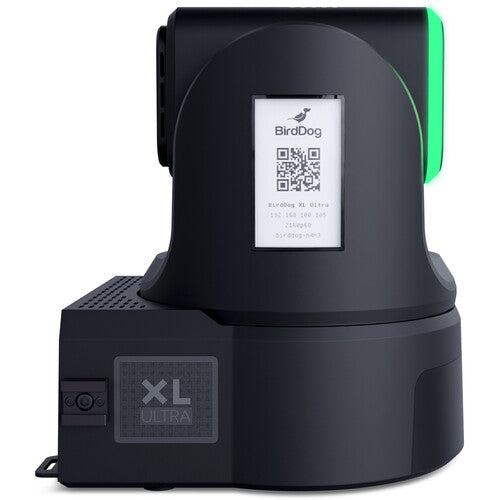

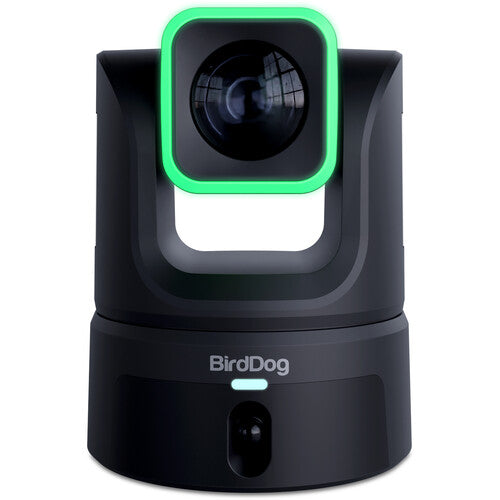

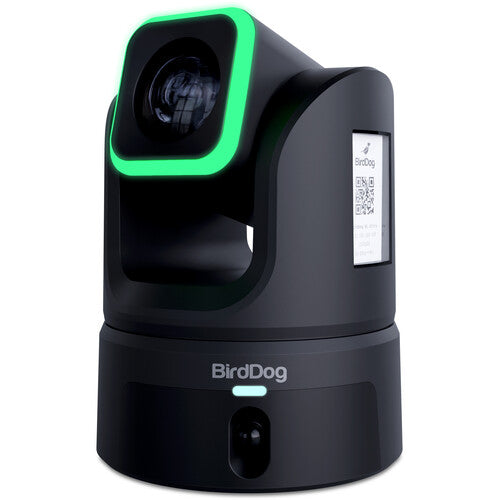

BirdDog XL Ultra PTZ Camera with 20x Optical Zoom
Product
Warranty
Support
Delivery
Key Features
- Primary Camera with 4/3" Image Sensor
- Secondary Panoramic Camera 1/1.8" Sensor
- Dual 4K60 Simultaneous Output

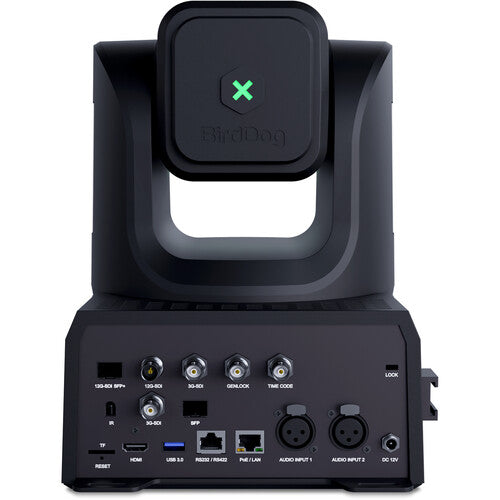

- 12/3G-SDI, HDMI & USB-C Connectivity
- AI Tracking Engine, SFP+ & SFP Ports
- 1GbE Adaptive Ethernet Port with PoE++
- High-Bandwidth NDI with SpeedHQ
- NDI HX3/HX2, SRT, RTSP & RTMP Encoding
- NDI HX3/HX2 Decoding up to 1080p60
- Balanced XLR Audio Connectivity
Features & Specifications
Product Overview +
The New Benchmark for Cinematic PTZ Production
The BirdDog XL Ultra is a monumental leap in PTZ technology, bridging the gap between automated cameras and cinema-grade imaging. By utilizing a large 4/3" sensor, the XL Ultra delivers the "bokeh" and dynamic range typically reserved for high-end digital cinema cameras. This makes it the ultimate choice for virtual productions, high-end houses of worship, and premium live events where image texture and quality are paramount.
Independent Dual-Stream Workflow
Innovation is at the heart of the XL Ultra's dual-lens design. You can stream Full NDI for the PTZ close-up while simultaneously sending an SRT or HDMI feed of the 100° panoramic wide shot. This allows a single camera unit to act as two separate sources in your switcher, providing a fail-safe wide-angle reference while the AI tracking engine follows the talent—effectively doubling your production value from a single mount point.
Broadcast-Ready Versatility
Built for the most demanding technical environments, the XL Ultra offers a range of color profiles tuned to match industry-standard production cameras. Whether you are integrating it into a multi-camera 12G-SDI infrastructure or a cutting-edge NDI IP workflow, the XL Ultra sits naturally alongside established broadcast brands. With PoE++ support and SFP+ fiber connectivity, it is as easy to install as it is powerful to operate.

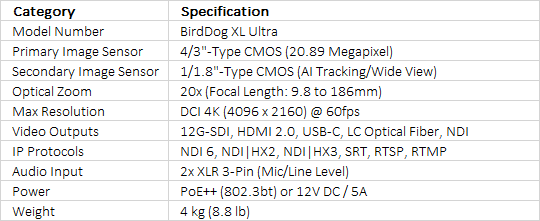

Technical Specifications +
technical specifications
