Overview

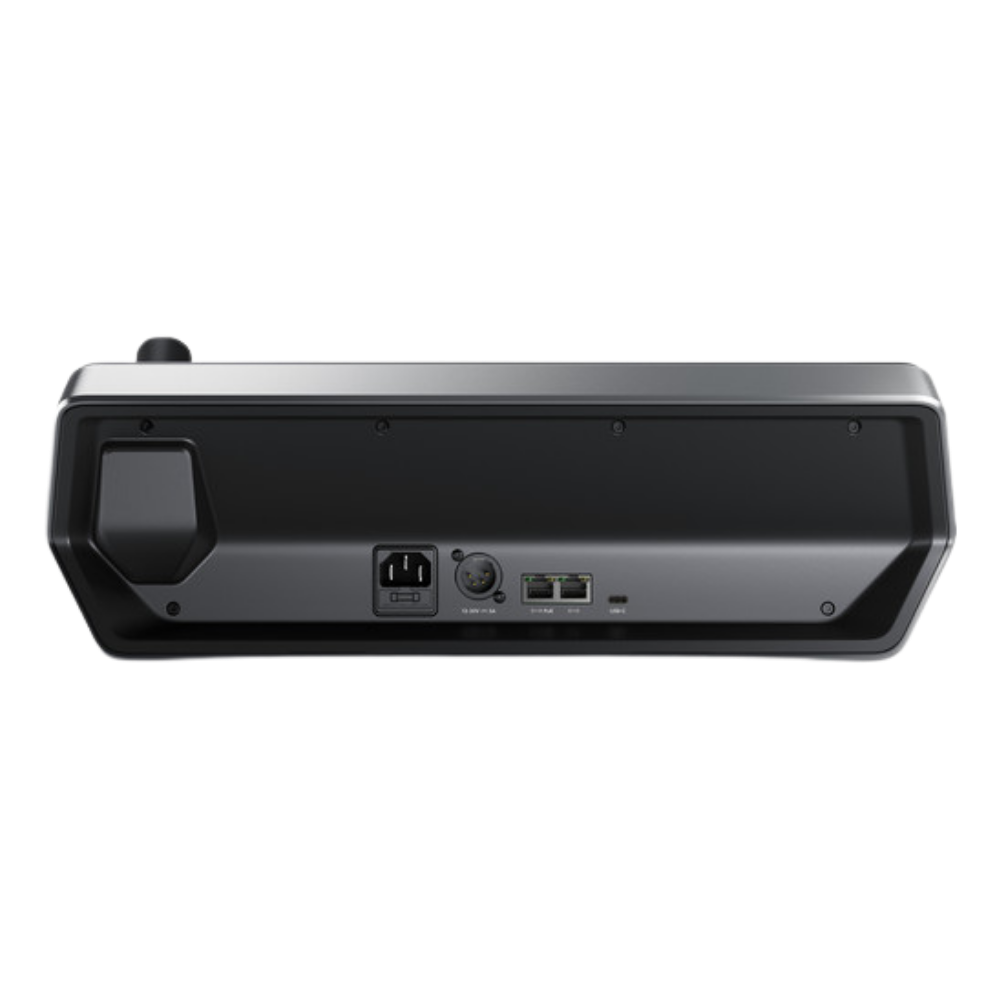

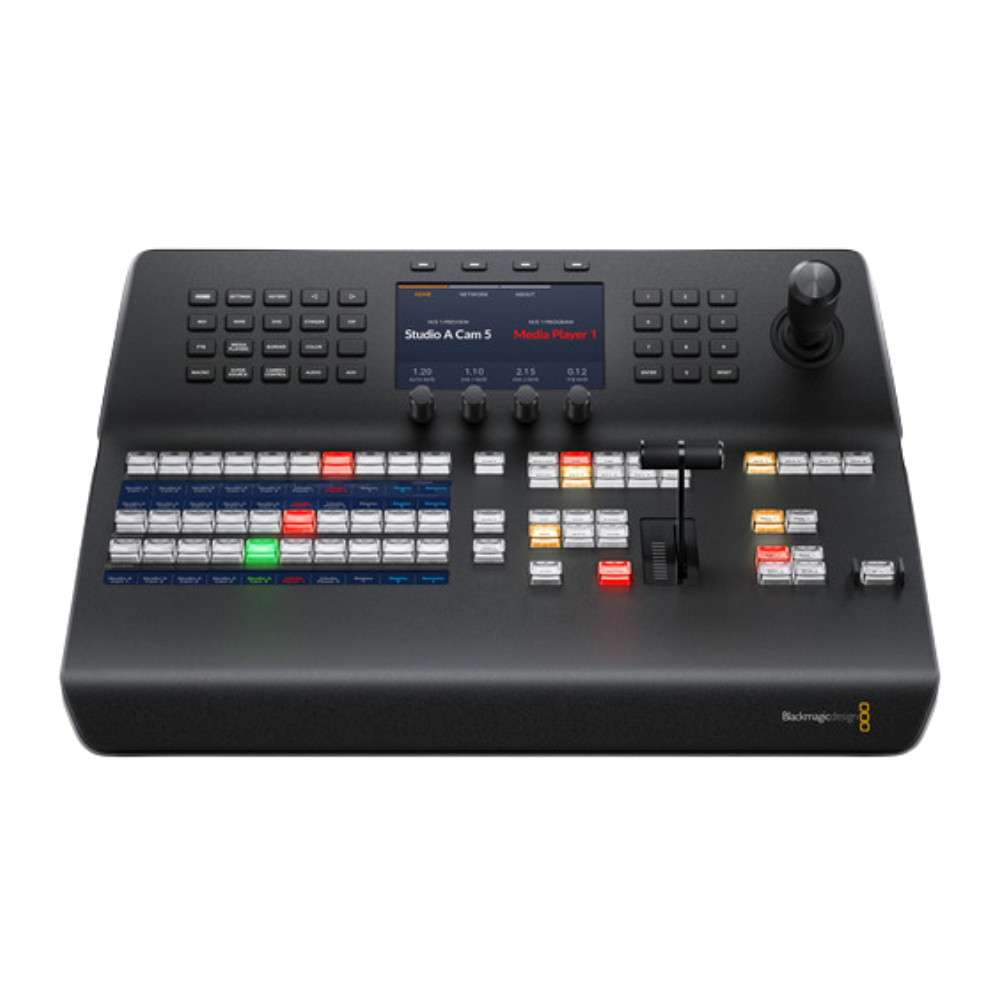

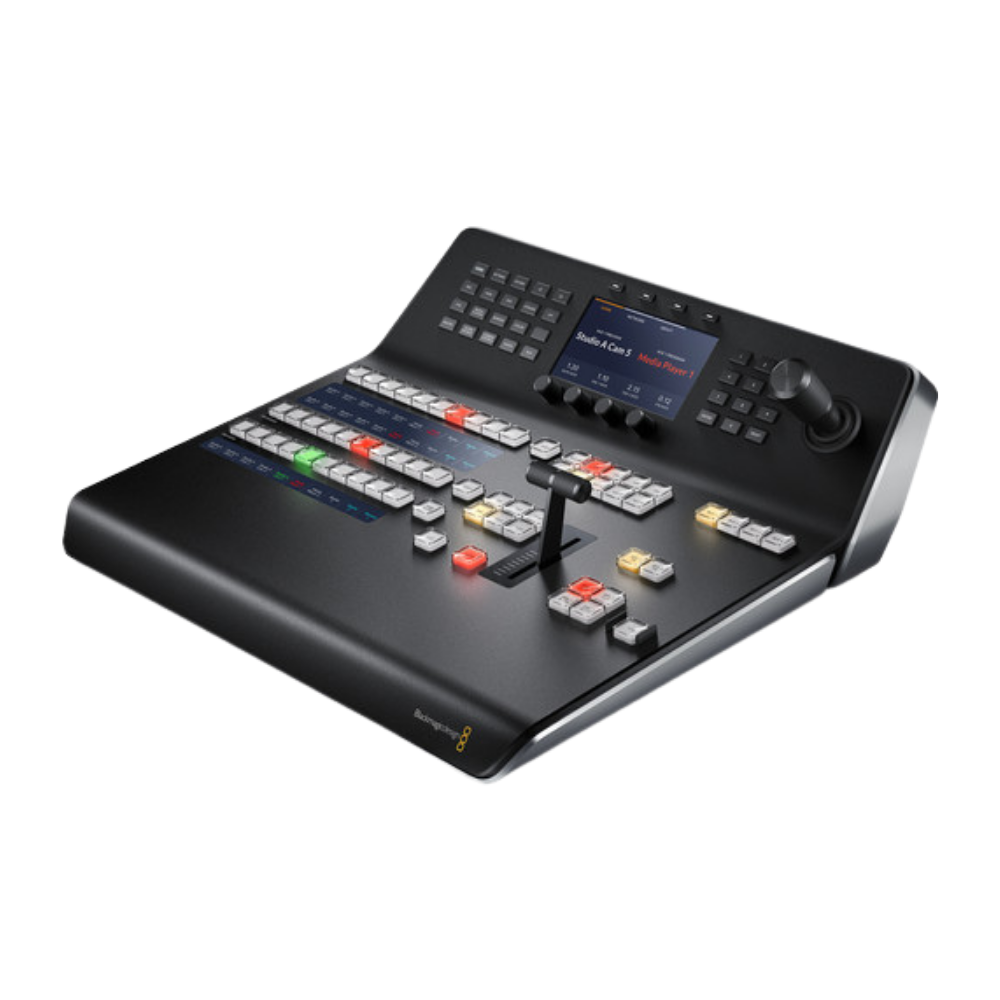

The Blackmagic Design ATEM 1 M/E Advanced Panel 10 is a professional hardware control surface designed for Blackmagic ATEM live production switchers. It provides tactile, broadcast-style operation with dedicated source selection, transition controls, macros, DVE positioning and system configuration. B&H identifies this specific product as manufacturer model SWPANELADV1ME10.

Performance / Features

The panel provides 10 direct crosspoints and 20 shifted crosspoints, allowing access to up to 20 sources. Programmable tri-color illuminated buttons incorporate LCD labeling, while three LCD menu displays provide access to switcher settings and production functions.

A professional weighted T-bar provides manual transition control, while the integrated 3-axis joystick can be used for DVE positioning and compatible camera adjustments. Dedicated macro controls, a numeric keypad, destination bus and source select bus provide fast access to essential live production functions.

Applications / Integration

The ATEM 1 M/E Advanced Panel 10 is designed for broadcast studios, live events, OB systems, houses of worship, corporate AV and professional multi-camera production. It communicates with compatible ATEM switchers over Ethernet and can be integrated with additional ATEM control panels and computers.
