Overview

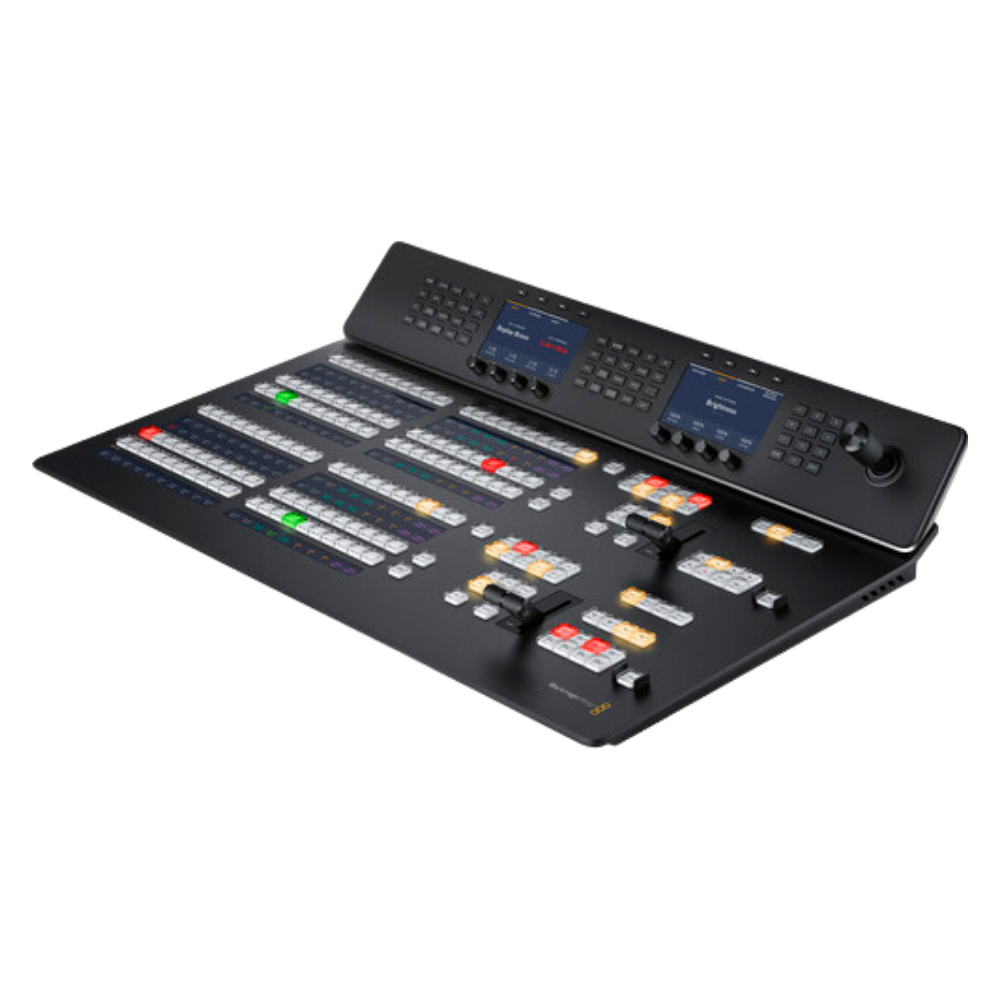

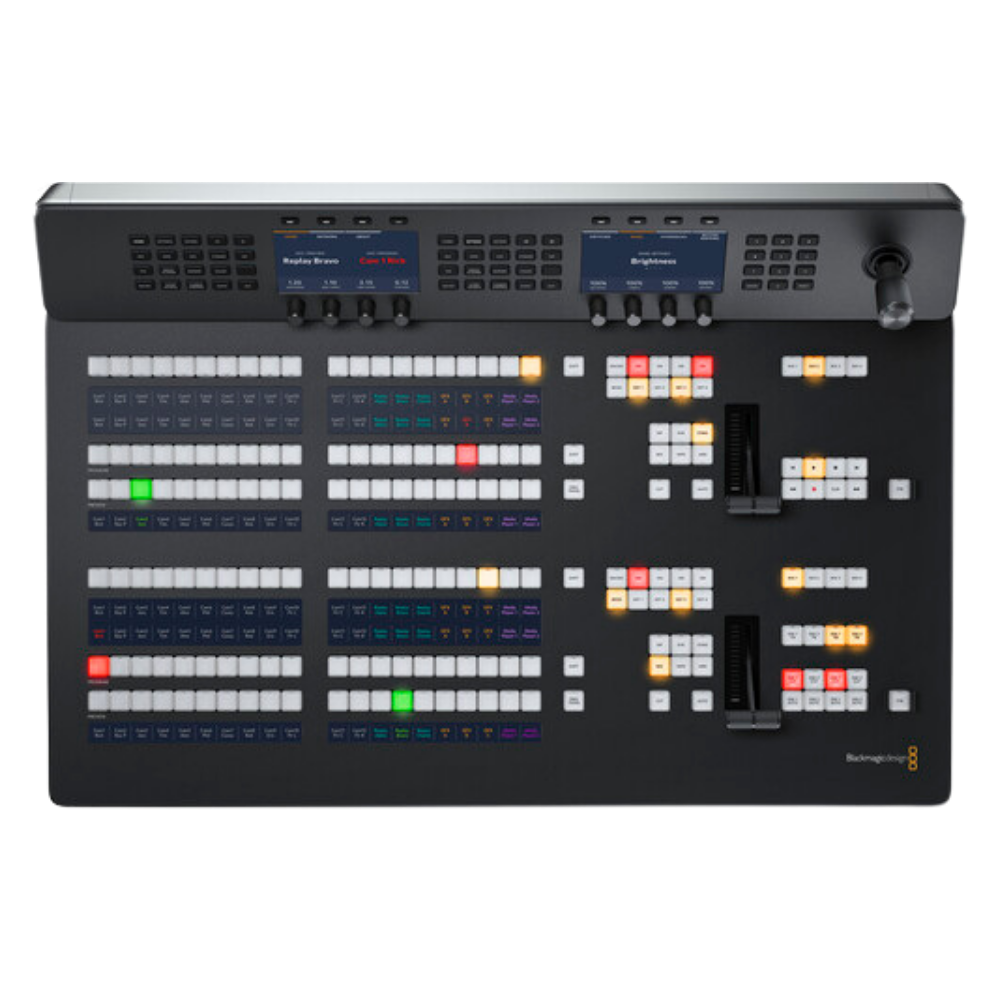

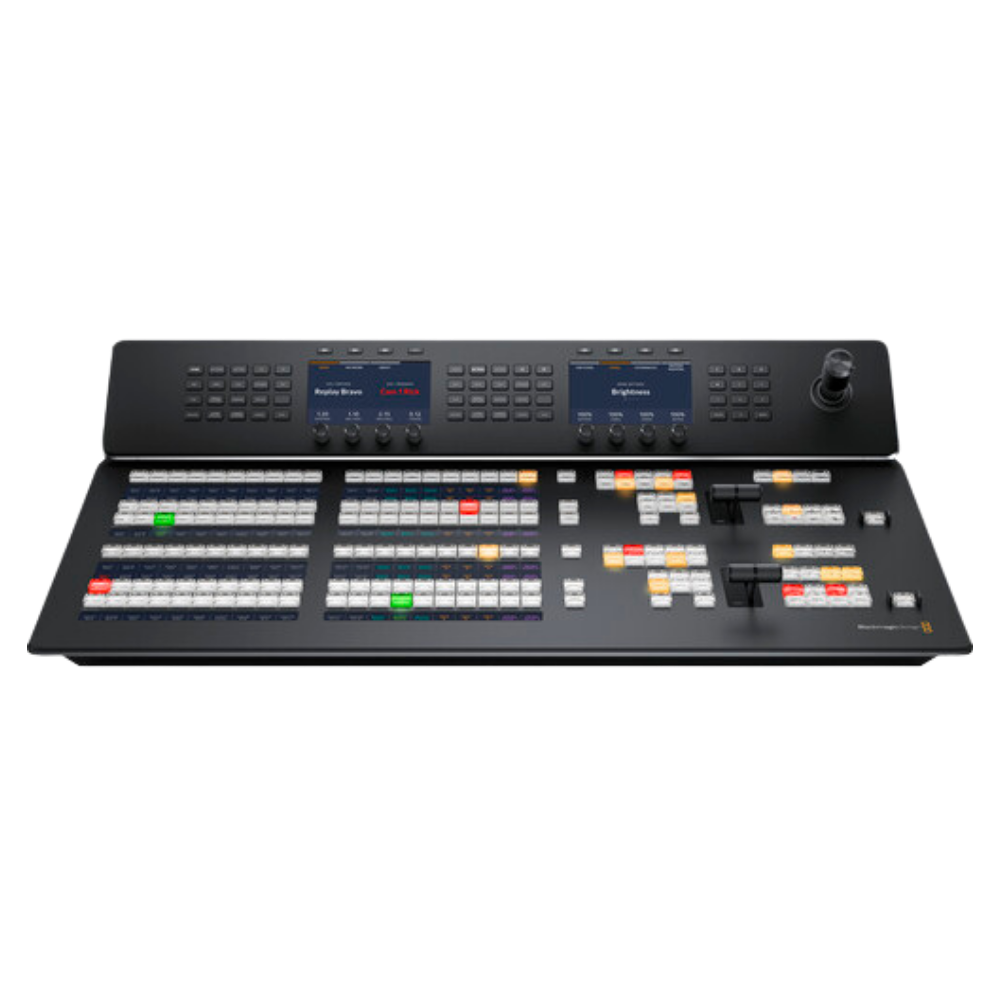

The Blackmagic Design ATEM 2 M/E Advanced Panel 20 is a professional hardware control surface for compatible ATEM production switchers. It features two independent M/E rows with 20 input buttons per row, giving operators fast tactile access to switching, transitions, keying, macros and other essential live production functions.

Performance / Features

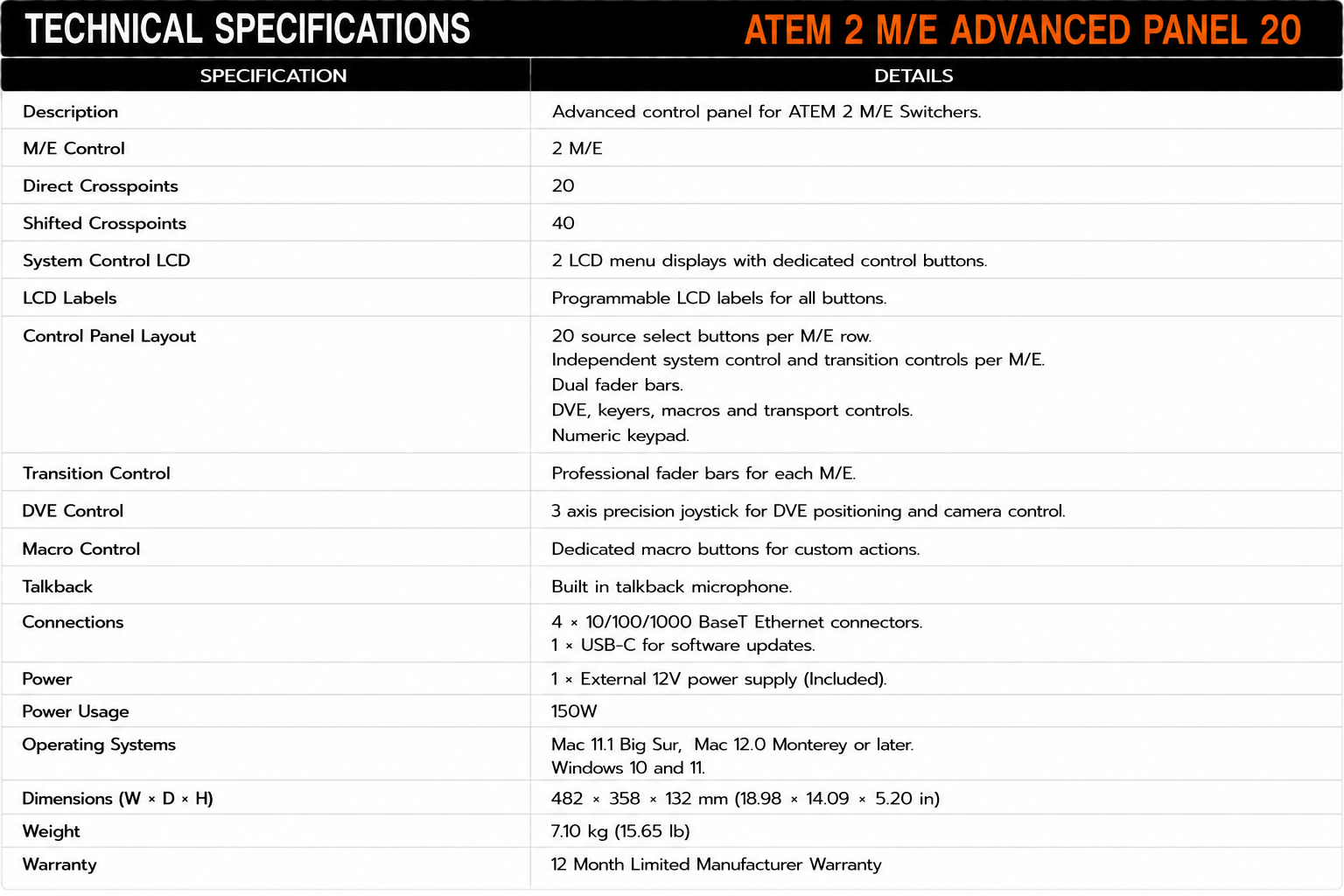

The panel provides 20 direct crosspoints and 40 shifted crosspoints, with tri-color illuminated buttons and LCD source labeling. Each M/E row includes independent system control, select bus, transition controls and a professional fader bar.

A 3-axis joystick provides precise DVE positioning and camera control, while dedicated macro buttons, transport controls and a numeric keypad provide direct access to commonly used production functions. Each row can also control additional M/Es when paired with larger compatible ATEM switchers.

Applications / Integration

The ATEM 2 M/E Advanced Panel 20 is designed for television studios, broadcast control rooms, live events, OB production and other professional multi-camera environments. Four Gigabit Ethernet connections allow integration with an ATEM switcher, additional control panels or computers, while USB-C is provided for firmware updates.
