Overview

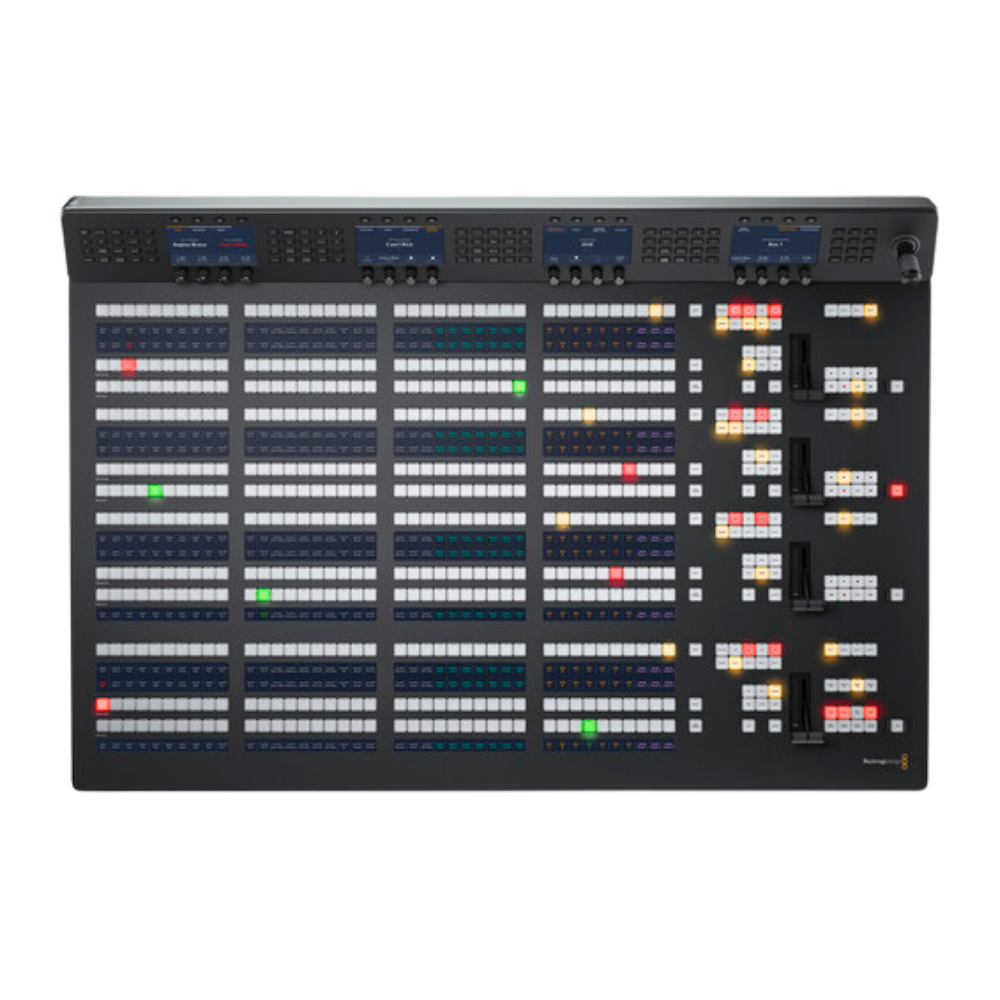

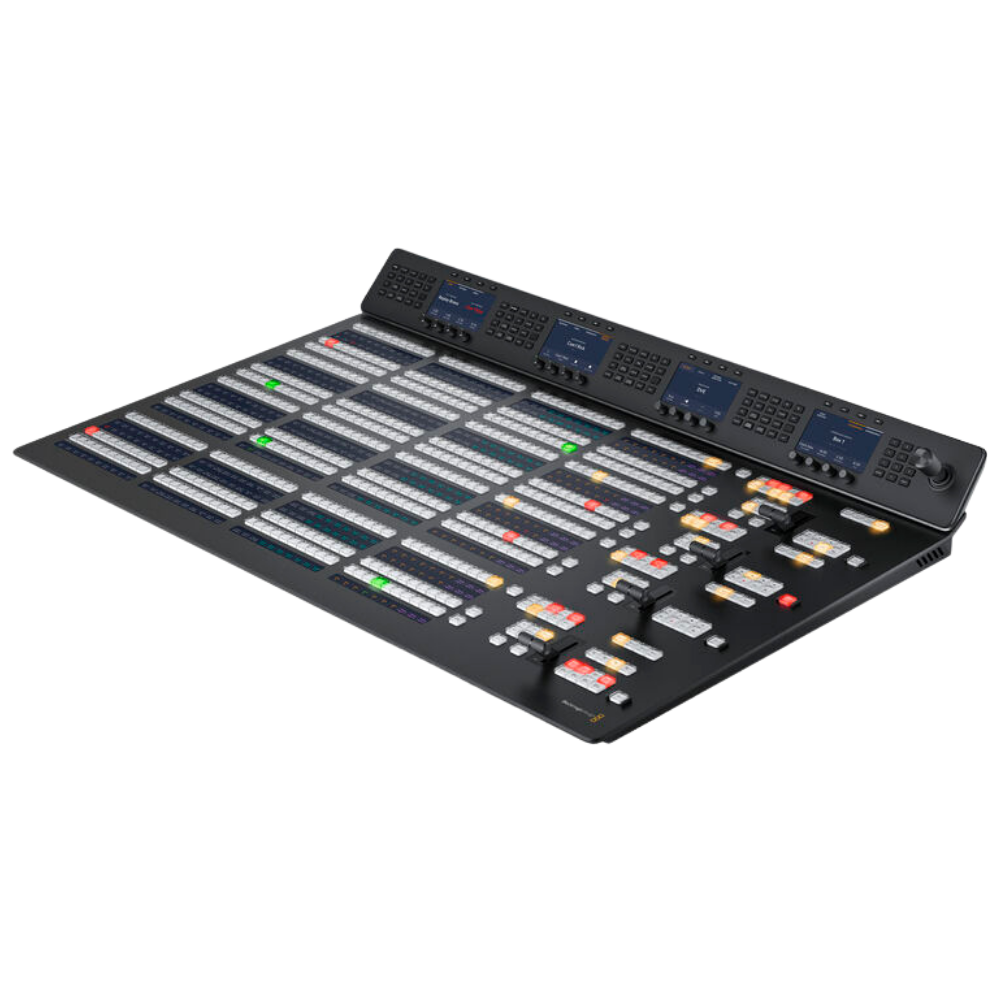

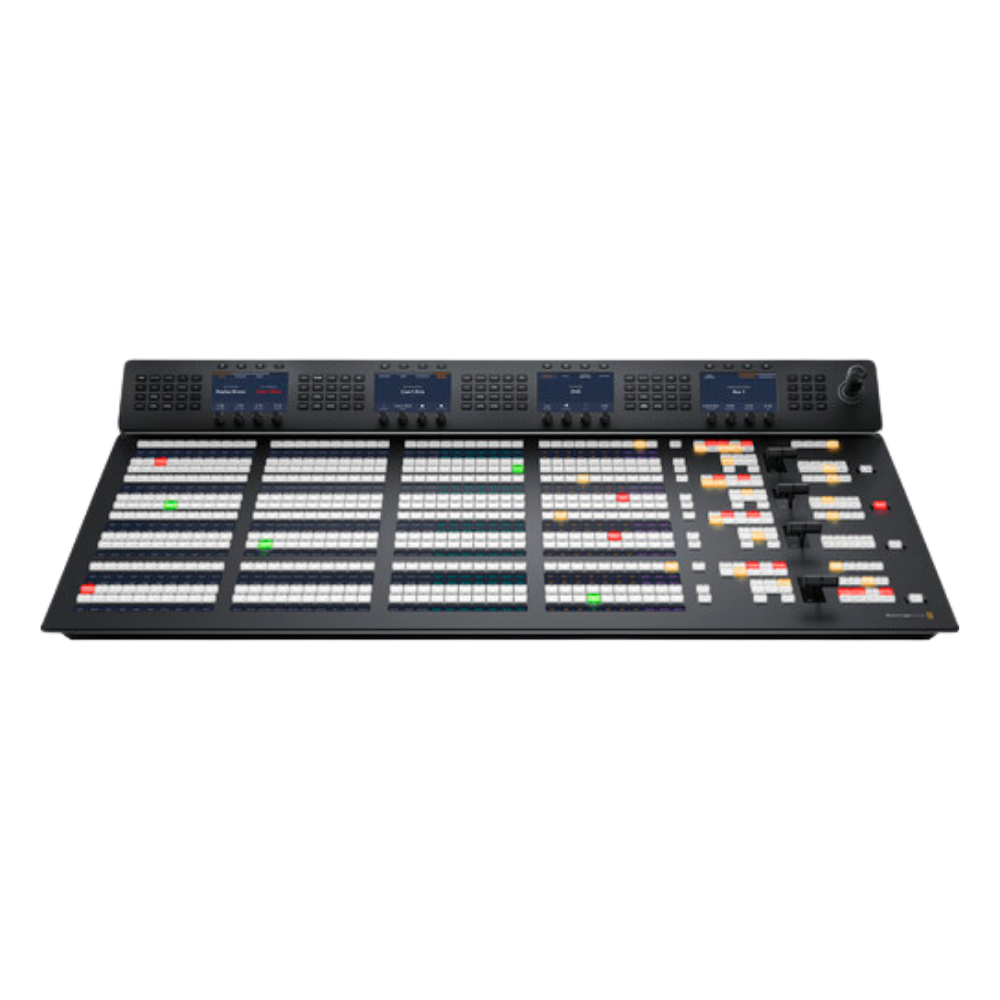

The Blackmagic Design ATEM 4 M/E Advanced Panel 40 is a large professional hardware control surface designed for demanding ATEM live production environments. It provides four independent M/E rows with 40 input buttons per row, giving operators extensive tactile control over complex multi-camera productions.

Performance / Features

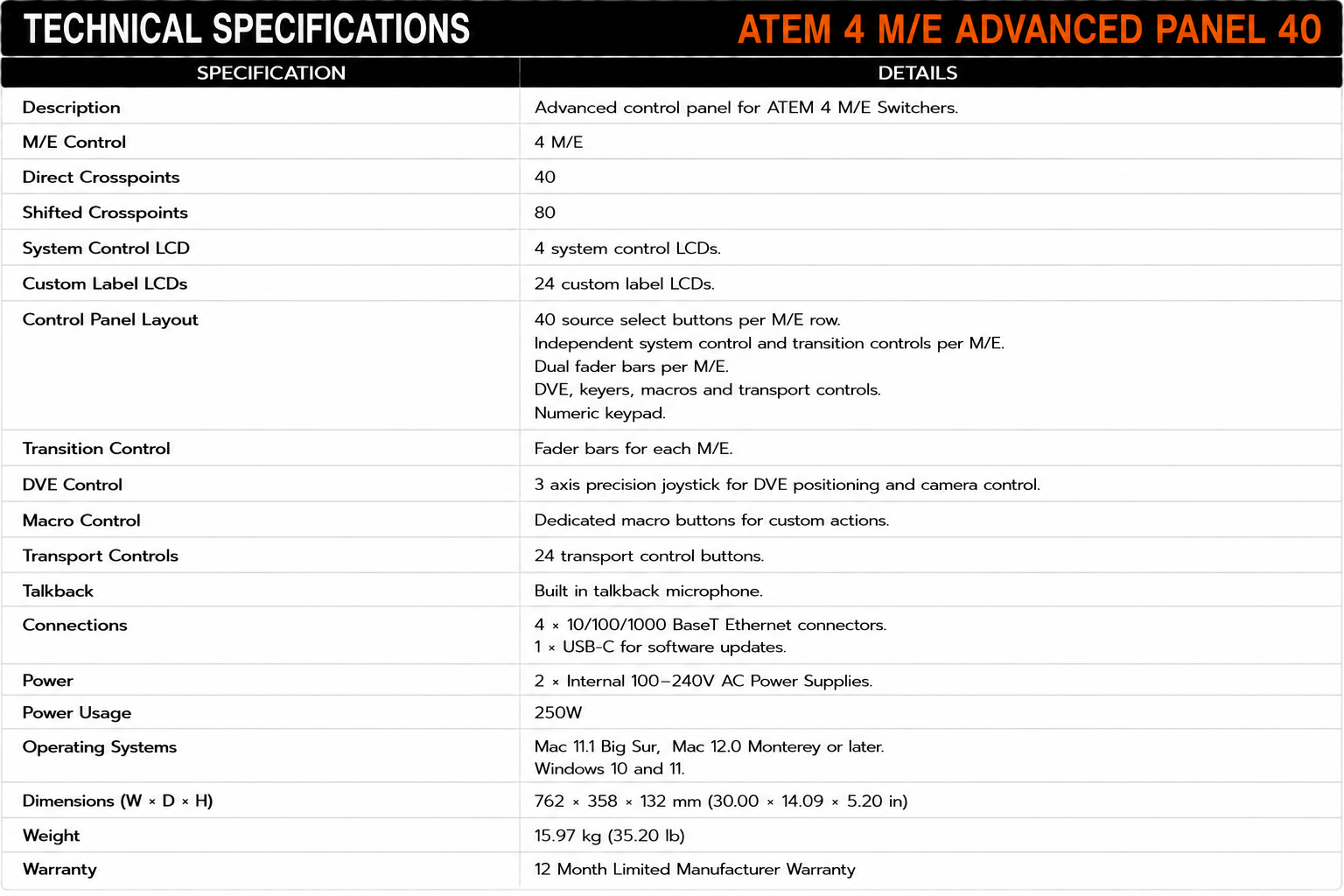

The panel provides 40 direct crosspoints and 80 shifted crosspoints with tri-color LED buttons. Four system-control LCDs and 24 LCDs for custom labeling provide clear visual feedback across the control surface.

Each M/E row incorporates dedicated controls, including a fader bar, destination bus and source select bus. The panel also provides a 3-axis joystick, numeric keypad, dedicated macro controls and 24 transport-control buttons.

Applications / Integration

The ATEM 4 M/E Advanced Panel 40 is designed for large television studios, broadcast control rooms, OB production, sports, live events and other professional multi-camera environments. Four Gigabit Ethernet connections provide connectivity to compatible ATEM switchers, additional control panels and computers
