Overview

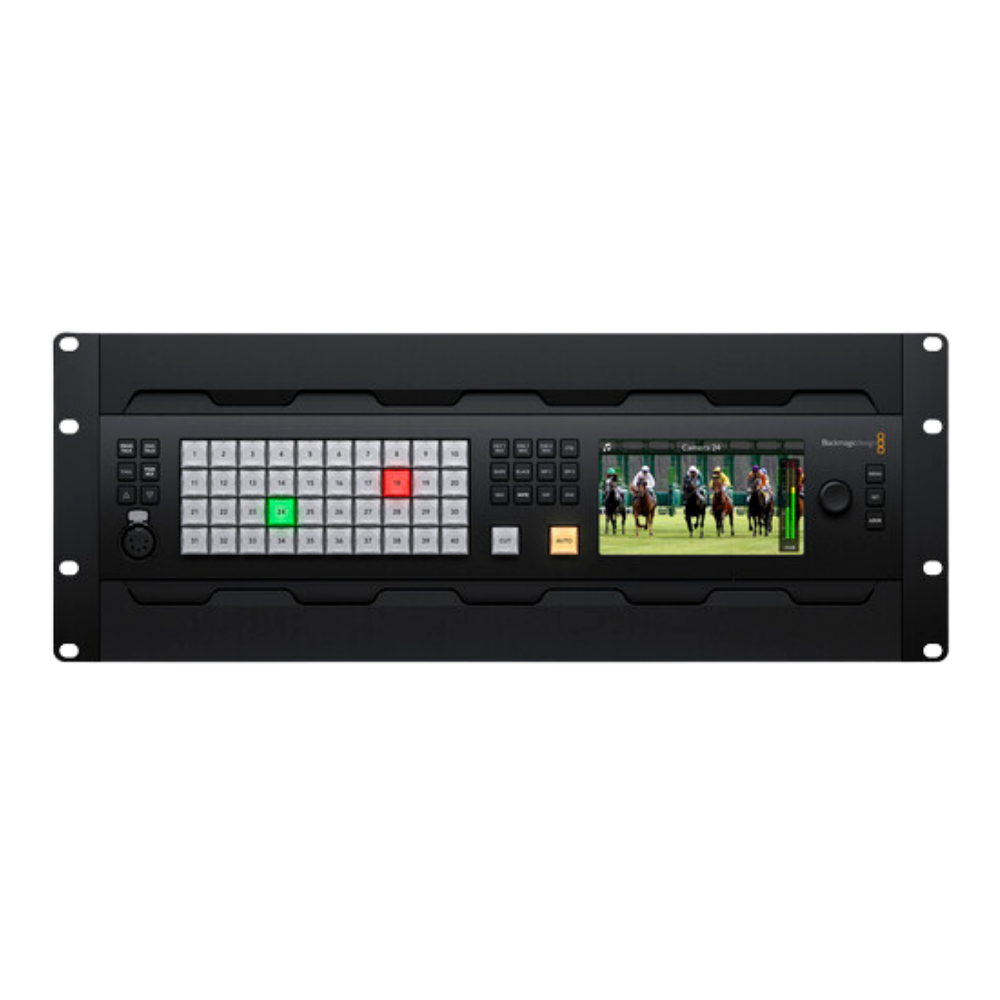

The Blackmagic Design ATEM 4 M/E Constellation 4K Plus is a high-capacity professional Ultra HD live production switcher designed for large broadcast and multi-camera productions. This Plus model significantly expands the connectivity of the standard ATEM 4 M/E Constellation 4K, providing 80 standards-converted 12G-SDI inputs and 52 total video outputs.

Performance / Features

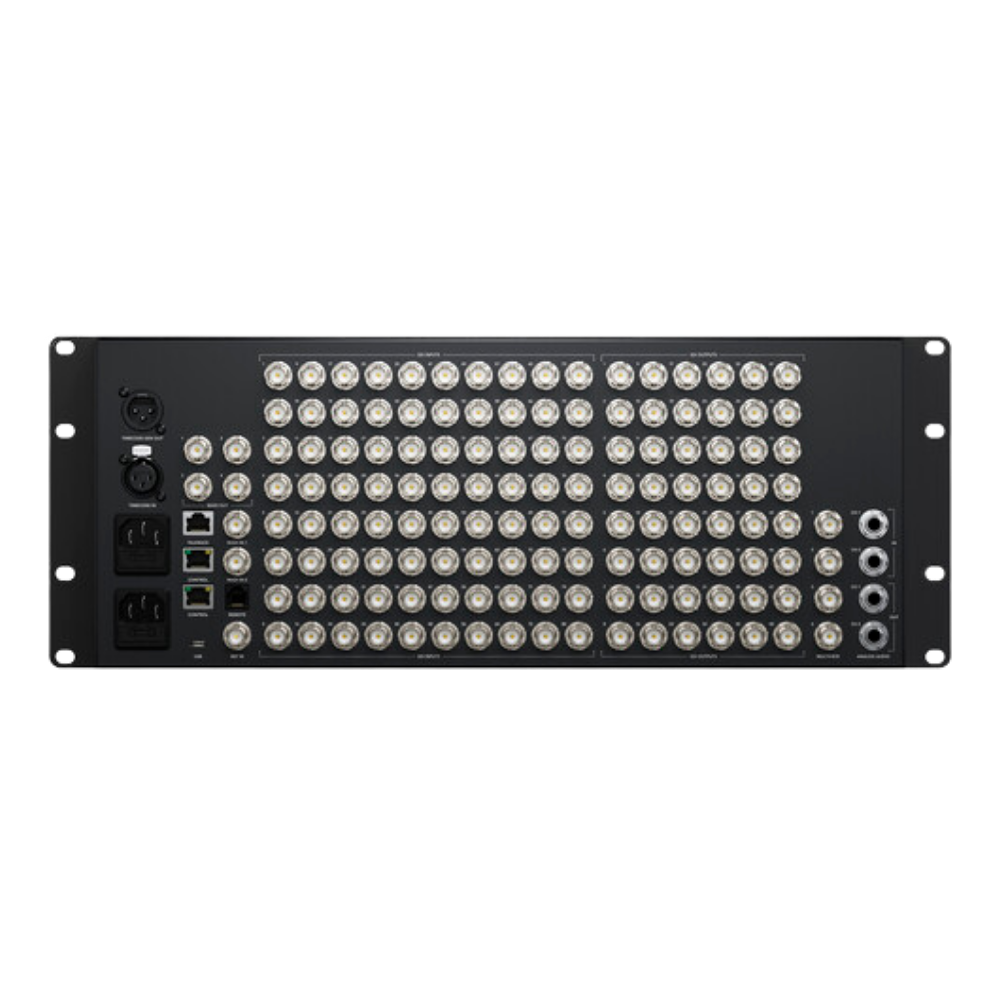

The switcher features four M/E rows and supports Ultra HD production up to 2160p60 with 10-bit processing. Its 80 12G-SDI inputs provide integrated standards conversion, while 48 independent 12G-SDI auxiliary outputs provide extensive routing flexibility for large production environments.

Advanced production capabilities include four DVEs, 16 ATEM Advanced Chroma Keyers, four media players, four independent Ultra HD multiviews and two SuperSource processors. The integrated Fairlight audio system provides extensive professional audio mixing capabilities, with additional MADI connectivity for large audio workflows.

Applications / Integration

ATEM 4 M/E Constellation 4K Plus is designed for television studios, OB production, sports, concerts, major live events, houses of worship and other complex multi-camera environments. Its exceptionally high SDI I/O capacity makes it particularly suitable for facilities that require extensive source routing and multiple independent destinations.
