Overview

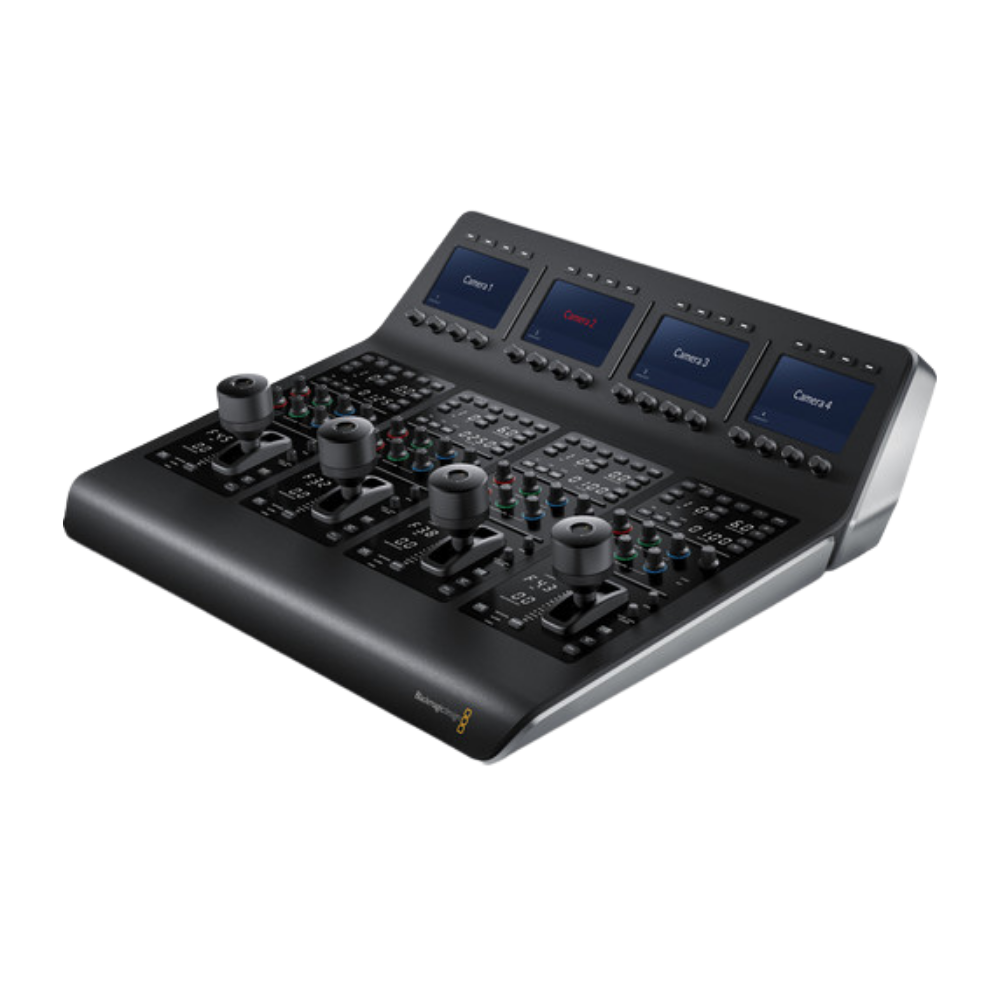

The Blackmagic Design ATEM Camera Control Panel is a professional broadcast-style CCU control surface that provides independent control of up to four compatible cameras from a single panel. It is designed for URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras and provides dedicated hardware controls for camera shading and matching.

Performance / Features

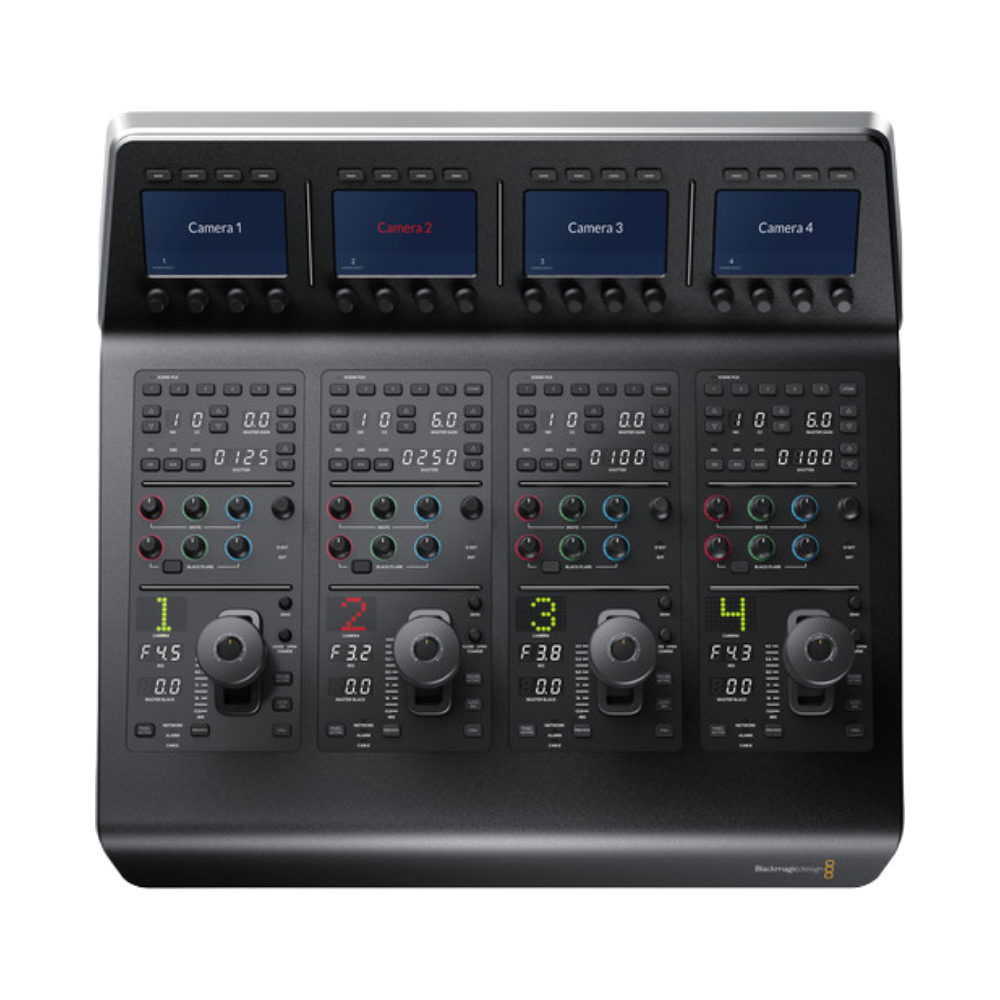

Four independent camera-control sections allow operators to adjust iris, shutter speed, white balance, master gain, pedestal and RGB levels for whites and blacks. Each camera section includes its own LCD menu display, three-axis joystick, preview button and illuminated camera-number indication showing green when off-air and red when on-air.

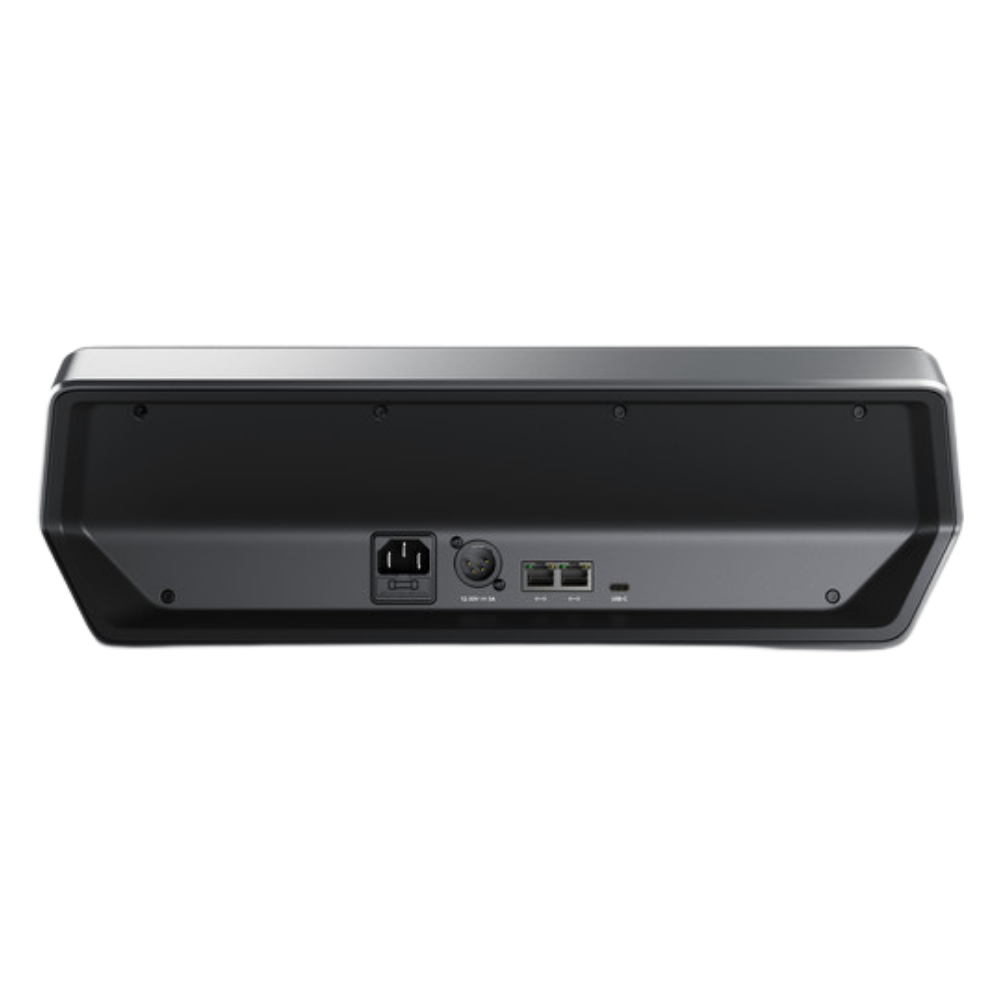

The panel connects to the ATEM production system using dual Gigabit Ethernet connections with loop-through support for additional panels or computers. USB-C is provided for firmware updates. It supports redundant power through its internal AC supply and 12 to 30V DC input.

Applications / Integration

The ATEM Camera Control Panel is suited to broadcast studios, live production, sports, houses of worship, corporate studios and other multi-camera environments where a dedicated operator needs precise control over camera matching and exposure. It integrates directly into compatible Blackmagic ATEM workflows over Ethernet.
