Overview

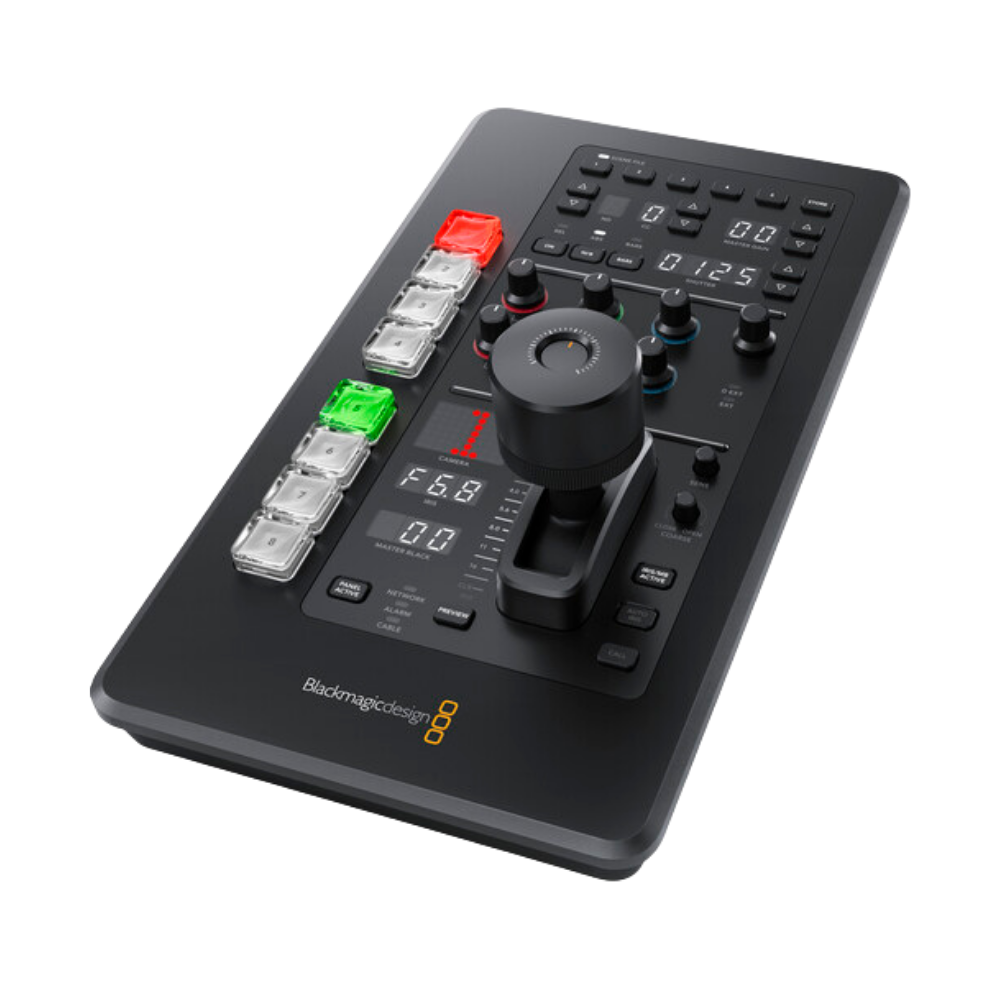

The Blackmagic Design ATEM Micro Camera Panel is a compact professional camera control surface designed to provide traditional broadcast CCU controls in a portable format. A single panel can control up to eight compatible cameras through ATEM Software Control, with dedicated controls for iris, pedestal, shutter, white balance, master gain, RGB balance and other camera parameters.

Performance / Features

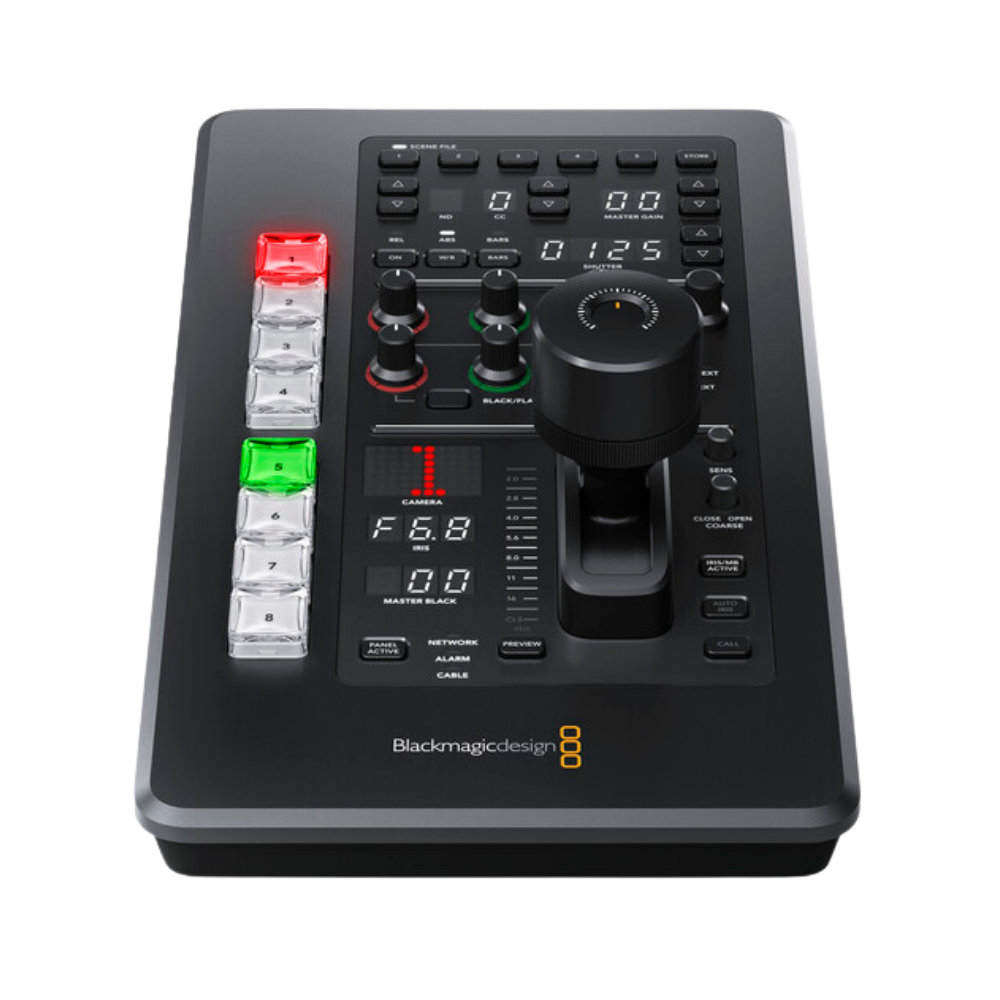

Eight assignable NKK camera selection buttons allow an operator to quickly move between cameras, with green and red illumination indicating off-air and on-air status. A professional 3-axis joystick provides precise iris and pedestal adjustment, while dedicated controls provide access to gain, ND filters, shutter, white balance and other essential camera settings.

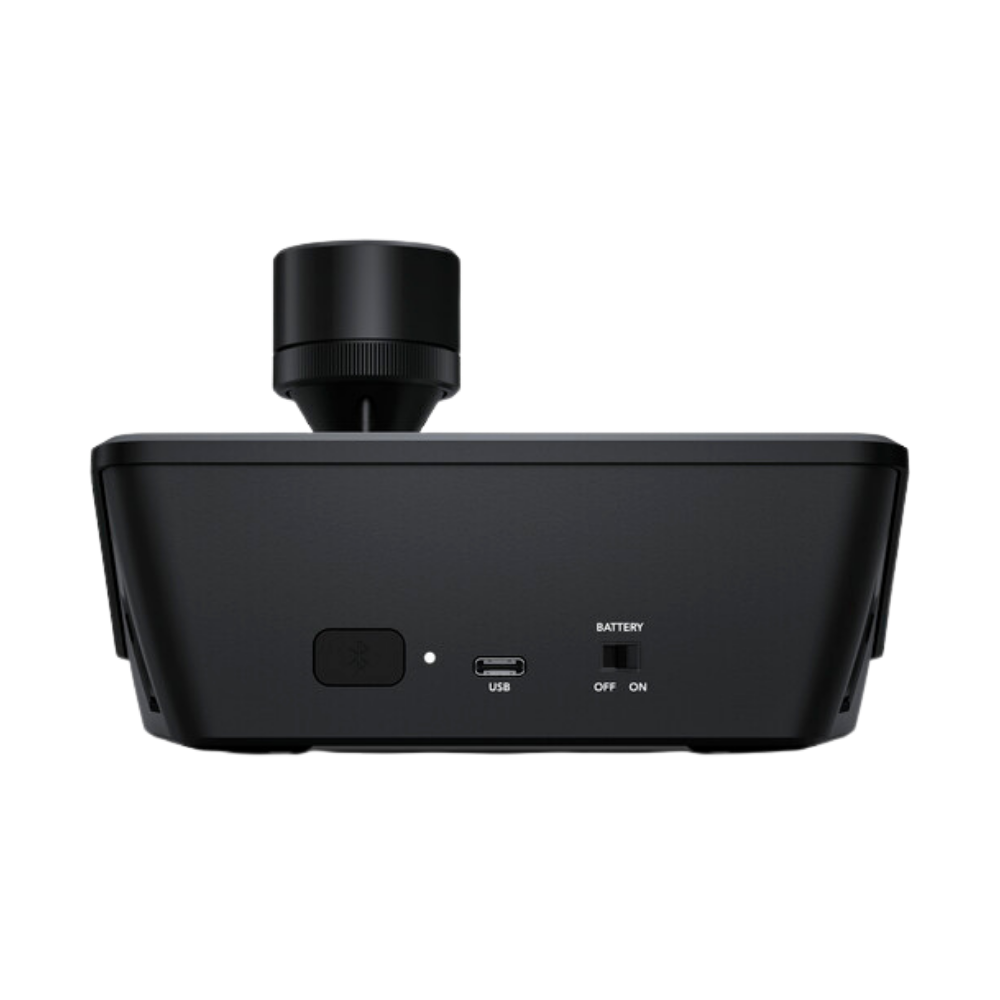

The panel connects to the ATEM Software Control computer through USB-C or Bluetooth 5.1 LE, allowing either wired or portable wireless operation. It uses an internal rechargeable battery and includes USB-C charging.

Applications / Integration

The ATEM Micro Camera Panel is suited to television studios, live production, houses of worship, corporate AV, education and other multi-camera environments using Blackmagic cameras with ATEM Camera Control. It provides a much more tactile camera-shading workflow than operating camera parameters solely through software.
