Overview

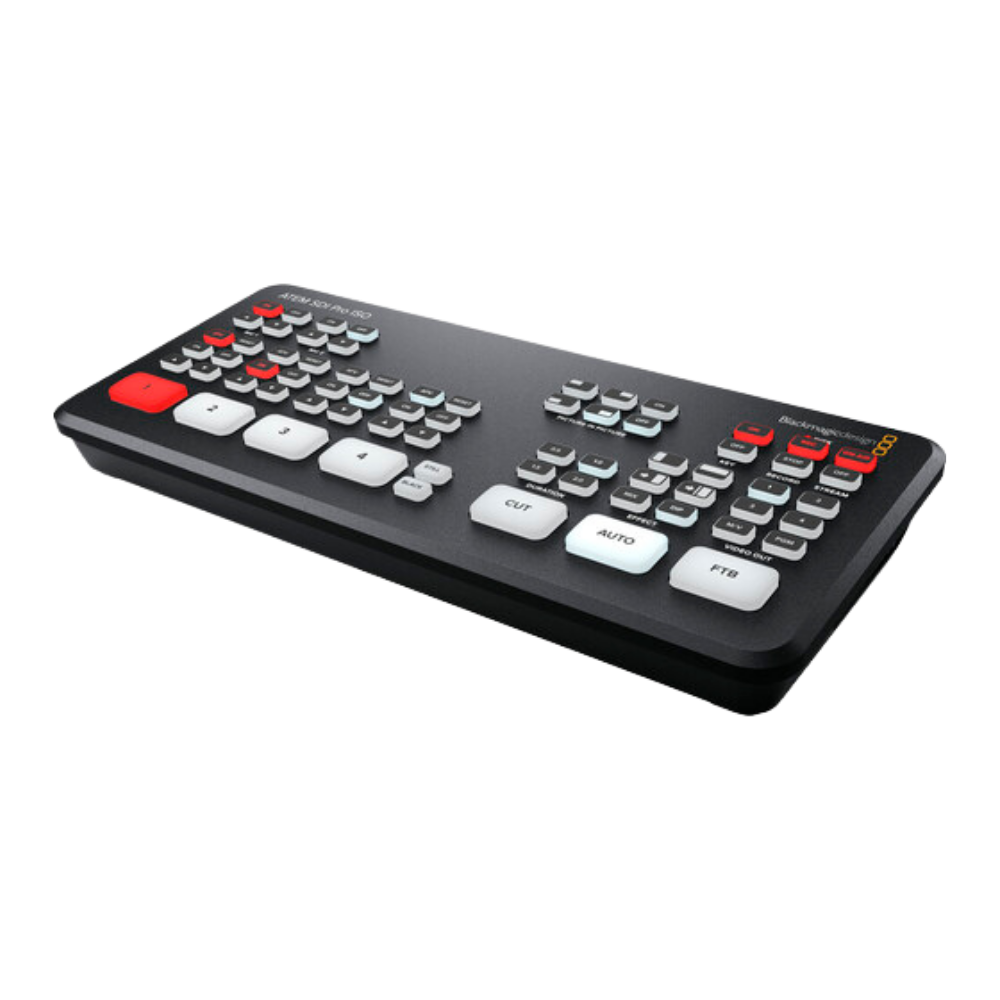

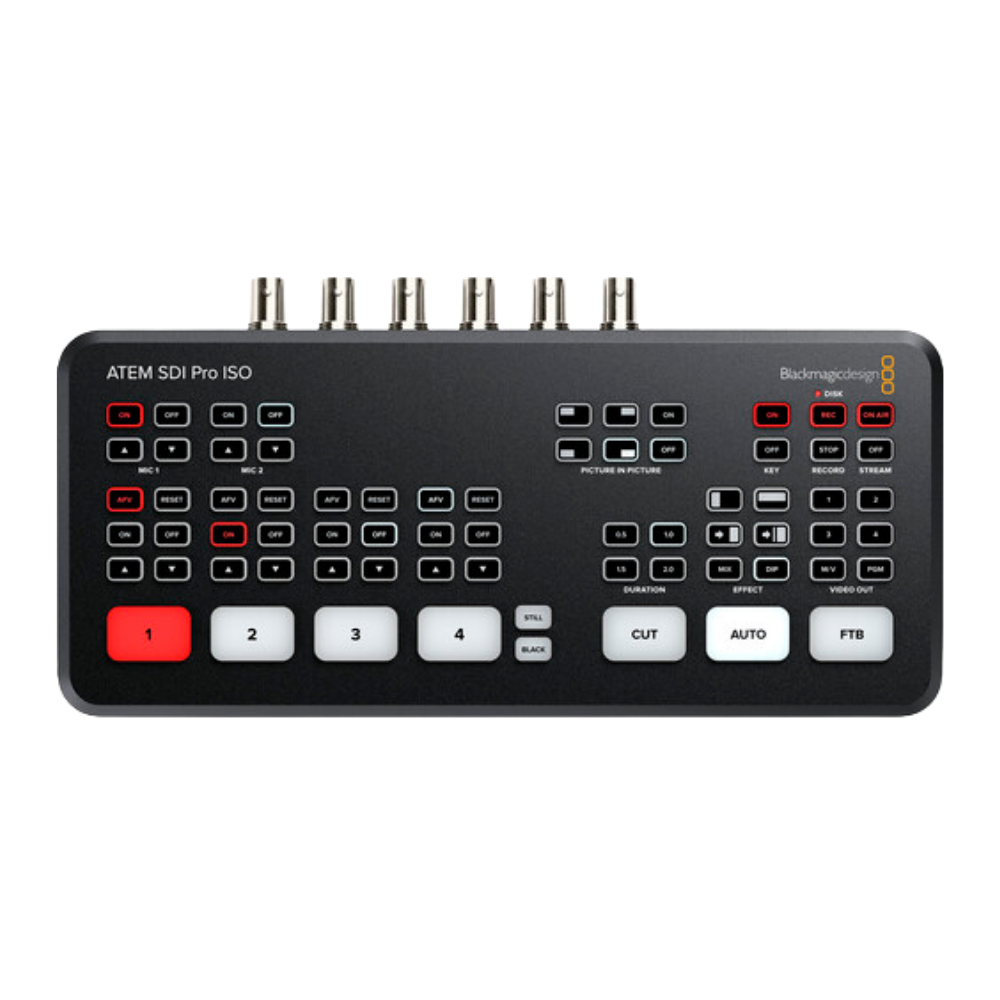

The Blackmagic Design ATEM SDI Pro ISO is a compact professional live production and streaming switcher featuring four standards-converted 3G-SDI inputs. It combines multi-camera switching, direct hardware streaming, ISO recording, multiview monitoring and professional broadcast effects in a portable desktop system. It is particularly suited to productions that need the reliability of SDI connectivity together with integrated streaming and post-production capabilities.

Performance / Features

All four 3G-SDI inputs feature automatic frame-rate and format conversion as well as input resynchronization. The integrated hardware streaming engine supports direct live streaming over Ethernet, while USB-C can be used for external media recording, webcam output and shared internet connections. The ISO recording system simultaneously captures all four SDI inputs plus the program output as separate H.264 files and saves a DaVinci Resolve project, allowing the entire live production to be reopened and refined in post-production.

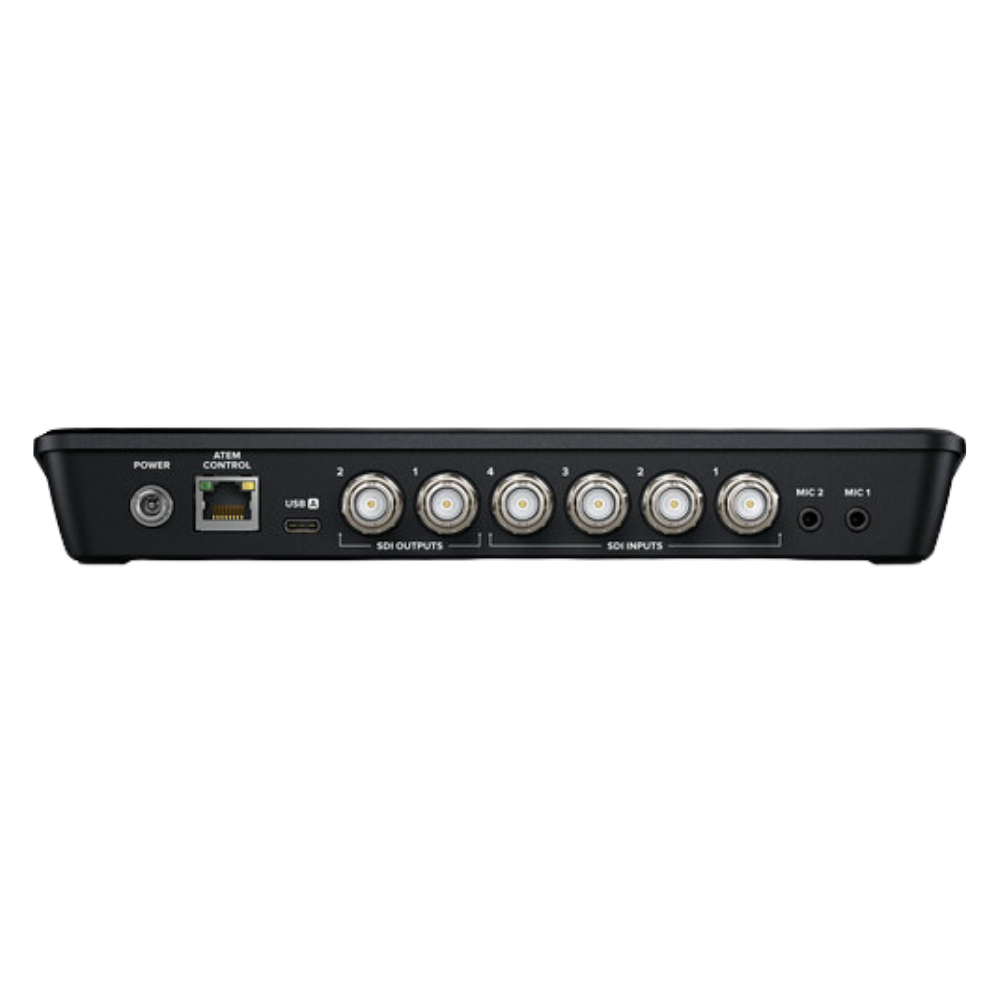

The switcher also provides a 10-view multiview, Fairlight audio processing, DVE, chroma keying, upstream and downstream keyers, a media player and professional ATEM Software Control. Its two configurable 3G-SDI outputs allow flexible program, preview and multiview monitoring configurations.

Applications / Integration

ATEM SDI Pro ISO is ideal for broadcast production, live streaming, houses of worship, corporate events, education, conferences, interviews, podcasts, esports and other multi-camera productions. Its SDI connectivity makes it particularly suitable for professional cameras and longer cable runs, while Ethernet streaming, USB-C recording and DaVinci Resolve project generation create an integrated workflow from live production through post-production.
