Overview

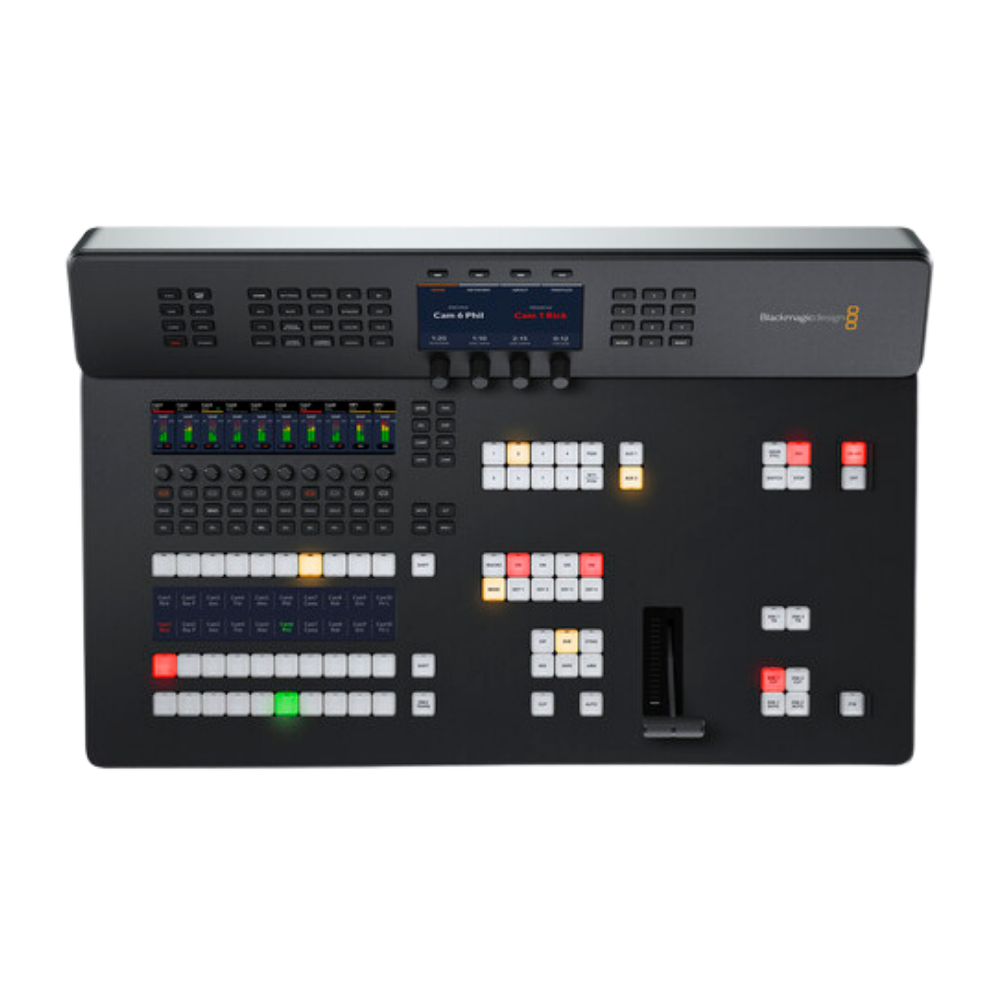

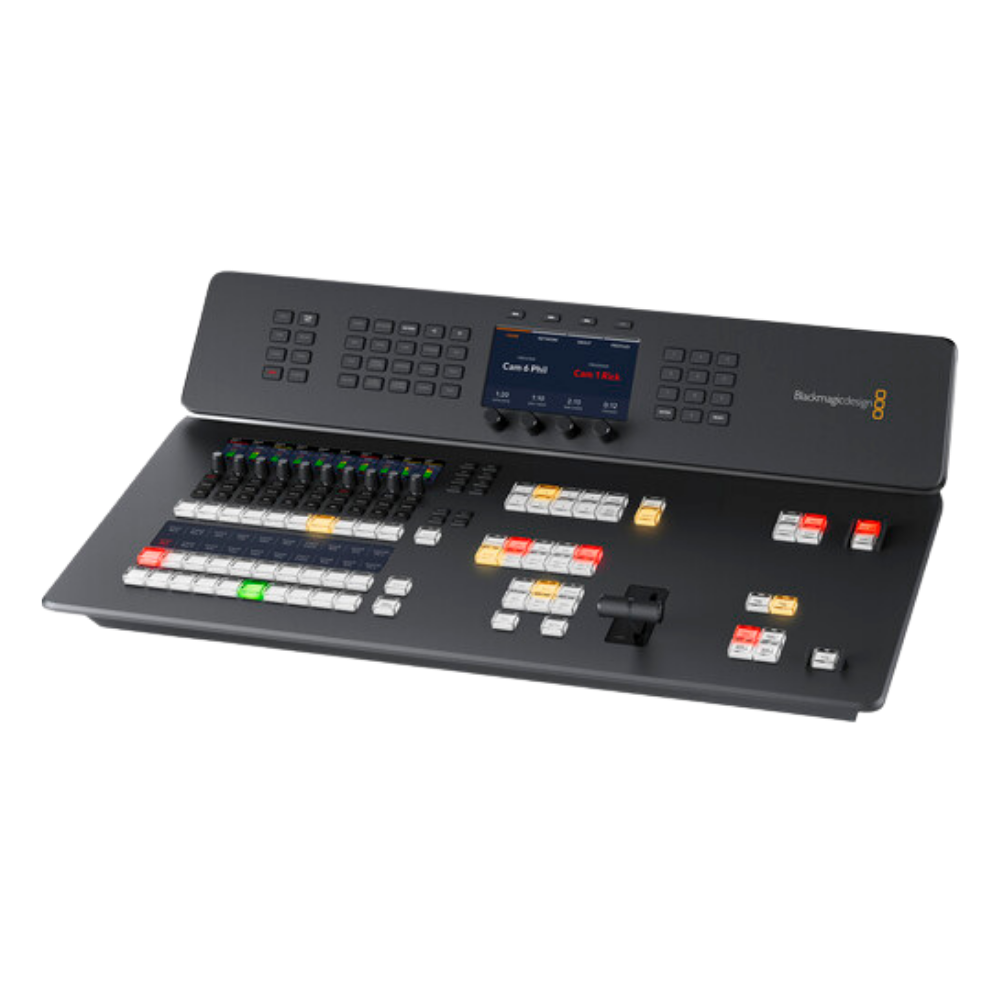

The Blackmagic Design ATEM Television Studio HD8 is a professional all-in-one live production switcher combining a broadcast control panel with eight standards-converted 3G-SDI inputs. It brings switching, hardware streaming, recording, multiview, audio mixing, talkback and camera control into a compact system suitable for both fixed studios and portable productions.

Performance / Features

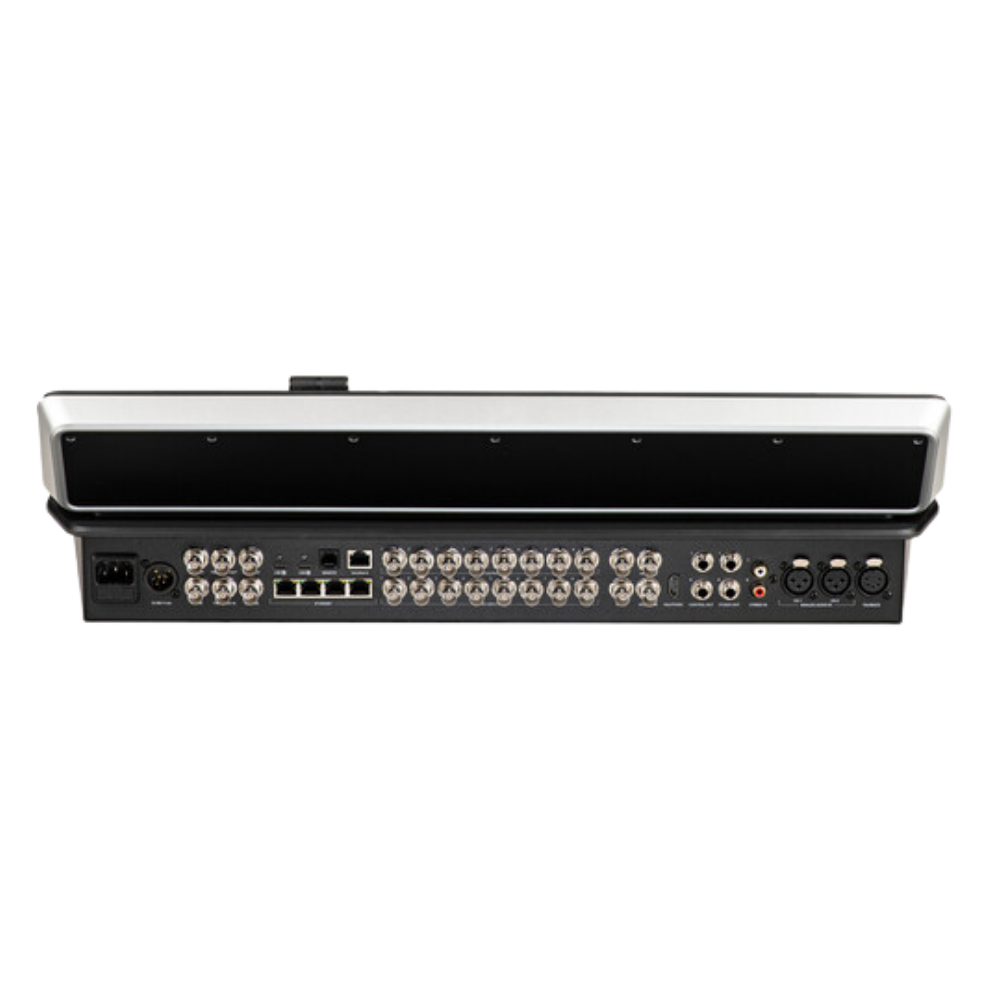

The ATEM Television Studio HD8 supports eight independent 3G-SDI inputs, each with its own standards converter for integrating different compatible 720p and 1080p sources. Its extensive output section includes 12 SDI video outputs plus an HDMI multiview output, while USB provides webcam functionality for integration with computer-based video applications.

Advanced production capabilities include four ATEM Advanced Chroma Keyers, SuperSource with four additional DVE layers, two media players, professional transitions and a 58-channel Fairlight audio mixer. The integrated hardware streaming engine allows direct live streaming, while H.264 recording can be made to external USB storage or optional internal M.2 storage.

Applications / Integration

ATEM Television Studio HD8 is designed for television studios, live events, houses of worship, corporate AV, education, sports, conferences and other professional multi-camera productions. Integrated camera control and talkback make it particularly effective with compatible Blackmagic cameras, while its SDI infrastructure allows reliable deployment in professional production environments.
