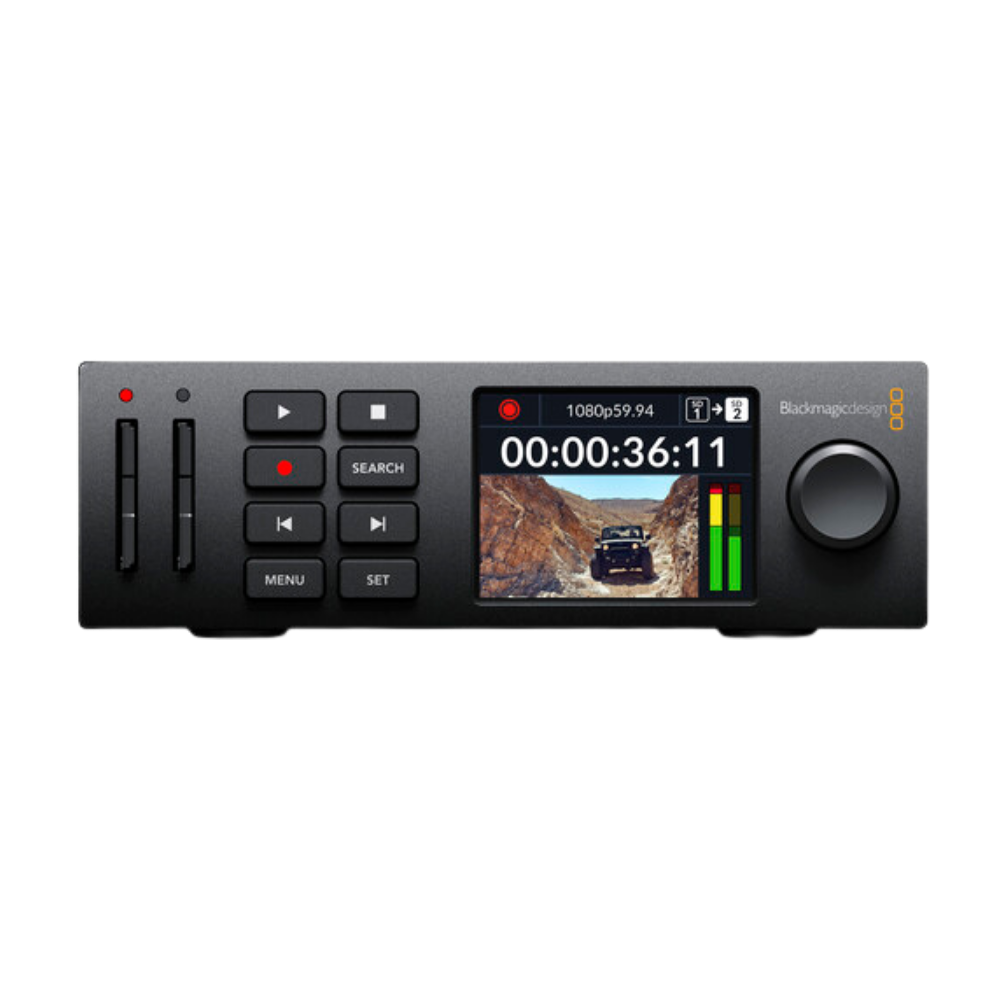

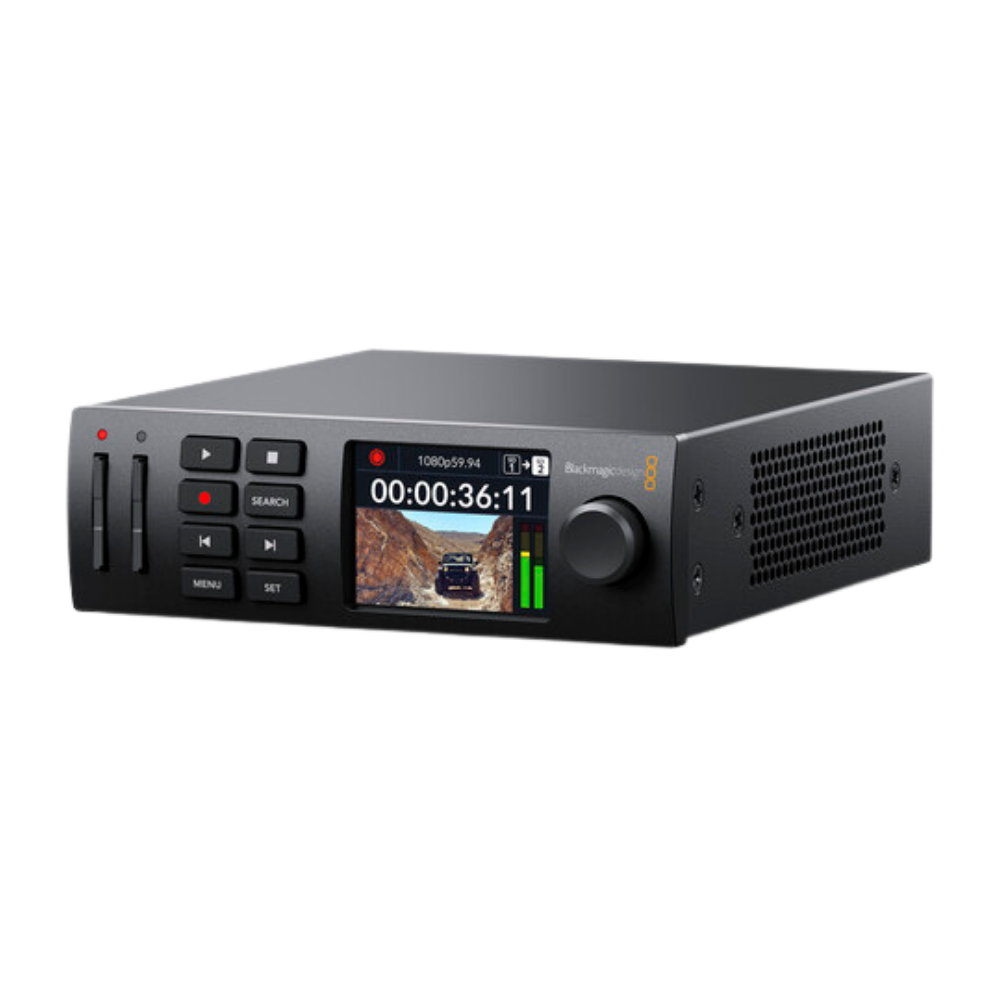

Blackmagic Design HyperDeck Studio HD Mini

Blackmagic

Blackmagic Design HyperDeck Studio HD Mini

Blackmagic Disk Recorder

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

• 1 × 3G-SDI input with 3G-SDI and HDMI outputs
• Records ProRes, DNxHD and H.264 formats
• Dual UHS-I/UHS-II SD card recording slots
• USB-C external disk recording and webcam output
• Built-in 2.2-inch LCD with transport and search controls
• Gigabit Ethernet, RS-422, reference and timecode connectivity

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

The Blackmagic Design HyperDeck Studio HD Mini is a compact broadcast-quality recorder and playback deck designed for studio, live production and portable workflows. Its one-third rack-width design allows three units to be installed side by side in a single rack unit using an optional Teranex Mini Rack Shelf.

Performance

HyperDeck Studio HD Mini features one 3G-SDI input, one 3G-SDI output and one HDMI output, supporting SD and HD formats as well as 2K DCI up to 30 fps. Video processing is 10-bit 4:2:2, with support for Rec. 601, Rec. 709 and Rec. 2020 color spaces and HDR metadata.

Recording is available to two UHS-I/UHS-II SD card slots or external USB storage through USB-C. Supported codecs include Apple ProRes, DNxHD and H.264, including H.264 SDI 4:2:2 10-bit recording. The dual SD slots can automatically continue recording when one card becomes full.

Applications

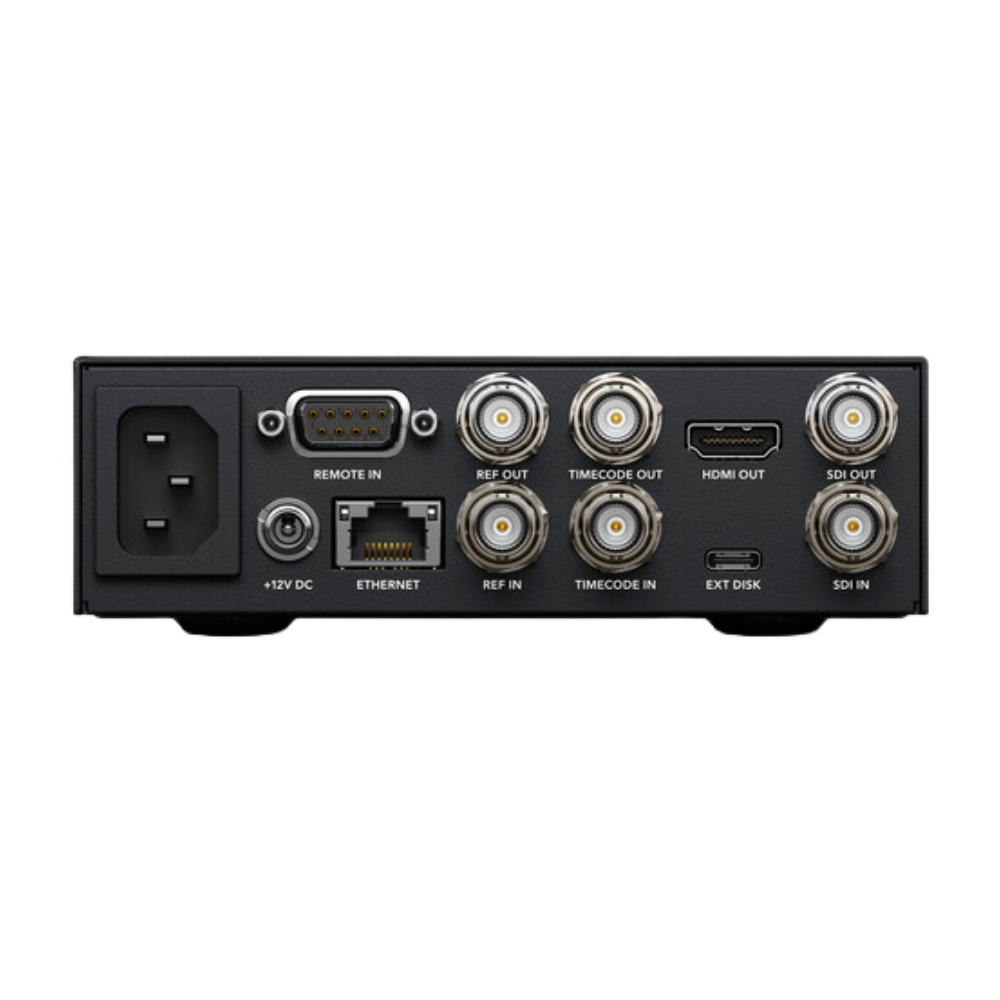

The HyperDeck Studio HD Mini is suitable for broadcast recording, ISO camera recording, playback, digital signage, live production and studio installations. Reference and timecode inputs and outputs allow accurate synchronization in professional broadcast environments, while RS-422 and Gigabit Ethernet provide remote deck control.

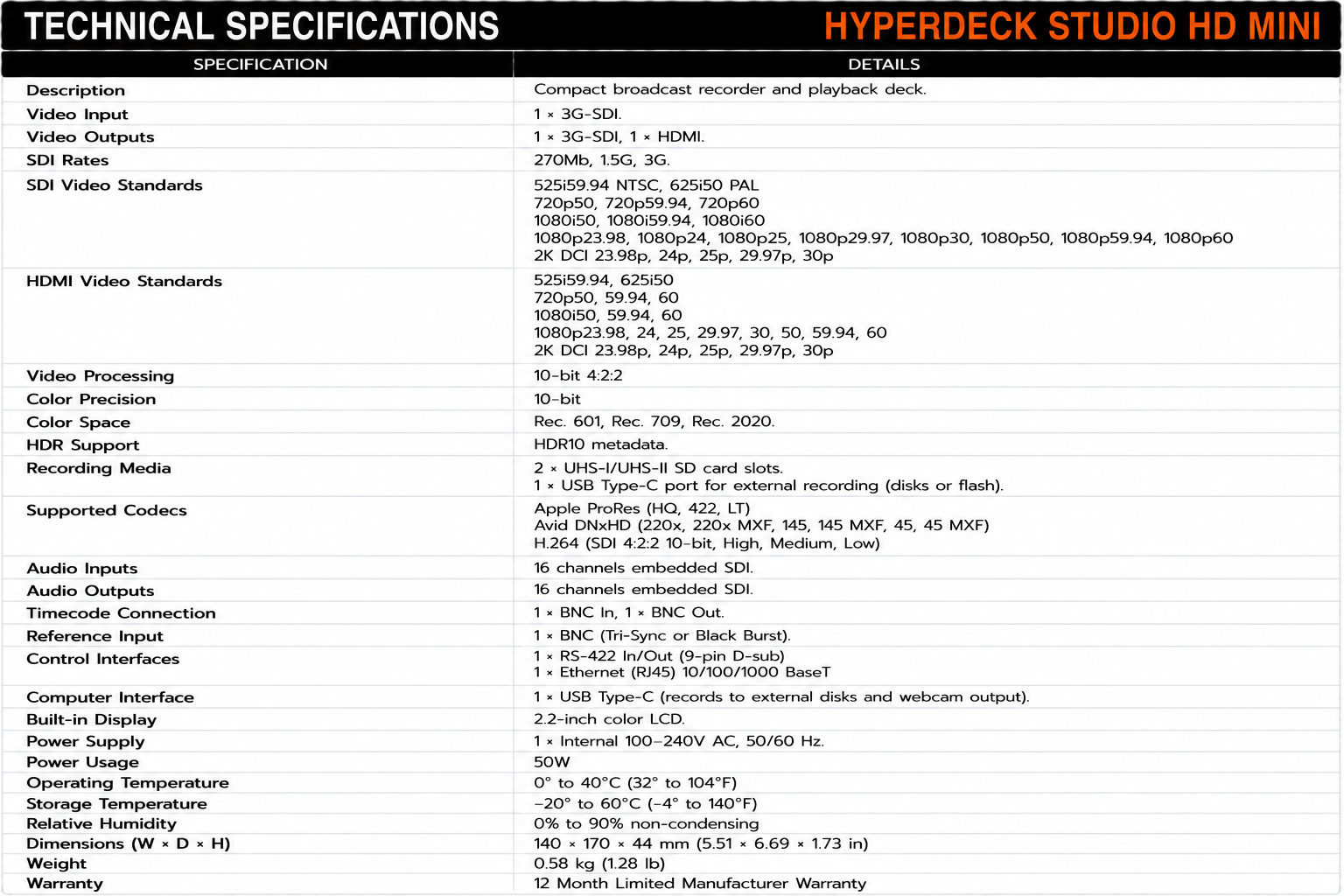

Technical Specifications +

technical specifications
