Overview

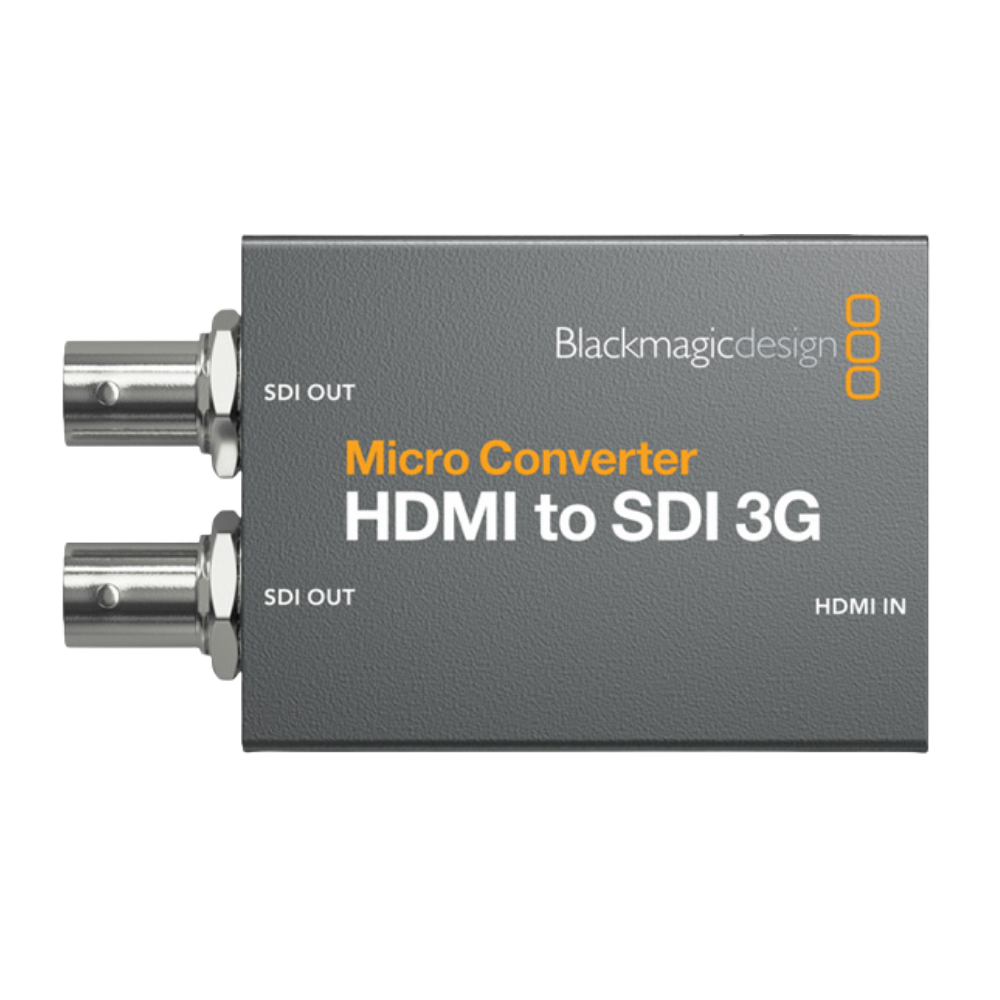

The Blackmagic Design Micro Converter HDMI to SDI 3G is a compact broadcast-quality converter designed to connect HDMI cameras, computers and other HDMI sources to professional SDI equipment. It provides one full-size HDMI Type-A input and two 3G-SDI outputs, allowing the converted signal to feed two SDI destinations simultaneously.

The converter supports SD and HD video standards with automatic input detection. Its USB Type-C connection provides power while also supporting configuration and software updates.

Performance

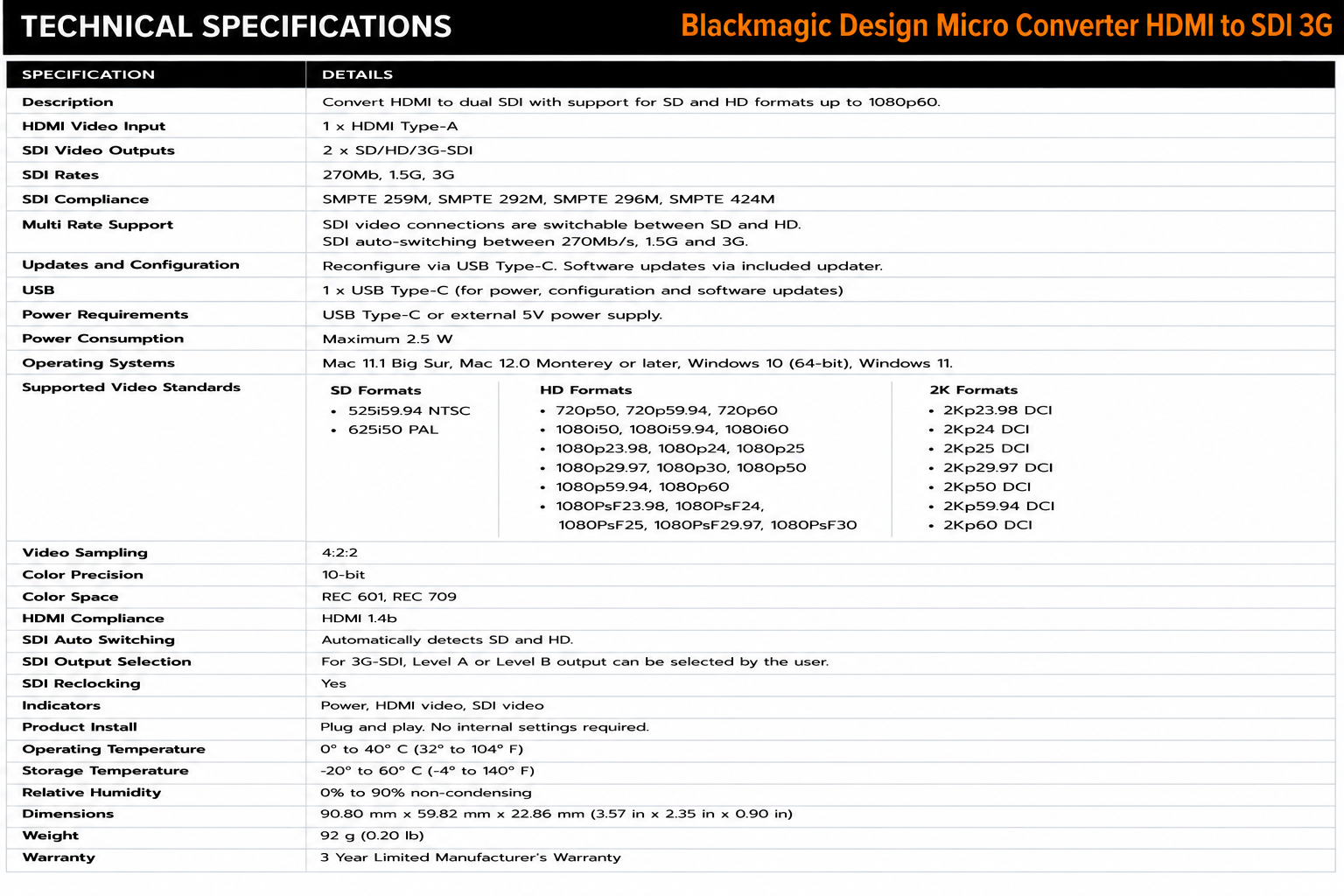

Micro Converter HDMI to SDI 3G supports SD formats including NTSC and PAL, along with HD formats through 1080p60. It also supports 2K DCI formats through 60p. The SDI outputs automatically switch between SD, HD and 3G-SDI according to the incoming video standard.

The unit provides 10-bit video processing with 4:2:2 sampling and supports selectable Level A or Level B operation for 3G-SDI output. Both SDI outputs are reclocked for reliable integration with professional broadcast equipment.

Applications

The Micro Converter HDMI to SDI 3G is suitable for integrating HDMI cameras, computers and other HDMI sources into professional SDI production systems. Its dual SDI outputs are useful in live production, studios, broadcast facilities and portable systems where the same converted signal needs to be distributed to two SDI devices.

Its miniature form factor and USB-C power capability also make it convenient for camera rigs, production kits and space-constrained installations.
