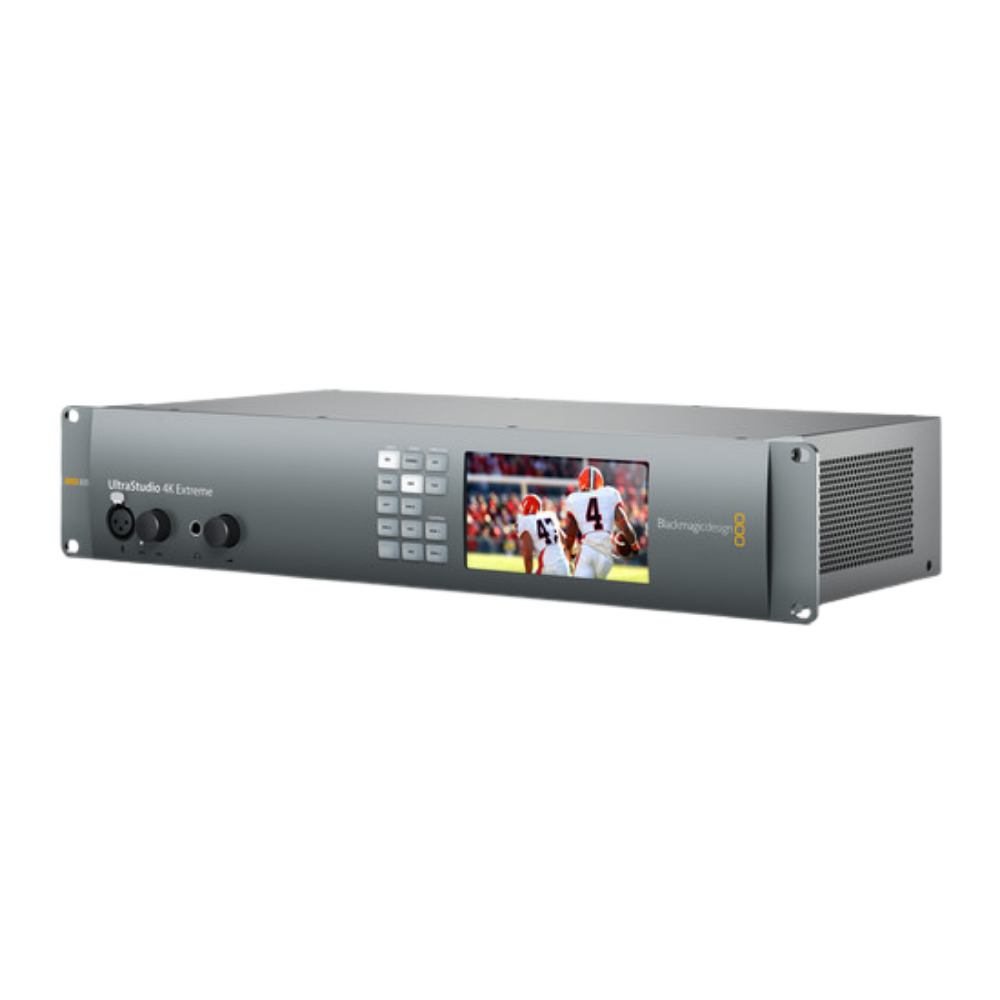

Blackmagic Design UltraStudio 4K Extreme 3

Blackmagic Capture Cards

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

• Multi-rate 12G-SDI capture and playback for SD, HD, 2K and 4K
• HDMI 2.0 input and output supporting up to 2160p60
• 40Gb/s Thunderbolt 3 plus PCI Express computer connectivity
• 8, 10 and 12-bit processing with professional HDR workflows
• Built-in hardware-based real-time H.265 encoder
• Extensive analog video, analog audio, AES/EBU, RS-422 and reference connectivity

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

The Blackmagic Design UltraStudio 4K Extreme 3 is a high-end professional capture and playback solution designed for broadcast, post-production, live production and digital cinema workflows. Its extensive analog and digital connectivity allows integration with professional cameras, decks, routers, monitors and other production equipment.

Performance

UltraStudio 4K Extreme 3 combines multi-rate 12G-SDI with HDMI 2.0 for SD, HD, 2K, Ultra HD and 4K production. It supports workflows up to 60 fps along with deep color, 12-bit RGB and HDR support through HDMI 2.0a.

The unit provides 2 × 12G-SDI and 2 × 6G-SDI inputs, corresponding SDI outputs and loop connections, plus HDMI 2.0 input and output. Optional optical-fiber modules can also provide 12G-SDI optical connectivity.

Applications

UltraStudio 4K Extreme 3 is suited to professional video editing, color grading, visual effects, broadcast ingest, live capture, mastering and HDR monitoring. Its built-in hardware H.265 encoder enables real-time H.265 capture, while Thunderbolt 3 and PCI Express connectivity provide high-bandwidth computer integration.

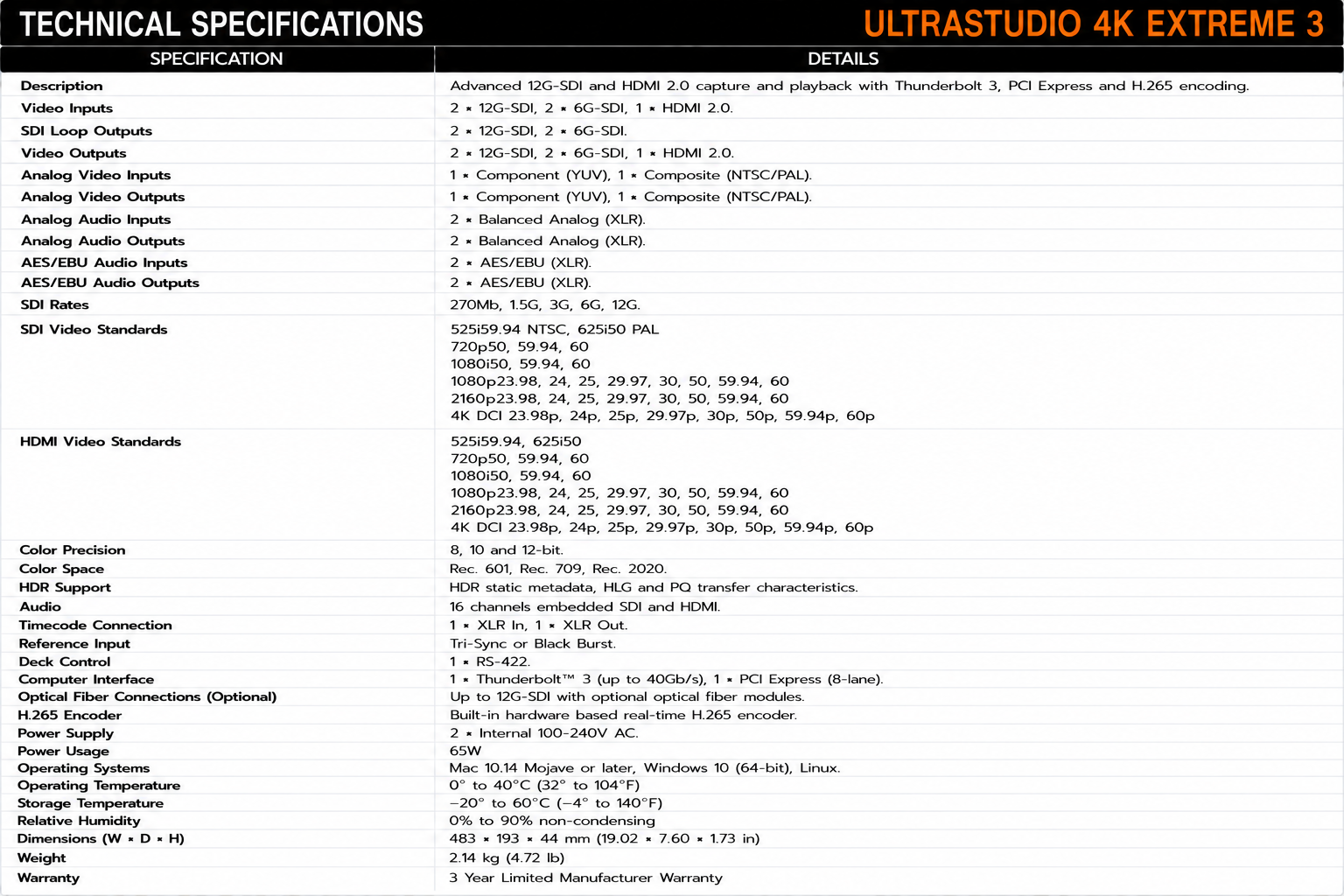

Technical Specifications +

technical specifications
