Blackmagic

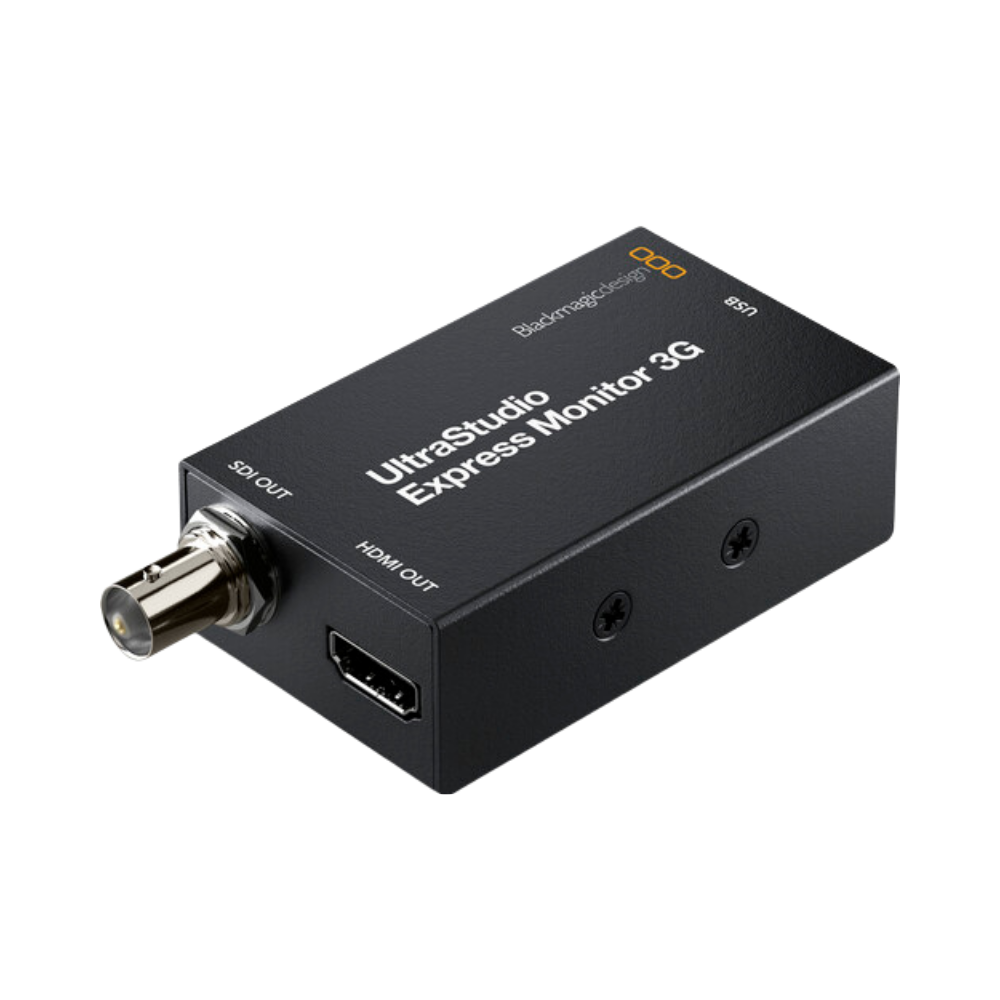

Blackmagic Design UltraStudio Express Monitor 3G

Blackmagic Capture Cards

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

• Professional 3G-SDI and HDMI video playback
• Supports SD and HD resolutions up to 1080p60
• 10-bit SDI output for broadcast-quality monitoring
• 16-channel SDI and 8-channel HDMI embedded audio
• 40Gbps USB-C interface for USB4 and Thunderbolt 4 computers
• Compact USB bus-powered design for portable workflows

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

The Blackmagic Design UltraStudio Express Monitor 3G is an ultra-compact professional playback device designed to output broadcast-quality video from a computer to SDI or HDMI displays. It connects to compatible Mac, Windows and Linux computers through a high-speed USB-C interface supporting USB4 and Thunderbolt 4 workflows.

Performance

UltraStudio Express Monitor 3G provides one switchable 10-bit SD/HD 3G-SDI output and one HDMI 2.0 output. It supports SD and HD video standards up to 1080p60, with SDI data rates of 270Mb, 1.5G and 3G.

The device supports 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio. Its 40Gbps USB-C computer interface provides the bandwidth required for professional video playback from compatible editing and broadcast graphics applications.

Applications

UltraStudio Express Monitor 3G is ideal for professional editing, color grading, broadcast graphics and post-production environments where video needs to be monitored on an external SDI or HDMI display. Blackmagic specifically supports workflows with applications such as DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro and Avid Media Composer.

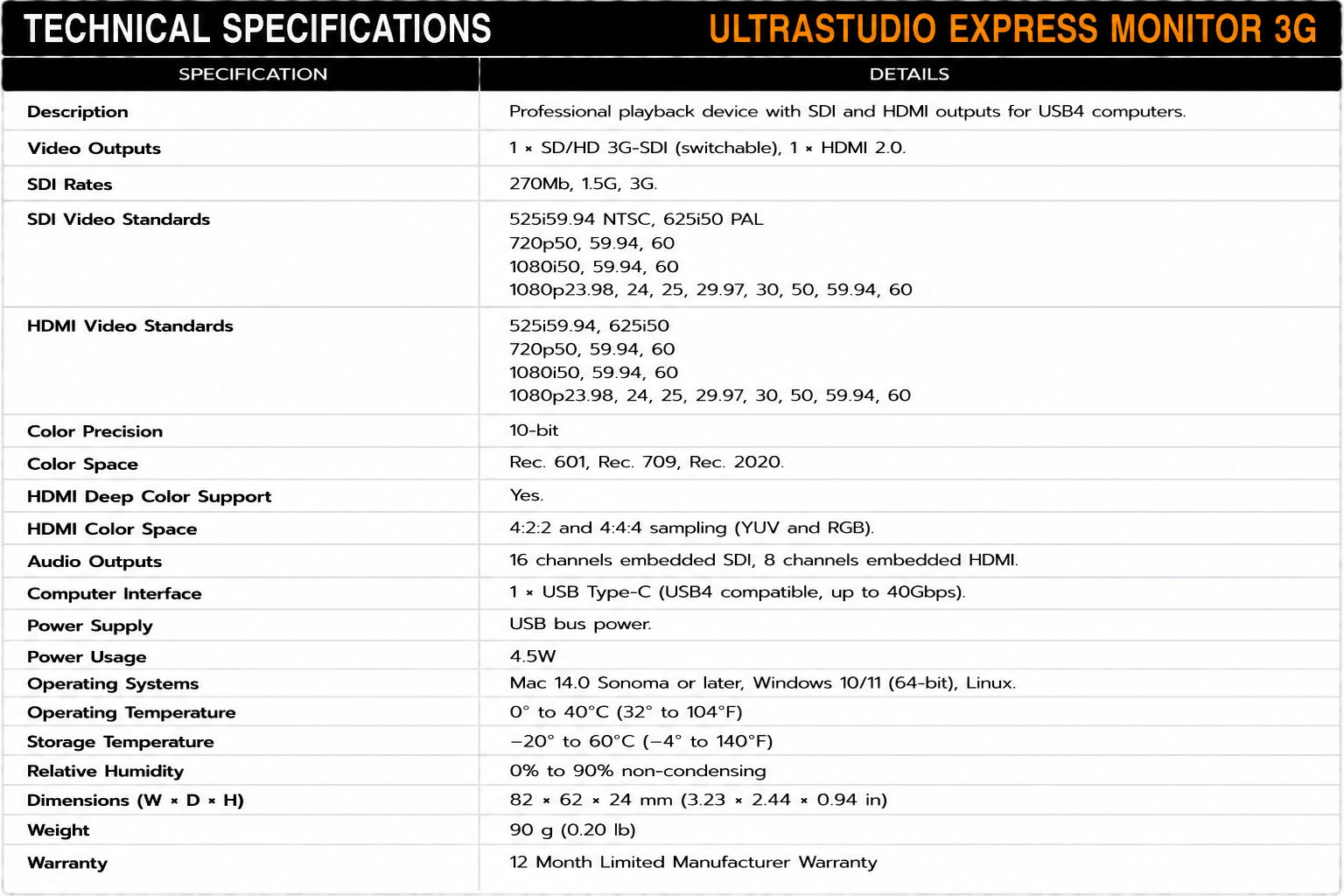

Technical Specifications +

technical specifications
