Blackmagic Design UltraStudio Mini Monitor 12G

Blackmagic Capture Cards

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

• 2 × multi-rate 12G-SDI video outputs
• 1 × HDMI 2.0 video output
• Supports Ultra HD video up to 2160p60
• Dedicated 10-bit SDI fill and key output capability
• 16-channel SDI and 8-channel HDMI embedded audio
• Thunderbolt 4 interface with Thunderbolt bus power

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Overview

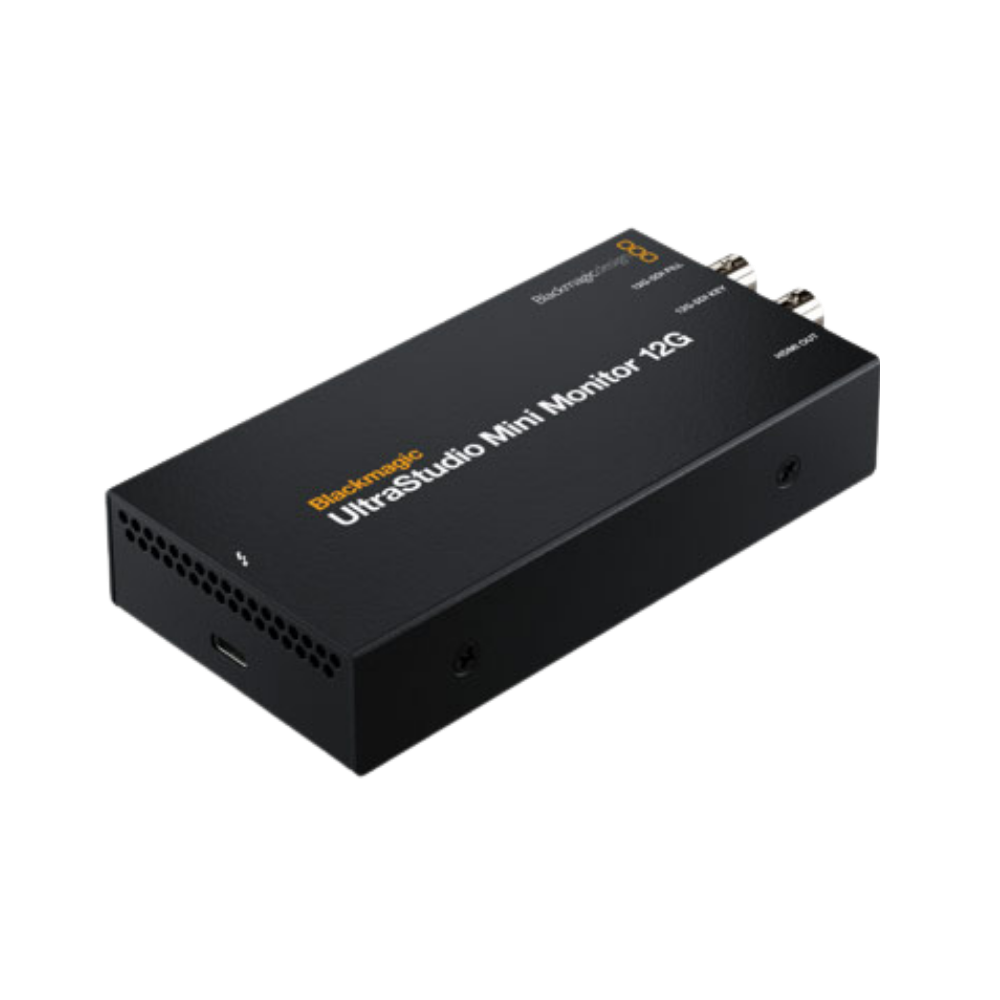

The Blackmagic Design UltraStudio Mini Monitor 12G is a compact professional playback device for Thunderbolt computers. It provides broadcast-quality SDI and HDMI video output from editing, color grading and broadcast graphics applications, allowing computers to connect directly to professional monitors, projectors, switchers and other production equipment.

Performance

UltraStudio Mini Monitor 12G features two multi-rate 12G-SDI outputs and one HDMI 2.0 output. The SDI connections support 270Mb, 1.5G, 3G, 6G and 12G rates, providing compatibility with SD, HD, 2K, Ultra HD and 4K workflows, including Ultra HD up to 2160p60.

Its two SDI connections can operate as dedicated 10-bit fill and key outputs for broadcast graphics applications. The device supports 16 channels of embedded SDI audio and 8 channels of embedded HDMI audio, providing professional multichannel audio alongside video playback.

Applications

UltraStudio Mini Monitor 12G is designed for professional video editing, color grading, broadcast graphics, post-production and external video monitoring. It works with applications including DaVinci Resolve, Final Cut Pro, Adobe Premiere Pro, Adobe After Effects, Avid Media Composer and a wide range of broadcast graphics and playback software.

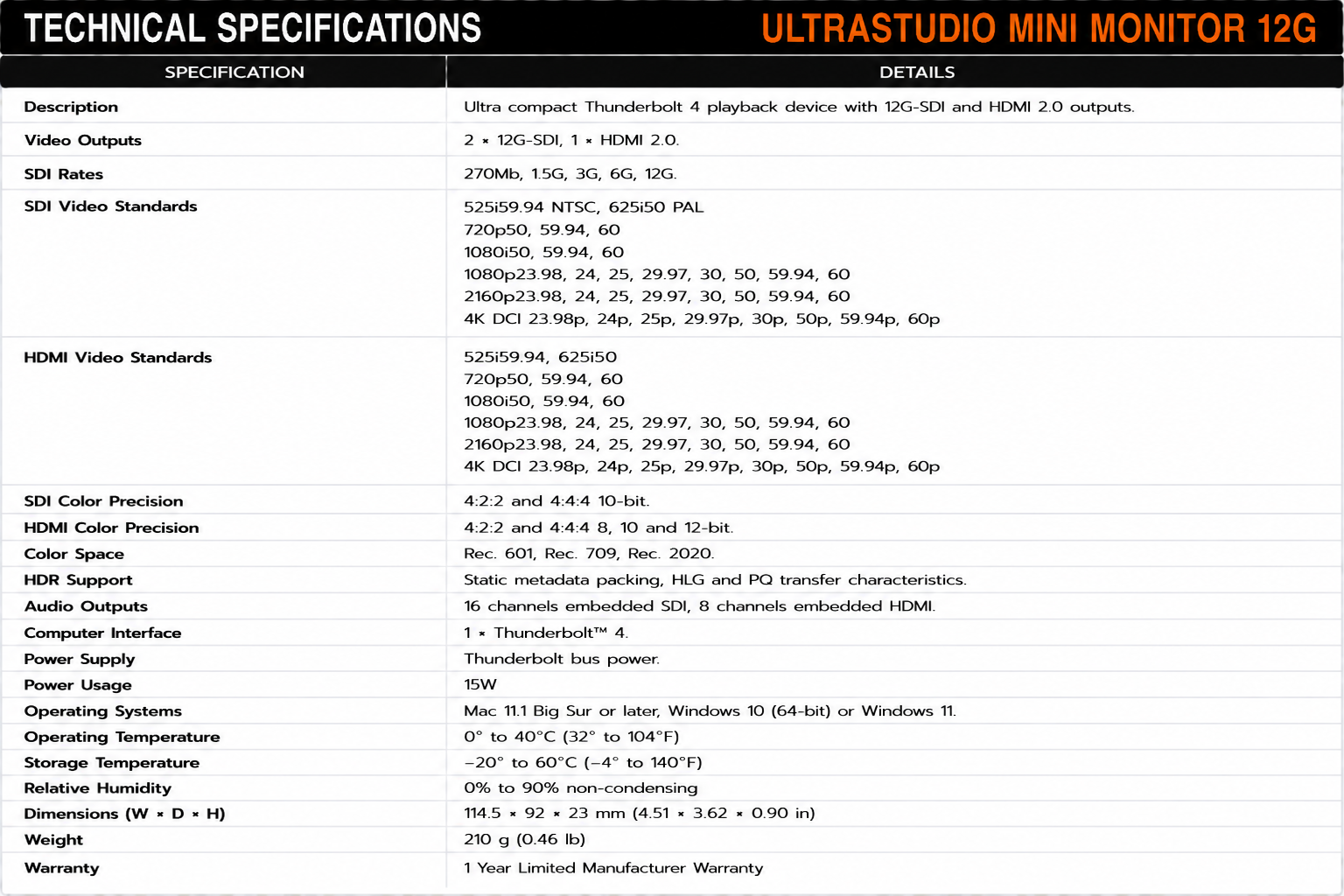

Technical Specifications +

technical specifications
