Blackmagic Videohub 20x20 12G

Blackmagic Design Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

20 × 12G-SDI inputs and 20 × 12G-SDI outputs
Zero-latency routing with simultaneous SD, HD and Ultra HD formats
Supports SDI standards up to Ultra HD 2160p60 and DCI 4K 60p
SDI reclocking on all outputs with Tri-Sync or Black Burst reference
Built-in 2.2-inch LCD with front-panel routing controls and spin knob
Gigabit Ethernet control and USB-C computer interface

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

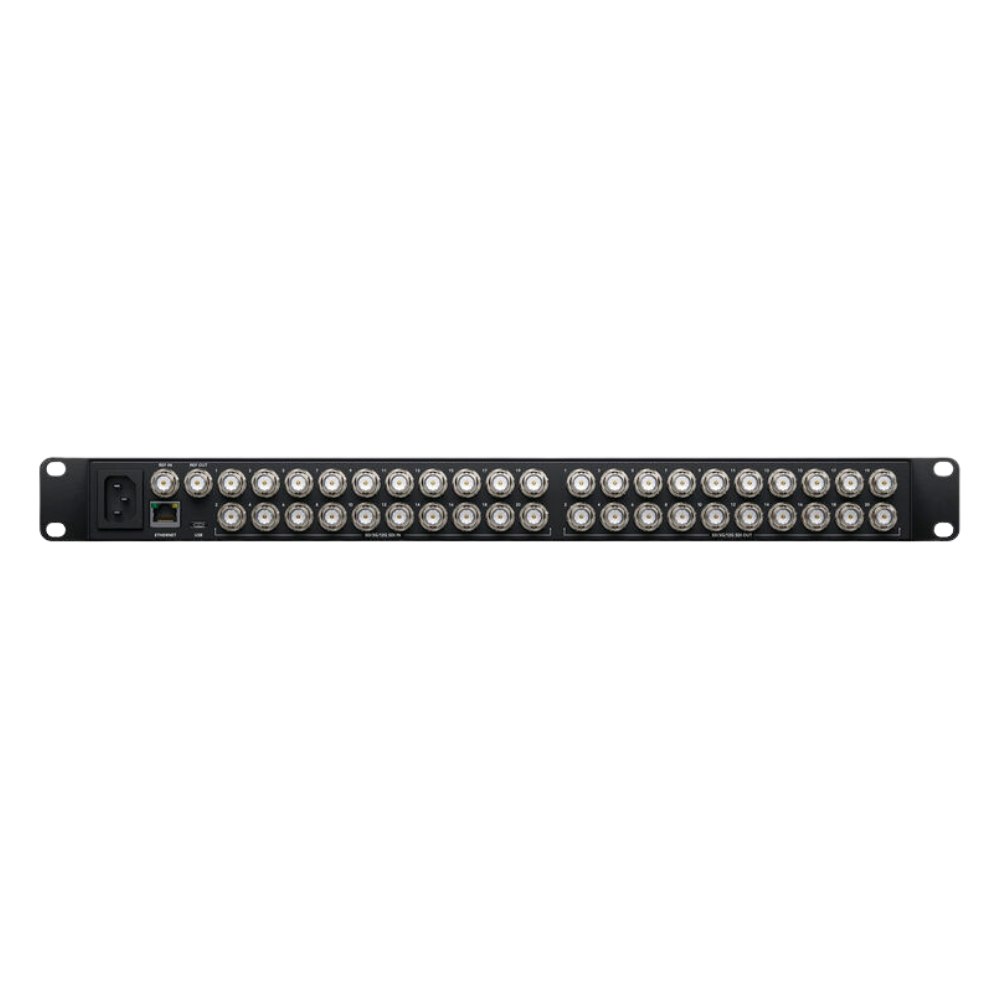

Compact 20x20 12G-SDI Routing

Blackmagic Videohub 20x20 12G combines 20 12G-SDI inputs and 20 12G-SDI outputs in a 1RU zero-latency router for professional broadcast and production workflows.

Simultaneous SD, HD and Ultra HD

Automatic per-input SDI standard selection supports 270Mb, 1.5G, 3G, 6G and 12G-SDI, allowing mixed formats on the same router up to Ultra HD 2160p60 and DCI 4K 60p.

Signal Management

All SDI outputs are reclocked, and Tri-Sync or Black Burst reference input with a terminating loop output supports synchronized facility routing.

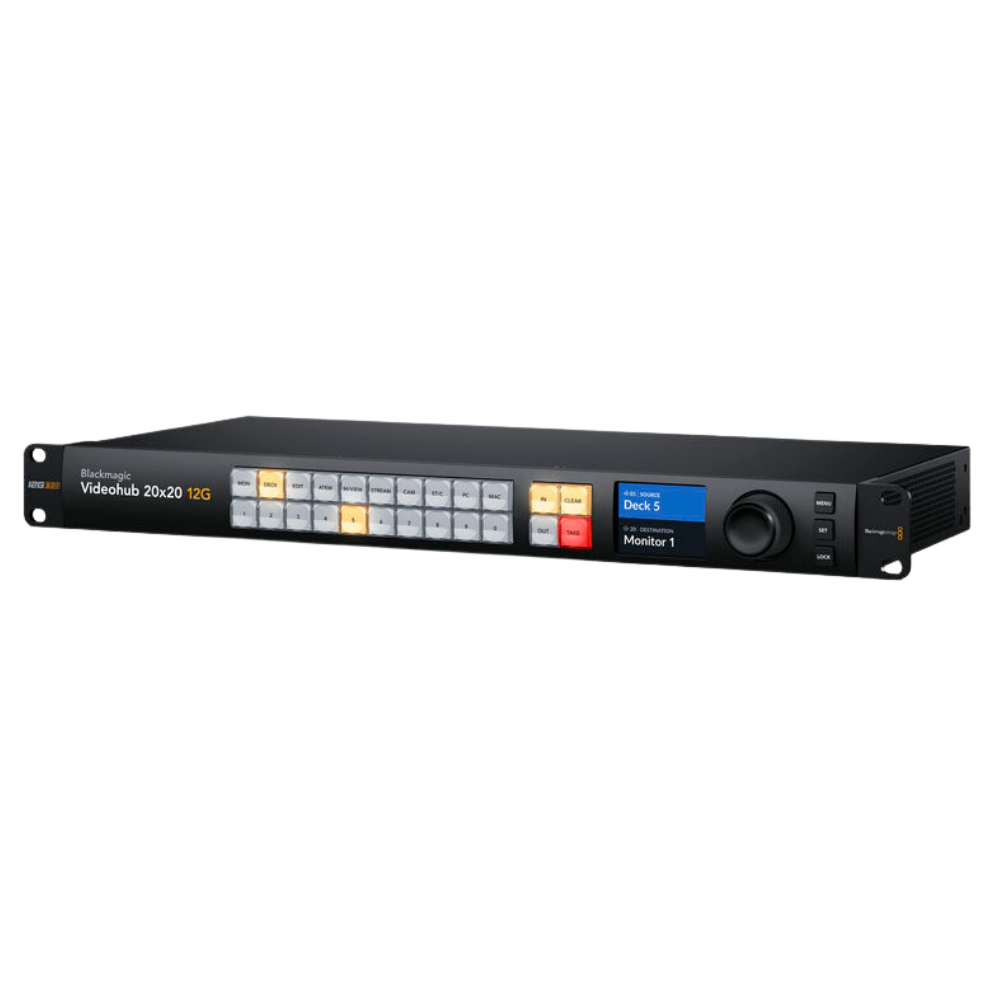

Integrated Routing Control

The built-in 2.2-inch LCD shows video and menu settings. Front-panel buttons and search dial provide local control, with Gigabit Ethernet and USB-C for software and external control.

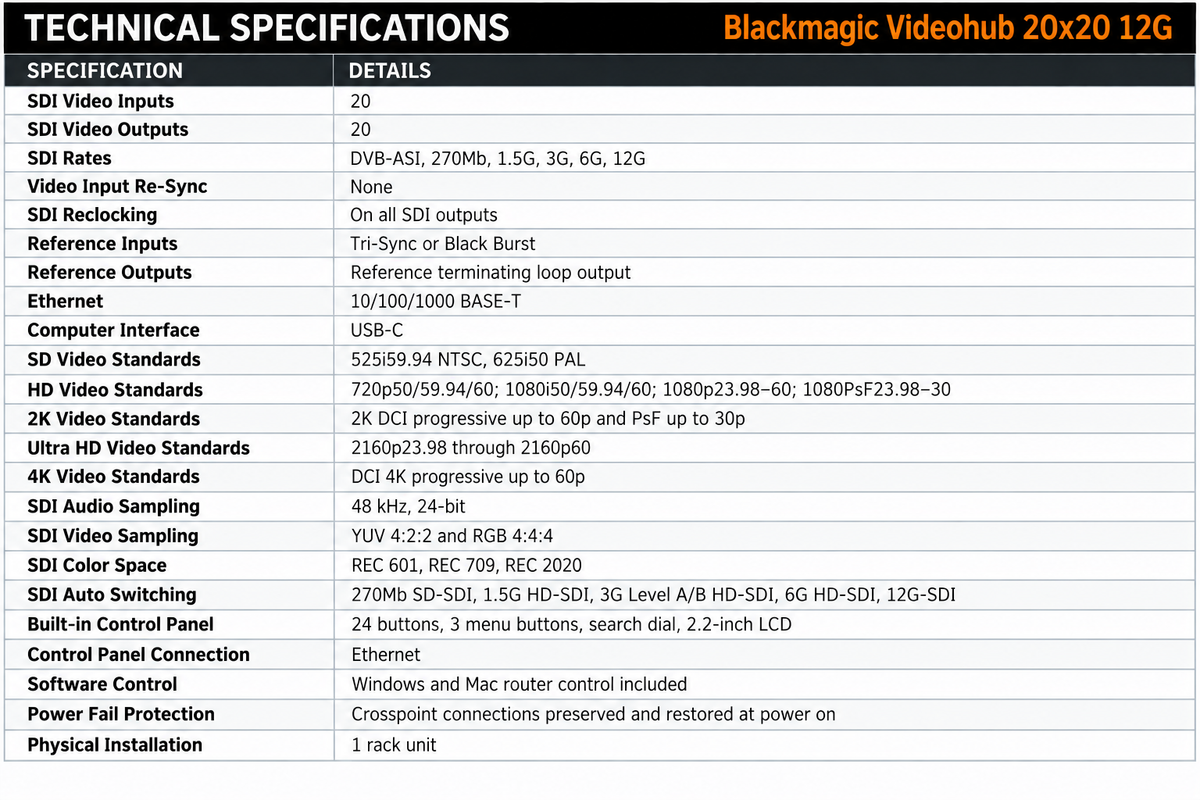

Technical Specifications +

technical specifications
