Blackmagic Videohub 40x40 12G

Blackmagic Design Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

40 × 12G-SDI inputs and 40 × 12G-SDI outputs
Zero-latency routing with simultaneous SD, HD and Ultra HD formats
Supports SDI standards up to Ultra HD 2160p60 and DCI 4K 60p
SDI reclocking on all outputs with Tri-Sync or Black Burst reference
Built-in 5-inch LCD with front-panel routing controls and spin knob
Gigabit Ethernet control, USB-C interface and redundant internal power supplies

Pricing Dhs. 0.00

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Capacity 12G-SDI Video Routing

Blackmagic Videohub 40x40 12G is a zero-latency professional video router with 40 12G-SDI inputs and 40 12G-SDI outputs, designed for broadcast, live production, post-production and professional AV facilities requiring high-density signal routing.

Simultaneous SD, HD and Ultra HD

The router supports DVB-ASI, 270Mb, 1.5G, 3G, 6G and 12G-SDI, with automatic SDI standard selection on each input. Supported video formats extend through Ultra HD 2160p60 and DCI 4K 60p.

Reclocking, Reference and Redundant Power

All SDI outputs include reclocking for reliable signal distribution. Tri-Sync or Black Burst reference connectivity supports synchronized routing, while dual internal 100–240V AC power supplies provide redundancy for critical installations.

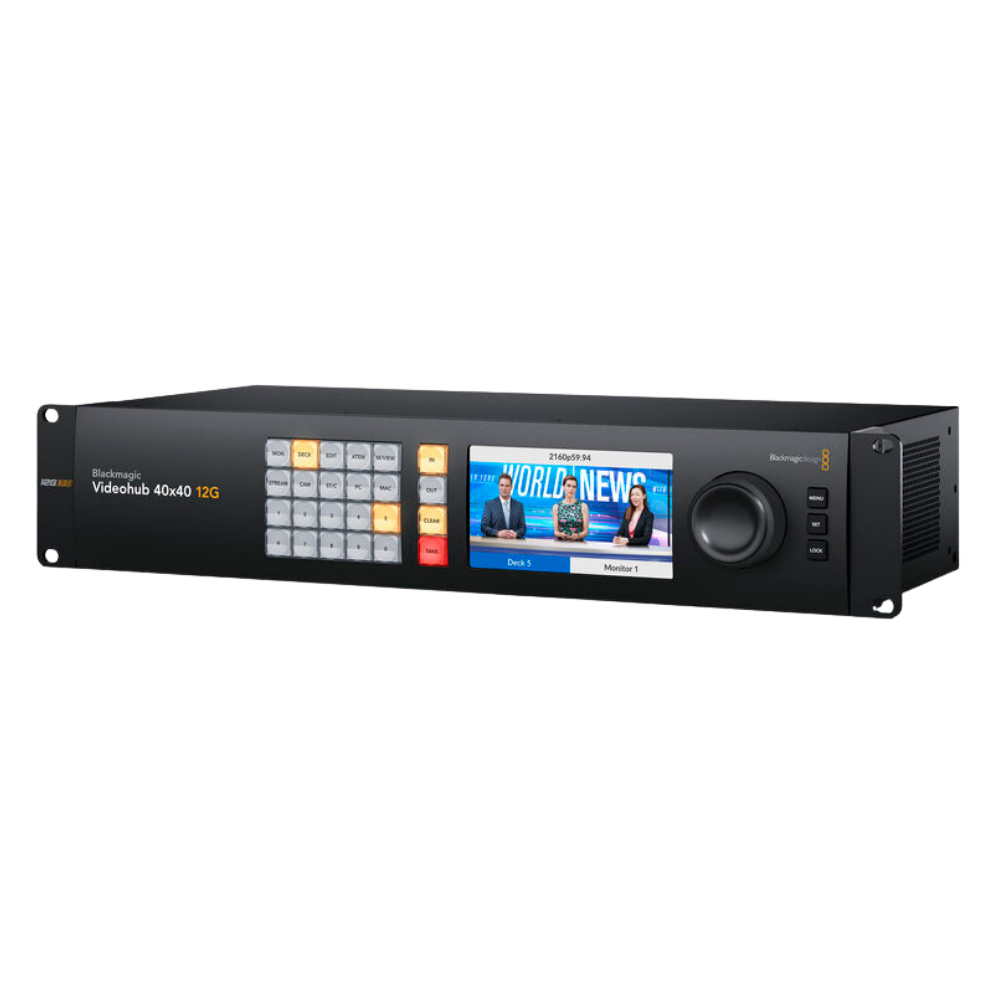

Integrated Monitoring and Control

A built-in 5-inch color LCD provides video monitoring and menu access, complemented by 24 routing buttons, menu controls and a search dial. Gigabit Ethernet and USB-C provide software configuration and external Videohub control connectivity.

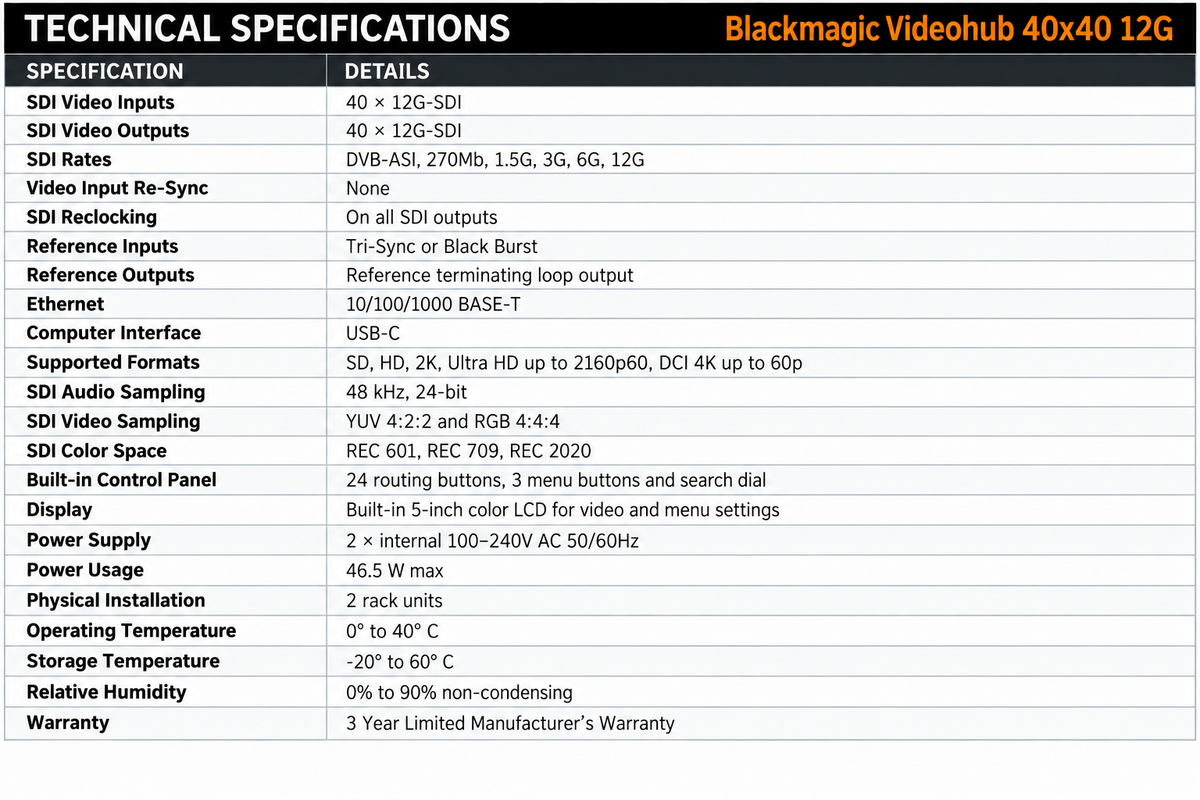

Technical Specifications +

technical specifications
