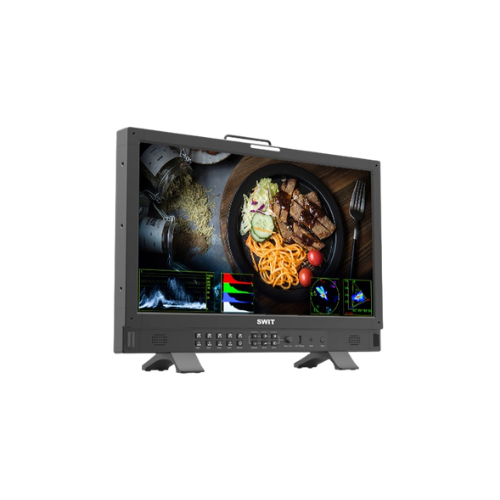

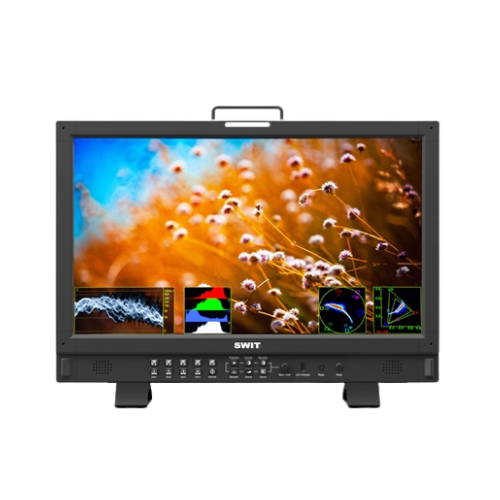

High-Brightness QLED Display for HDR Production

The BM-H215HDR features a 21.5-inch QLED panel with Full HD resolution and 1000 nits brightness, making it ideal for HDR workflows. With 100% DCI-P3 color gamut coverage and 10-bit color depth, it delivers highly accurate and vibrant color reproduction for professional video production.

4K Input Ready with Flexible Connectivity

This monitor supports multiple 4K input formats including 12G-SDI single-link 4K, quad-link 4×3G-SDI, and HDMI 2.0 (4K60P). It also supports pixel-to-pixel zoom for precise monitoring of 4K signals on the Full HD panel.

Advanced Multi-View Display Modes

Supports up to four independent input sources in multiview mode, as well as dual input PBP and PIP modes. Users can monitor multiple signals simultaneously with individual waveform, vector, and audio analysis tools applied to each input.

VICO Eye Protection Technology

Equipped with a QLED panel featuring Quantum Dot technology, the monitor reduces blue light and balances color spectrum for improved visual comfort. With a VICO score of 1.97 (A-class), it minimizes eye fatigue during long production sessions.

HDR & SDR Flexible Monitoring

Supports HLG, PQ (Dolby Vision), and S-Log3 HDR formats, along with multiple SDR gamma options. Users can switch between color gamuts including Rec.709, DCI-P3, and Rec.2020 for accurate monitoring across different workflows.

Intelligent Payload ID Auto Setting

Automatically detects input signal metadata and configures HDR/SDR EOTF, color gamut, input range, and color depth, ensuring accurate display without manual adjustments.

3DLUT Auto Calibration

Supports direct connection with X-Rite i1 and JETI Specbos probes via USB. The monitor performs automatic calibration and generates 3DLUTs for precise color accuracy (ΔE≤1.0), eliminating the need for external software.

Zero Latency Monitoring

Designed for real-time production, the monitor offers ultra-low latency processing (less than 1/100 frame), ensuring perfect synchronization between audio and video.

Professional Monitoring & Audio Tools

Includes waveform, vector scope, histogram, eye pattern, focus assist, false color, and zebra tools. Additionally, it supports 16-channel audio meters, Lissajous patterns, and 5.1/7.1 surround sound phase monitoring.

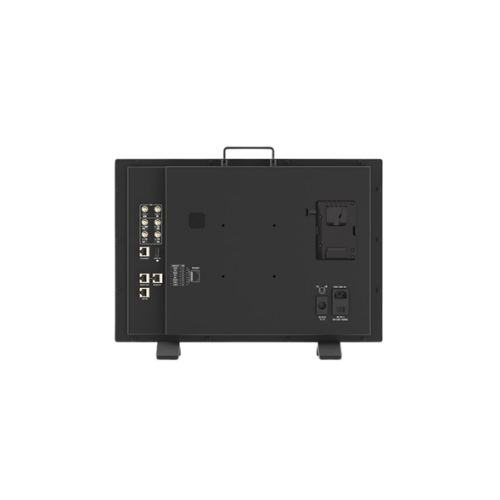

Network Remote Control & Power Flexibility

With built-in webserver support, users can control the monitor via LAN using a web browser. The monitor supports both AC power and DC input (4-pin XLR) and includes a V-mount battery plate for portable operation.
