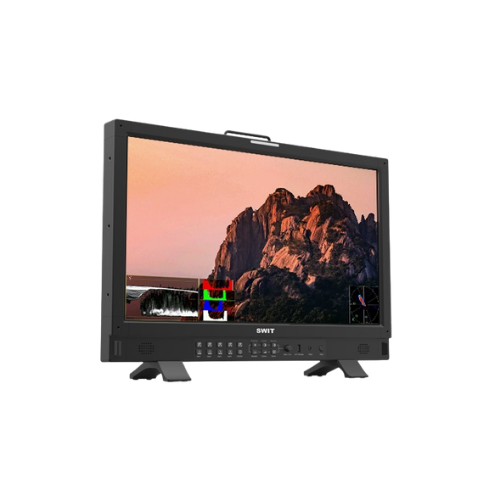

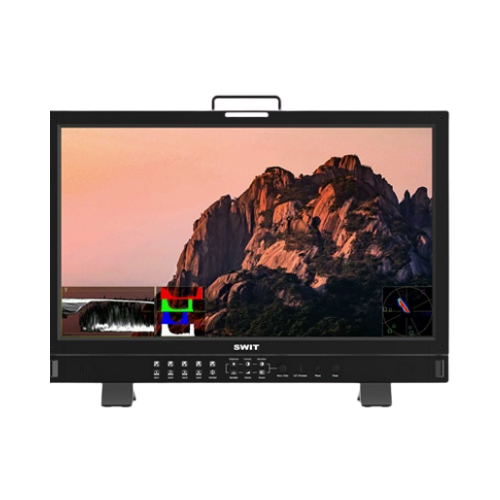

23.8-inch QLED Display with Wide Color Gamut

The BM-H245 features a 23.8-inch Full HD QLED panel with 100% DCI-P3 color coverage, delivering vibrant and accurate color reproduction. With 400 nits of brightness and wide viewing angles, it is well-suited for broadcast and film production environments.

4K Input Ready with Flexible Connectivity

The monitor supports multiple 4K input formats, including 12G-SDI single-link, quad-link 4×3G-SDI, and HDMI 2.0 (4K60P). It also allows pixel-to-pixel zoom, enabling precise monitoring of 4K signals on the Full HD display.

Multi-View & Dual Screen Monitoring

Supports up to four input sources in multiview mode and dual input display via PBP (Picture-by-Picture) and PIP (Picture-in-Picture). Each input can be monitored with independent waveform, vector, and audio tools.

VICO Eye Protection Technology

The integrated Quantum Dot layer reduces blue light and balances RGB output for improved visual comfort. With a VICO score of 1.97 (A-class), it minimizes eye strain during extended usage in production environments.

HDR & SDR Flexible Viewing

Supports HLG, PQ (Dolby Vision), and S-Log3 HDR formats, along with multiple SDR gamma options. Users can switch between Rec. 709, DCI-P3, and Rec. 2020 color gamuts for accurate monitoring across workflows.

Intelligent Payload ID Auto Setting

Automatically detects input signal metadata and configures EOTF, color space, and color depth, ensuring precise and hassle-free monitoring.

3DLUT Auto Calibration

Supports direct connection with X-Rite i1 and JETI Specbos probes via USB. The monitor automatically calibrates itself and generates 3DLUTs for high color accuracy (ΔE≤1.0).

Zero Latency Monitoring

Designed for live production, the monitor provides ultra-low latency processing (less than 1/100 frame), ensuring perfect synchronization between audio and video.

Advanced Monitoring & Audio Tools

Includes waveform, vector scope, histogram, eye pattern, focus assist, false color, and zebra tools. It also supports 16-channel audio meters, Lissajous patterns, and 5.1/7.1 surround sound phase monitoring.

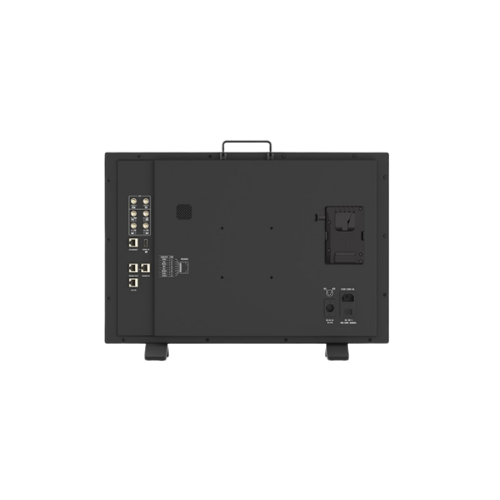

Network Remote Control & Power Flexibility

With built-in webserver support, users can control the monitor via LAN using a browser. The monitor supports both AC and DC power input (4-pin XLR) and includes a V-mount battery plate for portable use.
