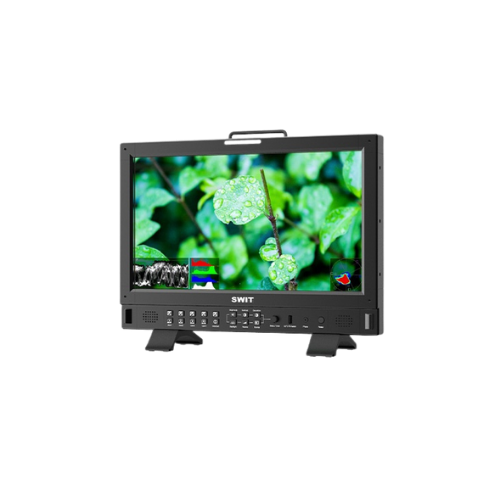

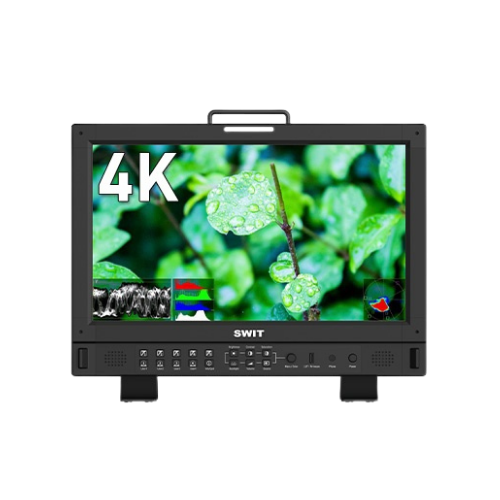

Compact 17.3-inch UHD Display

The BM-U175 features a 17.3-inch UHD LCD panel with 3840×2160 resolution, offering sharp image clarity in a compact form factor. With 91.5% DCI-P3 color gamut and wide viewing angles, it delivers reliable color accuracy suitable for professional monitoring environments.

4K/8K Professional Connectivity

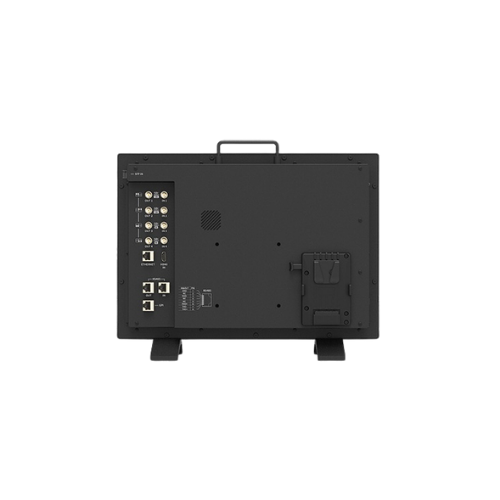

Equipped with 12G-SDI 4-in/4-out interfaces, the monitor supports single-link 4K, quad-link 4K, and quad-link 8K inputs. HDMI 2.0 ensures compatibility with modern devices, while optional SFP fiber modules allow integration with 12G-SDI and ST2110 IP workflows.

HDR & SDR EOTF Support

Supports HLG, PQ (Dolby Vision), and S-Log3 HDR formats, along with multiple SDR gamma settings. Users can also select color gamuts such as BT.709, DCI-P3, and BT.2020 for flexible production requirements.

Intelligent Payload ID Detection

With Payload ID auto setting, the monitor automatically configures HDR/SDR parameters including EOTF, color space, and color depth, ensuring accurate display without manual adjustments.

Multi-View Monitoring Capability

The monitor supports up to four independent 4K inputs simultaneously or displays a single input across four windows with different HDR/SDR and color settings. This enables efficient monitoring in multi-camera and HDR/SDR production workflows.

3DLUT Auto Calibration

Built-in calibration software allows direct connection to X-Rite i1 and JETI Specbos probes via USB. The monitor automatically generates and applies 3DLUTs, ensuring high color accuracy (ΔE≤1.0) without the need for external systems.

Zero Latency Performance

Designed for real-time production, the monitor provides ultra-low latency (less than 1/100 frame), ensuring precise synchronization between audio and video for live broadcast environments.

Professional Monitoring Tools

Includes waveform, vector scope, histogram, focus assist, false color, zebra, and eye pattern tools. These features provide accurate analysis of exposure, color, and signal integrity.

Rack-Mountable Design for Studio Integration

The BM-U175 is designed for professional rack setups with 19-inch rack compatibility and 7U height, making it ideal for broadcast studios, OB vans, and control rooms.

Network Remote Control

The built-in webserver allows remote operation via LAN. Users can control settings, switch inputs, and manage monitoring tools directly from a web browser without additional software.
