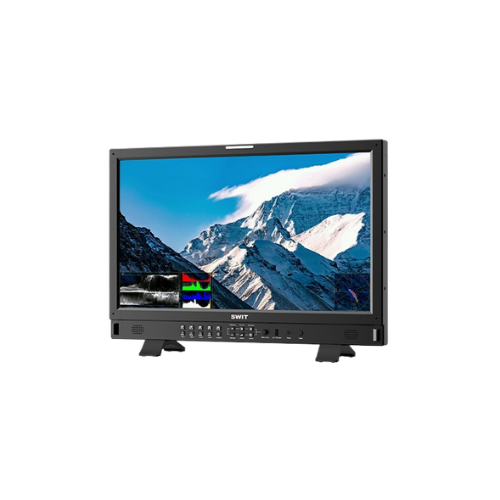

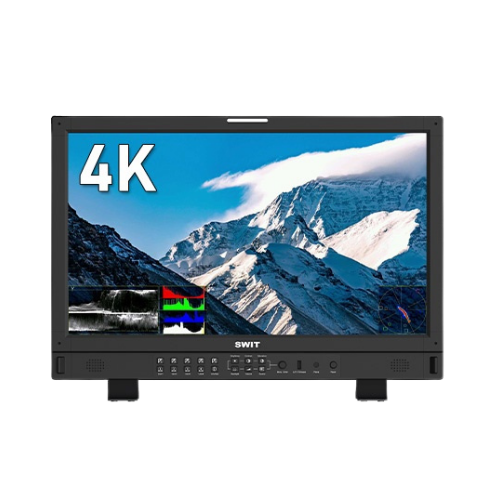

23.8-inch UHD Display with Accurate Color

The BM-U245 features a 23.8-inch 10-bit LCD panel with 3840×2160 resolution, delivering sharp image clarity for professional monitoring. With 94.1% DCI-P3 color gamut, 1000:1 contrast ratio, and wide viewing angles, it ensures consistent and accurate visuals for broadcast and production workflows.

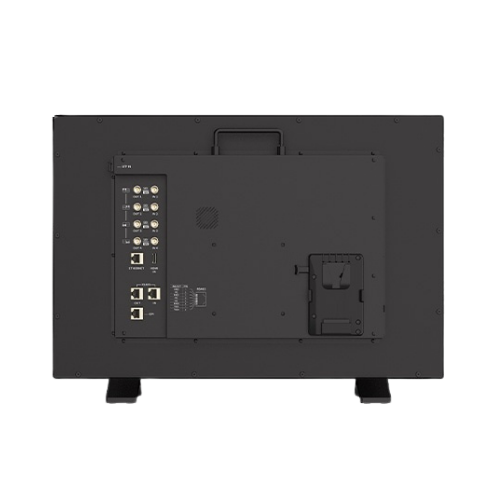

Advanced 4K/8K Connectivity

Equipped with 12G-SDI 4-in/4-out interfaces, the monitor supports single-link 4K, quad-link 4K, and quad-link 8K inputs. HDMI 2.0 input allows smooth 4K60P monitoring, while optional SFP fiber modules enable 12G-SDI and ST2110 IP integration for modern production environments.

HDR & SDR EOTF Support

Supports a wide range of HDR formats including HLG, PQ (Dolby Vision), and S-Log3, along with SDR gamma options. The monitor also allows selection between multiple color gamuts such as BT.709, DCI-P3, and BT.2020 for flexible workflows.

Intelligent Payload ID Auto Setting

With Payload ID auto detection, the monitor automatically configures HDR/SDR settings, including EOTF, color gamut, input range, and color depth. This ensures accurate display without manual setup.

Multi-View & Flexible Monitoring

The monitor supports up to four independent 4K inputs simultaneously, or displays a single input across four windows with different HDR/SDR and color configurations. This is ideal for simultaneous HDR and SDR production.

3DLUT Auto Calibration

Built-in calibration software supports direct connection to X-Rite i1 and JETI Specbos probes via USB. The monitor automatically generates 3DLUTs, ensuring precise color accuracy (ΔE≤1.0) without requiring a PC.

Zero Latency Performance

With ultra-low latency processing (less than 1/100 frame), the monitor ensures perfect synchronization between audio and video, making it suitable for live production and lip-sync critical workflows.

Professional Monitoring Tools

Includes waveform, vector scope, histogram, focus assist, false color, zebra, and eye pattern analysis tools, enabling precise control over exposure, color grading, and signal quality.

Network Remote Control

The built-in webserver allows remote control via LAN using a web browser. Users can easily adjust settings, switch inputs, and configure monitoring features without installing additional software.
