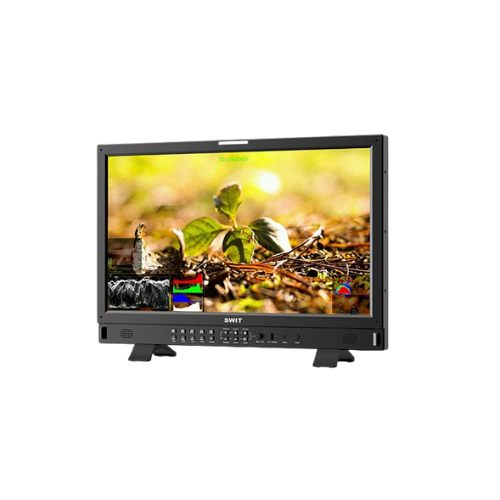

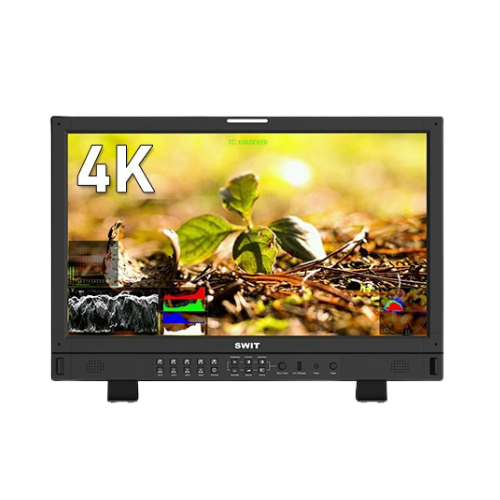

High-Brightness 4K UHD Display

The BM-U245HDR features a 23.8-inch 10-bit LCD panel with ultra-high-definition 3840×2160 resolution. With 1000 nits brightness, 1000:1 contrast ratio, and wide color gamut support (91.9% DCI-P3 and 89% Rec.2020), it delivers exceptional clarity and accurate color reproduction for professional broadcast and studio environments.

Advanced 4K/8K Connectivity

Equipped with 12G-SDI 4-in/4-out interfaces, the monitor supports single-link 4K, quad-link 4K, and quad-link 8K workflows. HDMI 2.0 input ensures compatibility with modern devices, while optional SFP fiber modules enable 12G-SDI and ST2110 IP signal transmission for advanced broadcast setups.

HDR Monitoring & Intelligent EOTF Matching

Supporting HLG, PQ (Dolby Vision), and S-Log3 HDR formats, the monitor ensures accurate HDR content display. With Payload ID auto-detection, it intelligently configures HDR/SDR settings, including EOTF, color space, and gamut, eliminating manual adjustments.

Multi-View & Flexible Display Modes

The monitor supports multiple input formats and can display up to four independent 4K signals simultaneously. Users can also view the same input across four windows with different HDR/SDR and color gamut settings, making it ideal for HDR/SDR simultaneous production.

3DLUT Auto Calibration

Built-in calibration software allows direct connection with X-Rite i1 and JETI Specbos probes via USB. The monitor automatically generates and applies 3DLUTs for precise color accuracy (ΔE≤1.0), eliminating the need for external calibration software.

Professional Monitoring Tools

Includes waveform, vector scope, histogram, focus assist, false color, zebra, and eye pattern analysis. These tools ensure accurate exposure, color grading, and signal quality monitoring, essential for professional workflows.

Zero Latency Performance

With ultra-low latency processing (less than 1/100 frame), the monitor ensures perfect synchronization between audio and video, making it ideal for live production and lip-sync critical applications.

Network Remote Control

The built-in webserver allows full remote control via LAN connection. Users can adjust settings, switch inputs, and manage configurations directly from a web browser without installing additional software.
