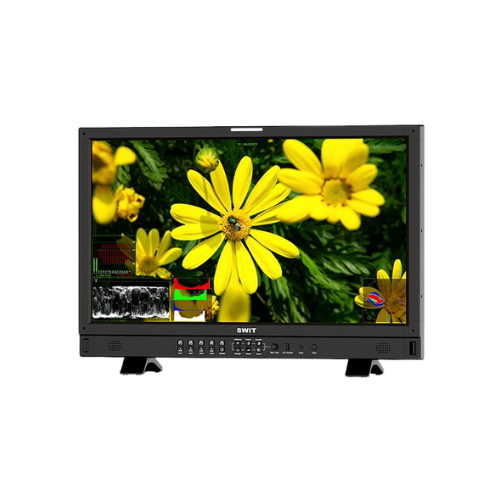

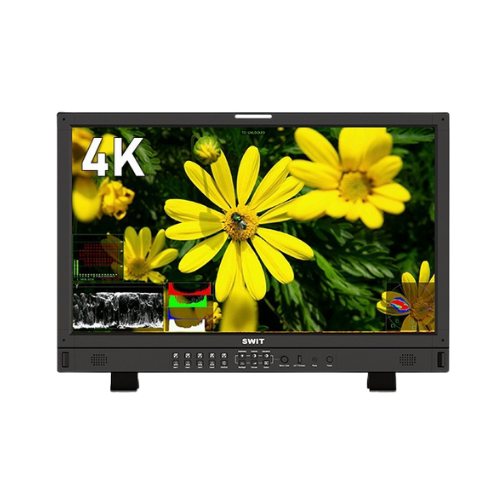

4K UHD HDR Display

The BM-U275HDR features a 27-inch UHD 3840×2160 LCD panel with 1000nits brightness, delivering clear and accurate HDR monitoring. Its 10-bit panel ensures smooth gradients and professional image quality.

Wide Color Gamut Performance

With 97.2% DCI-P3 coverage, the monitor provides precise and consistent color reproduction, making it suitable for professional broadcast, film production, and post-production workflows.

Multi 4K and 8K Interface Support

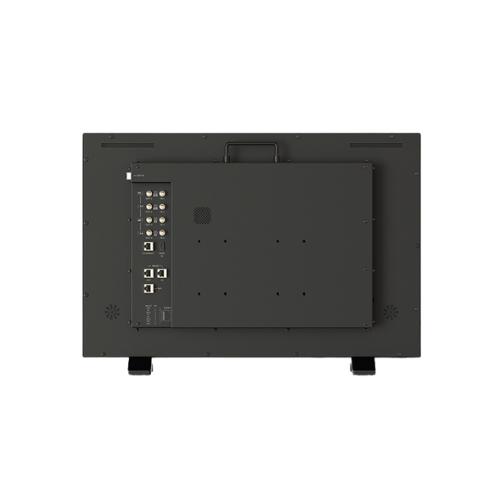

Equipped with 12G-SDI 4-in/4-out, HDMI 2.0, and optional SFP fiber input, the monitor supports single-link 4K, quad-link 4K, and quad-link 8K signals for advanced production environments.

Flexible Multi-View Monitoring

Supports multi-view workflows with up to 4 inputs displayed simultaneously. Users can monitor mixed formats and independently adjust waveform, vector scope, audio meters, HDR settings, and color gamut for each input.

HDR Support with Auto Detection

Supports HLG, PQ, and S-Log3 HDR formats. With payload ID auto detection, the monitor automatically configures EOTF, color space, and signal parameters for accurate display.

3DLUT Calibration and LUT Support

The built-in 3DLUT auto calibration allows direct probe connection without a computer. It also supports user LUT uploads via USB for customized color workflows.

Zero Latency Monitoring

Designed for precision, the monitor offers near-zero latency (less than 1/100 frame), ensuring perfect synchronization for live production and lip-sync critical applications.

Professional Monitoring Tools

Includes waveform, vector scope, histogram, focus assist, zebra, and false color tools to assist with accurate exposure, focus, and signal evaluation.

Advanced Audio Monitoring

Supports up to 16-channel embedded audio meters, selectable audio output, and Lissajous patterns for professional audio signal monitoring.

Remote Control and Broadcast Integration

Features IP webserver remote control via Ethernet, along with TSL UMD and tally support for seamless integration into broadcast environments.
