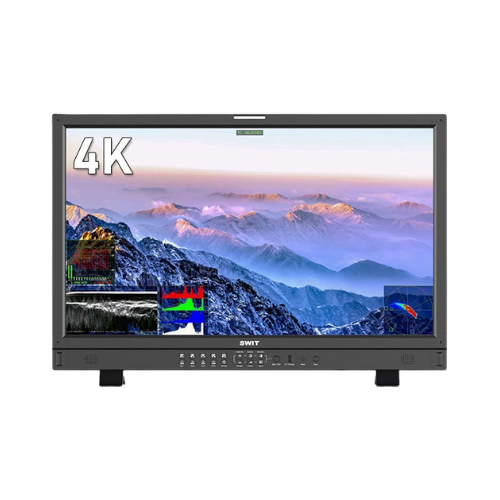

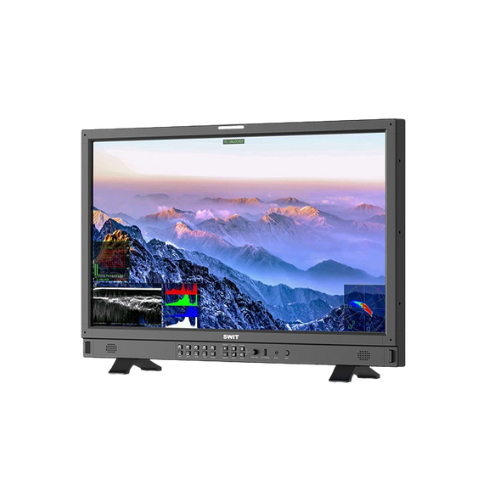

Large 31.5-inch UHD Display with Wide Color Gamut

The BM-U325 features a 31.5-inch 10-bit LCD panel with 3840×2160 resolution, offering exceptional clarity and workspace. With 99.4% DCI-P3 color gamut and 3000:1 contrast ratio, it ensures highly accurate color reproduction, making it ideal for professional color grading and broadcast monitoring.

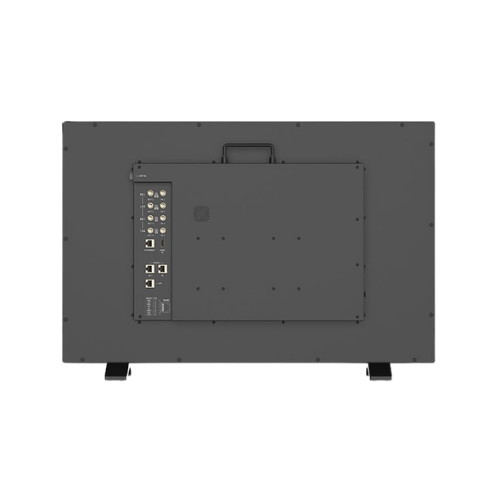

Advanced 4K/8K Connectivity

Equipped with 12G-SDI 4-in/4-out interfaces, the monitor supports single-link 4K, quad-link 4K, and quad-link 8K workflows. HDMI 2.0 input allows seamless 4K60P monitoring, while optional SFP fiber modules enable 12G-SDI and ST2110 IP integration for modern IP-based production environments.

HDR & SDR EOTF Support

The monitor supports multiple HDR formats including HLG, PQ (Dolby Vision), and S-Log3, along with SDR gamma options. It also provides flexible color gamut selections such as BT.709, DCI-P3, and BT.2020, ensuring accurate monitoring across different production standards.

Intelligent Payload ID Auto Configuration

With Payload ID auto detection, the monitor automatically configures HDR/SDR settings, including EOTF, color space, input range, and color depth. This reduces manual setup time and ensures accurate signal interpretation.

Multi-View and Flexible Monitoring

Supports displaying up to four independent 4K inputs simultaneously or duplicating a single input across four windows with different HDR/SDR and color gamut settings. This is highly useful for simultaneous HDR and SDR production workflows.

3DLUT Auto Calibration

Built-in calibration software allows direct connection to X-Rite i1 and JETI Specbos probes via USB. The monitor automatically generates and applies 3DLUTs, achieving high color accuracy (ΔE≤1.0) without requiring a computer.

Zero Latency Processing

The monitor ensures ultra-low latency (less than 1/100 frame), making it ideal for live production environments where accurate lip-sync and real-time monitoring are critical.

Professional Monitoring Tools

Includes waveform, vector scope, histogram, focus assist, false color, zebra, and eye pattern tools. These tools provide precise control over exposure, color, and signal quality.

Network Remote Control

With built-in webserver support, users can control the monitor via a web browser over LAN. Adjust settings, switch inputs, and configure monitoring tools without installing additional software.
