Unified IP and Video Network Infrastructure Framing

The Canare 24-Port Keystone IP Panel Series fills a critical need in modern broadcast stations, transmitter facilities, and hybrid IP production environments. By designing these data panels to perfectly match the sleek industrial style of classic video patchbays, Canare allows integration teams to build clean, uniform rack faces. This approach avoids the chaotic, cluttered look that often happens when mixing IT networking hardware with specialized television routing gear.

Field-Proven Ruggedness for Mobile Remote Production

Built to handle the harsh demands of live remote production, this series features a robust, heavy-duty chassis. It is thoroughly vibration-tested, ensuring total connection reliability inside mobile tracking trucks, flight cases, and OB vans where constant movement can loosen standard commercial IT joints. For shielded networks, the mainframe comes standard with dedicated grounding point positions and grounding stickers, which help eliminate dangerous ground loops and drain static electricity from data lines.

Tool-Less Modular Adaptability and Depth Management

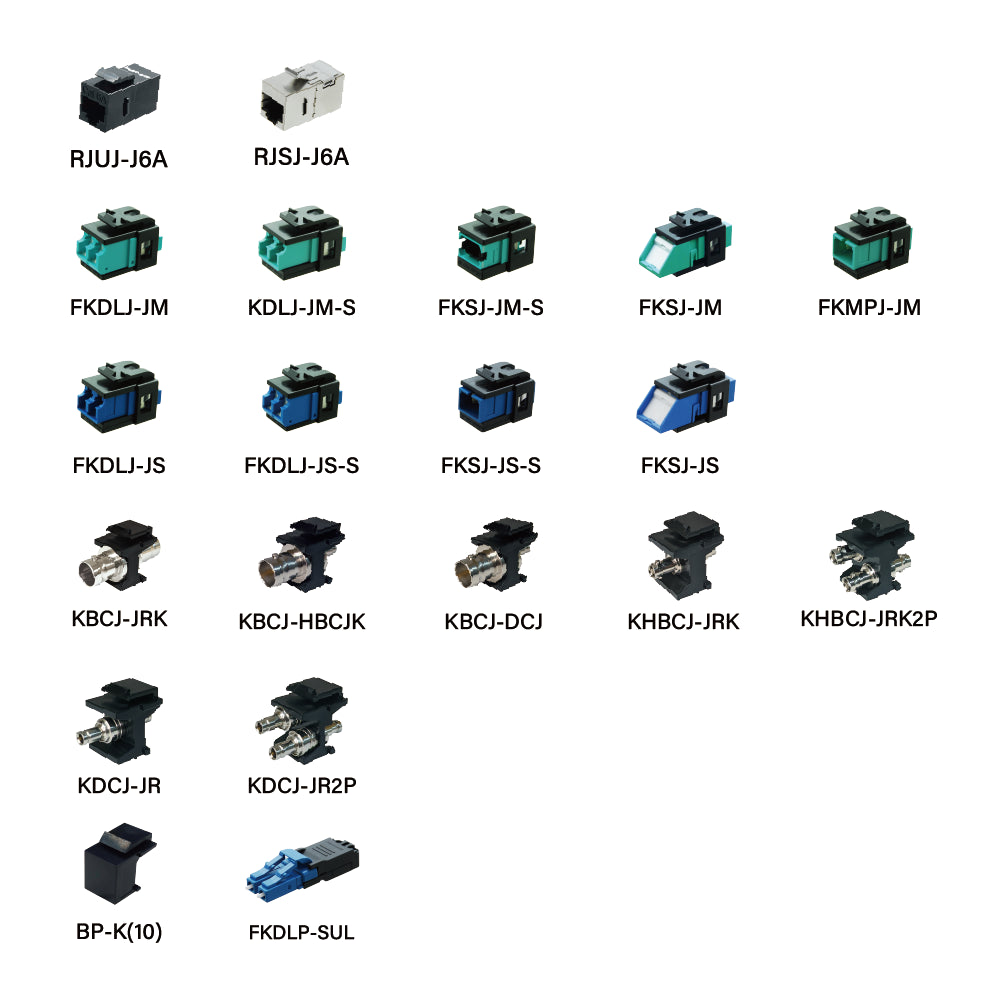

The layout can be completely customized using the integrated snap-in keystone windows. Technicians can quickly swap out or change data paths from the front of the panel using a standard flathead screwdriver. This framework lets you seamlessly combine CAT6A network feeds, high-bandwidth single-mode or multi-mode fiber runs, and 12G-SDI ultra-HD coaxial lines within a single 1 RU footprint. If rack doors or thick cable loops require extra clearance, the standard mounting ears can easily shift back by 25 mm. Upgrading to the optional M-MA1U02A bracket set unlocks deeper recesses of 50 mm or 75 mm for maximum cable protection.
