High-Performance Cable Terminations for Modern Broadcast Infrastructure

The Canare 75-Ohm Straight BNC Crimp Plug series stands as an industry-standard hardware solution, operating as a specialized high-frequency RF connector line engineered for field assembly, infrastructure wiring, and studio integration within digital broadcast networks. Low-grade or mismatching BNC terminals can easily corrupt high-speed digital streams, leading to sync dropouts, high return loss, and data errors. Canare’s crimp design solves these transmission issues, turning bulk coaxial lines into precise, broadcast-grade video patch cords.

Secure Mechanical Integrity for High-Density Patch Fields

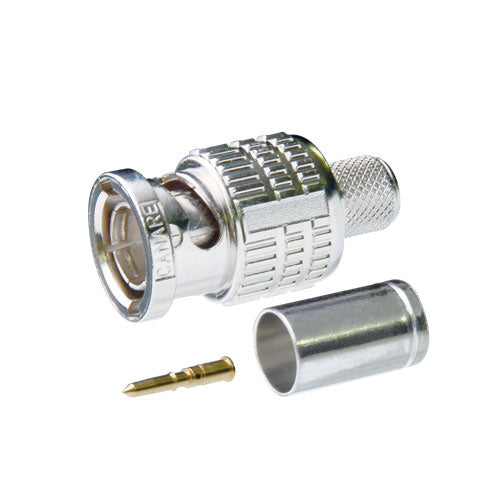

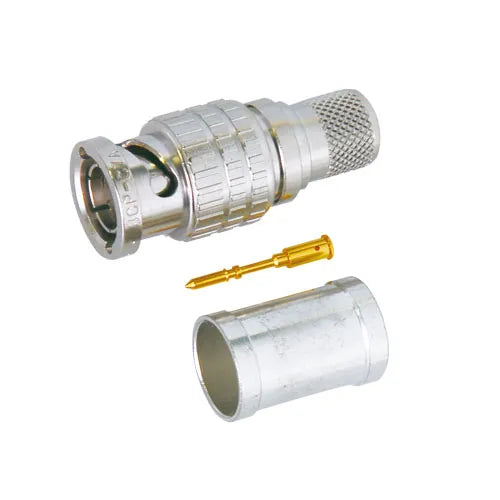

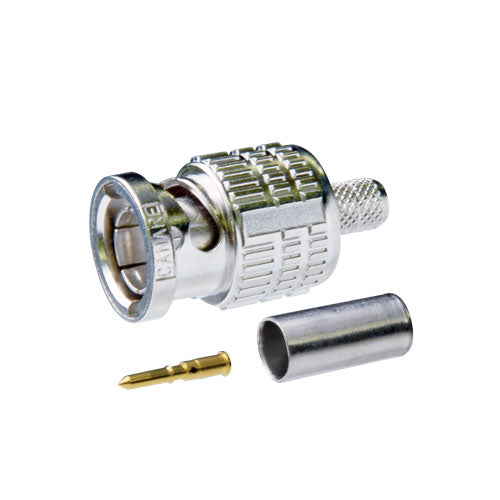

To prevent data loss from physical strain or operational movement, this connector family relies on a two-piece internal safety locking system. When inserting the prepared center conductor into the main body shell, the gold-plated crimp pin clicks audibly into an internal plastic retention sleeve. This structure holds the terminal steady, keeping the internal pin from sliding back or rotating when the outer locking collar is twisted onto high-density router blocks.

Crucial Assembly Note: To verify proper characteristic performance and meet certified return loss standards, these connectors must be terminated using official Canare crimp tools (such as the TC-1 or TC-2) and the exact matching die sets specified for each cable size.

Targeted Performance Tiers for Modern UHD and Legacy Layouts

This broad connector suite is organized into four distinct tiers to help engineers choose the exact performance level and material finish needed for their venue setup:

• BCP-D Next-Gen 12G-SDI Series: Designed for uncompressed 4K video workflows, maintaining a return loss performance of $20\text{ dB at }6\text{ GHz}$ and $15\text{ dB at }12\text{ GHz}$. It fits perfectly with premium 4K bulk lines like L-3.3CUHD and L-5.5CUHD.
• BCP-B High-Performance 3G-SDI Series: The standard workhorse for high-definition studio environments, delivering a high return loss of $26.4\text{ dB at }3\text{ GHz}$. This series features an external alignment mark that allows quick visual checks to confirm the connector is fully locked.
• BCP-A Cost-Effective HD-SDI Series: An affordable, entry-level broadcast series optimized for high-density 1080i infrastructure builds, camera links, and analog baseband lines using standard cables like L-4CFB and RG-59B/U.
• BCP-C Machined Specialty Series: Premium connectors built using a precision lathe-cutting process to deliver tight tolerances and a smooth finish. This series is ideal for custom installation environments where appearance and craftsmanship are a priority.
