Professional Chassis Terminations for Centralized Signal Routing

The Canare BCJ 75-Ohm BNC Panel-Mount Receptacle series provides a versatile chassis connectivity solution, operating as a specialized chassis-mount RF distribution interface engineered for custom patch panels, broadcast wall plates, studio facility boxes, and terminal IO frames. Open bulk cable runs are highly vulnerable to dust, moisture, and pull tension inside central server racks or stage floors. Integrating Canare's rugged bulkhead receptacles turns raw terminal wiring into a organized patch field, allowing rapid, secure equipment reconfigurations without placing physical strain on internal components.

Resilient Mechanical Protection via Flush-Mount Flanges

To shield delicate high-frequency connection points from physical damage on active stage layouts or crowded technical areas, this series relies on recessed flush-mount flanges. These housings use standardized industrial mounting holes, such as the ITT XLR-F77 pattern or the popular Neutrik D-style frame. By recessing the core female barrel slightly behind the front faceplate margin, the outer frame absorbs horizontal shear force and crushing impacts, protecting your digital signals from dropouts caused by bent equipment jacks or shifted connectors.

Important Integration Warning: Only the Jack-to-Jack pass-through family (BCJ-JRK, BCJ-JRUK, and the BCJ-JRUD line) is rated for high-bandwidth 12G-SDI Ultra HD applications. The solder-tail and crimp-sleeve configurations are optimized for lower-frequency distribution layouts, delivering high return loss up to 1 GHz or 2 GHz.

Product Performance Classification

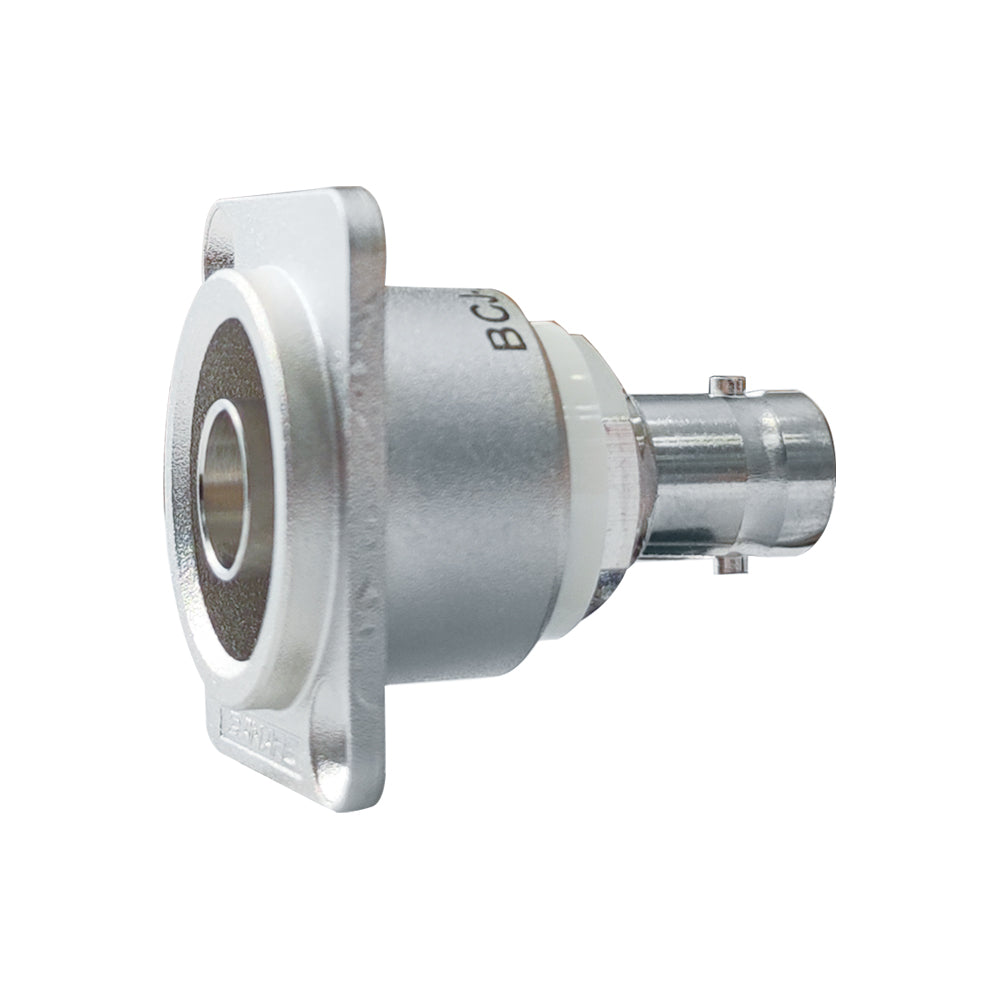

1. Jack-to-Jack Feed-Through Series (12G-SDI Certified)

Built for uncompressed 4K workflows, this tier requires no terminal soldering or field crimping tools. It allows technicians to connect standard pre-made male BNC lines on both sides of a rack wall, delivering a stable return loss of $15\text{ dB at }12\text{ GHz}$.

• BCJ-JRK: Standard un-flanged standoff barrel configuration, perfect for custom thin metal rack brackets or close internal busbars.
• BCJ-JRUK: Equipped with an ITT XLR-F77 pattern flush-mount frame.
• BCJ-JRUDK / BCJ-JRUDBK: Uses a Neutrik D-type mounting flange, available in a classic silver finish (DK) or a sleek black finish (DBK).

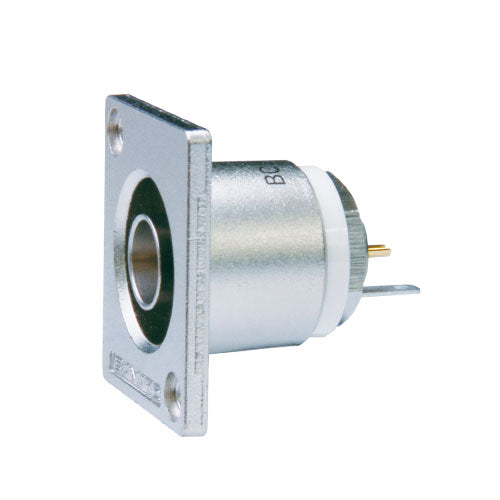

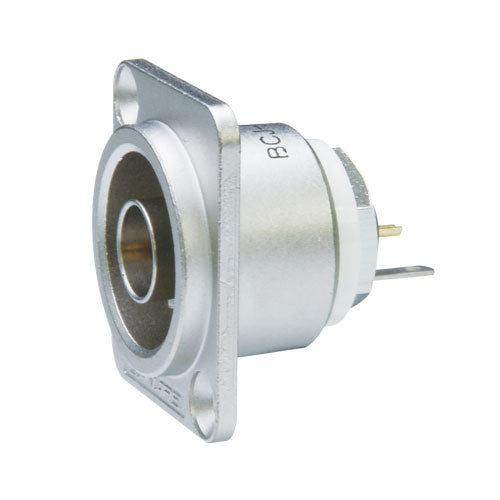

2. Jack-to-Solder Chassis Series (Legacy SDI & Analog)

Designed for custom bench assemblies, internal rack gear links, and power chassis distribution boards. This group features a standard female front port paired with a rear solder pocket cup, delivering a return loss of $26.4\text{ dB at }2\text{ GHz}$.

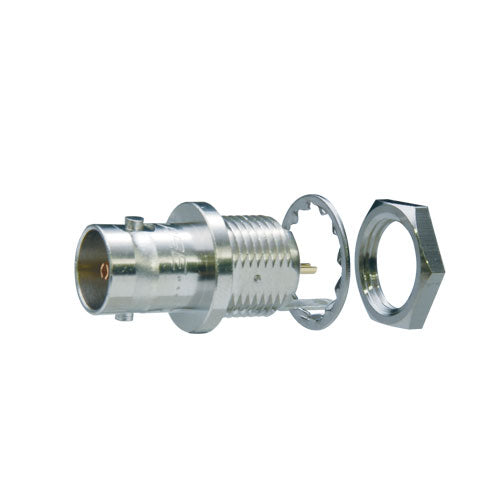

• BCJ-R: Standard rear-mount threaded thread body barrel.
• BCJ-R/1: Rear-mount configuration fitted with an integrated chassis grounding lug washer to isolate noise.
• BCJ-RU / BCJ-RUD / BCJ-RUDB: Flush-mount variations matching standard ITT XLR-F77, silver Neutrik D, or black Neutrik D panel cutouts.

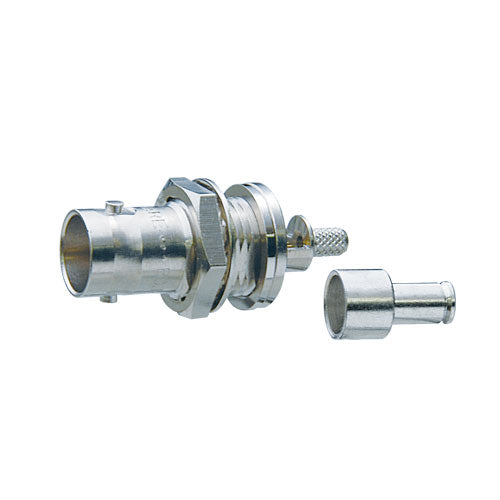

3. Panel Jack Series (Solder Crimp Combo)

An excellent space-saving choice for internal rack wiring and compact terminal installations. This tier features a solder-contact core center pin enclosed by a metal crimp-sleeve barrel on the back to secure the cable shield, maintaining a clean signal path up to 1 GHz.

• BCJ-FC1 / BCJ-FC1-7/16: Front-mount panel chassis configurations built to fit slim 1.5C-2V internal jumper lines.
• BCJ-RUC1: Premium flush-mount configuration built into an ITT XLR-F77 pattern panel housing.
