High-Density Board-Level Audio-Visual Engineering

The Canare BCJ PCB-Mount 75-Ohm BNC Receptacle series delivers an advanced component-level connectivity solution, operating as a specialized printed circuit board (PCB) RF connector engineered for direct wave-soldering, rear-panel interface configuration, and uncompressed high-frequency signal routing within 12G-SDI UHD and 3G-SDI HD equipment hardware. When building professional hardware like hardware video switchers, multi-viewers, PCIe capture cards, and distribution amplifiers, relying on internal wire harnesses can introduce signal loss and increase manufacturing costs. Canare’s direct PCB-mount receptacles solve this issue, letting designers solder connectors directly onto the main board to streamline production and ensure clean, high-performance signal lines.

Heavy-Duty Mechanical Anchoring for Rugged IO Panels

To prevent component failure caused by heavy, stiff coaxial cables pulling on video panels, these connectors feature a screw-stabilized mechanical chassis base. The right-angle models include integrated mounting brackets that secure directly to the PCB or front metal plate using M2.6 machine screws. This mechanical connection absorbs the twisting and pulling forces from frequent cable connections, taking the physical strain off the delicate electronic solder pins. This keeps your board paths safe from trace cracks and cold joints over years of field deployment.

Product Specifications & Model Tiers

1. Ultra-High Frequency 12G-SDI Certified Tier

Engineered explicitly for next-generation 4K ultra-high-definition video processing hardware. These components keep return loss exceptionally low up to 12 GHz, making them perfect for uncompressed baseband video links.

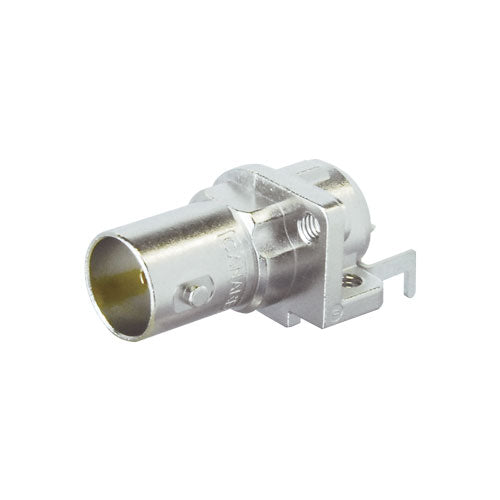

• BCJ-BPLHK (Right-Angle, Single): Horizontal stud alignment, front secured via M2.6 thread points, optimized for low-profile 1U rack-mount hardware cards.
• BCJ-BPLHK2P (Right-Angle, Dual Vertical Stack): Space-saving dual-channel stacked layout, allowing twice the number of video inputs on dense IO backplanes.

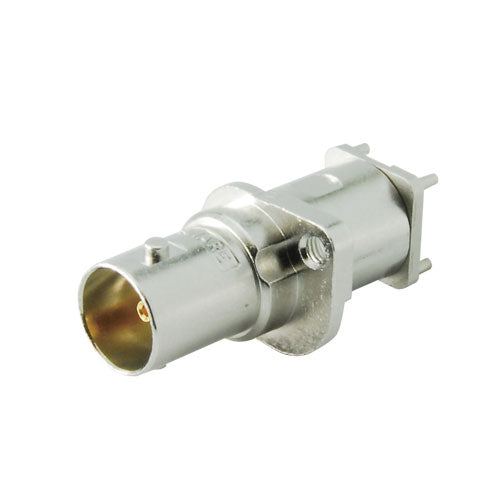

• BCJ-BPCK (Straight, Single Vertical): Top-entry vertical mounting layout, ideal for daughterboards and deep internal modular card frames.

2. Standard 3G-SDI & HD Broadcast Tier

The industry workhorse for 1080p master setups, monitoring arrays, and analog genlock distribution loops. This tier features a reliable return loss rating of $26\text{ dB at }1.5\text{ GHz}$.

• BCJ-BPLHA (Right-Angle, Single): Horizontal single-channel standard HD interface terminal.

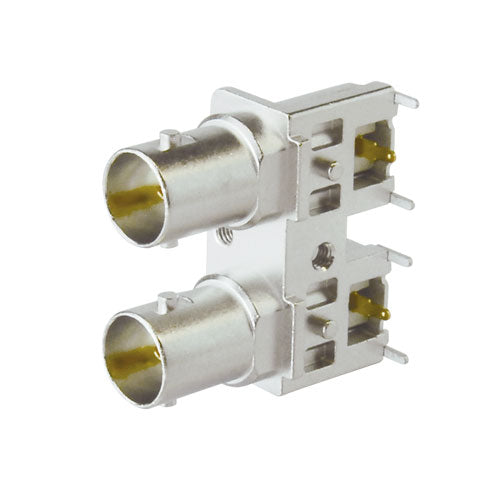

• BCJ-BPLH2PA (Right-Angle, Dual Stack): Double-stacked high-density layout optimized for 3G-SDI routers and multi-format switchers.
• BCJ-BPLH3PA (Right-Angle, Triple Stack): Maximum-density vertical three-port block, engineered to fit compact video production gear.

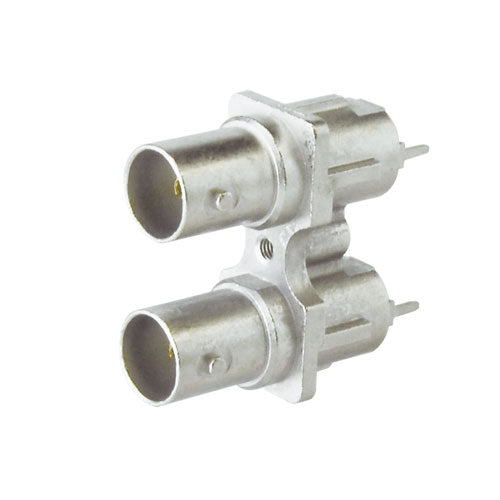

• BCJ-BPC2P (Straight, Dual Vertical): Dual-channel straight board terminal designed for vertical chassis mounting.
