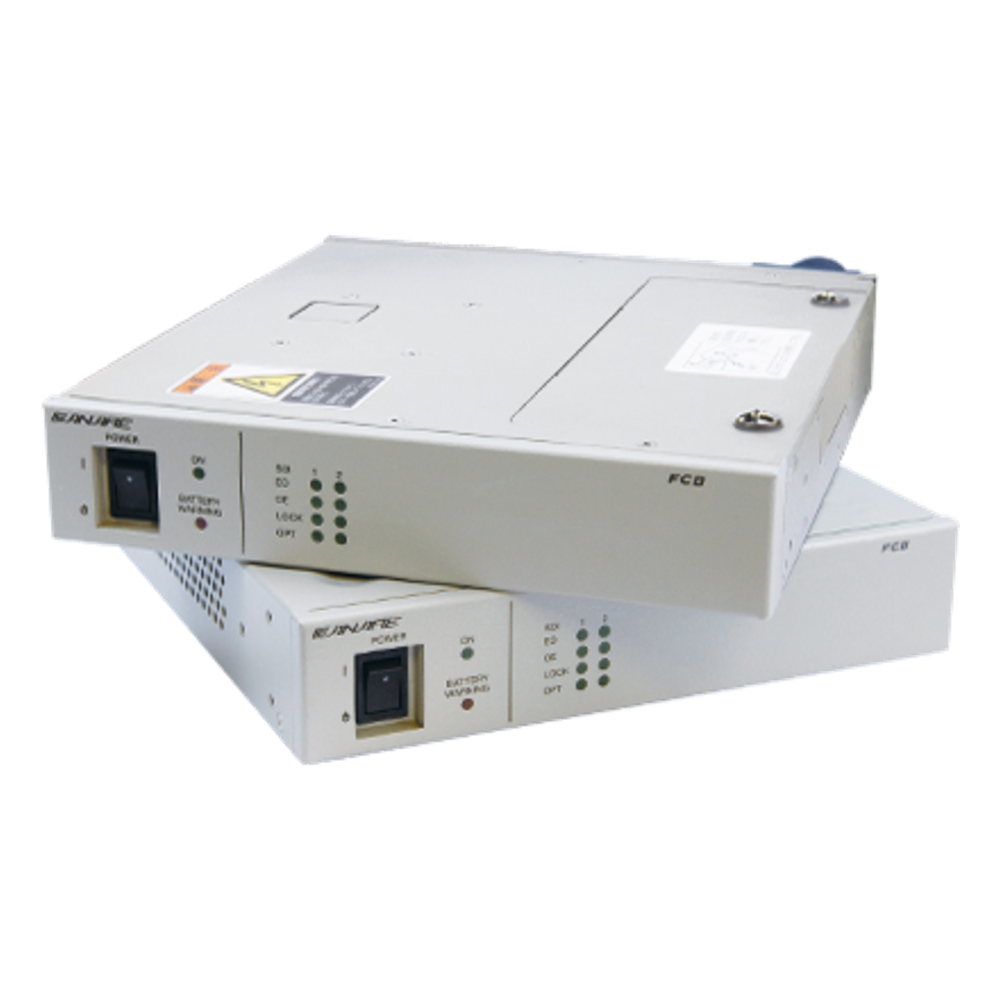

Canare FCBA 3G-SDI HFO transmission device pair, front view

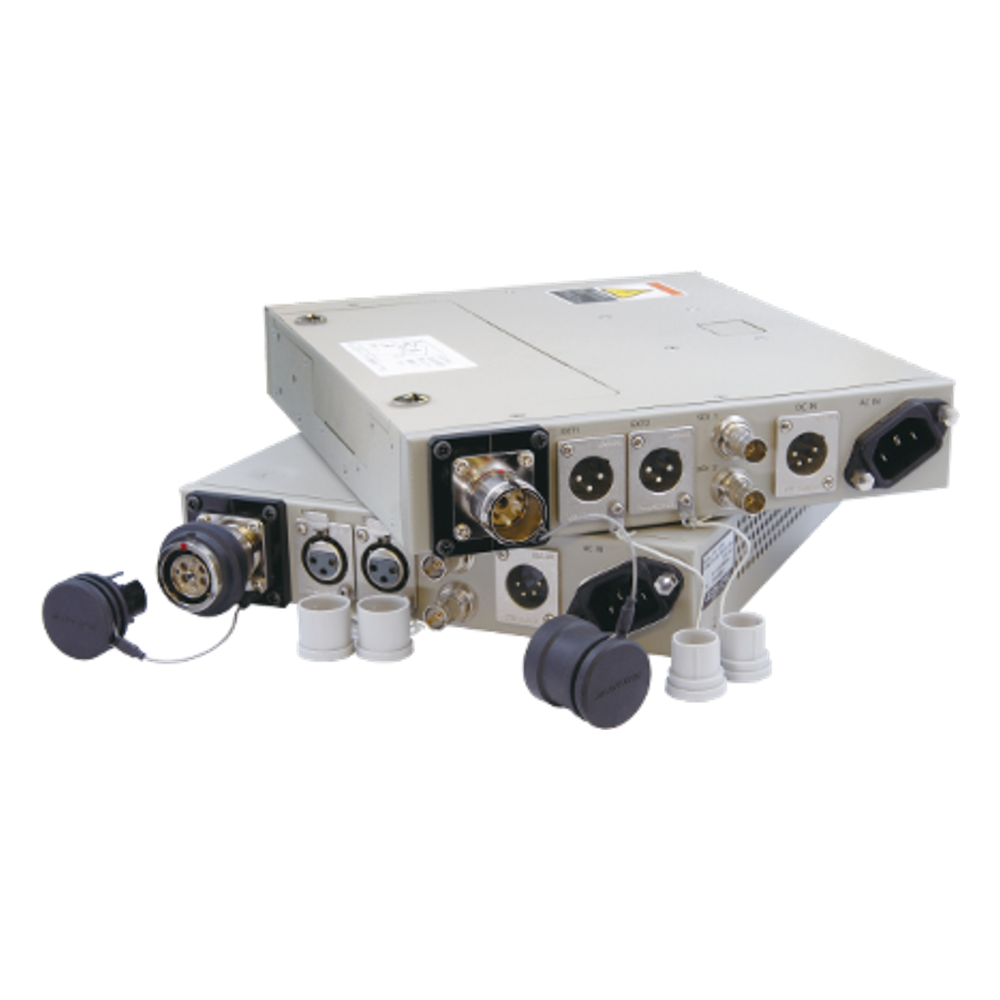

Canare FCBA rear panel with HFO connector, BNC and XLR terminals

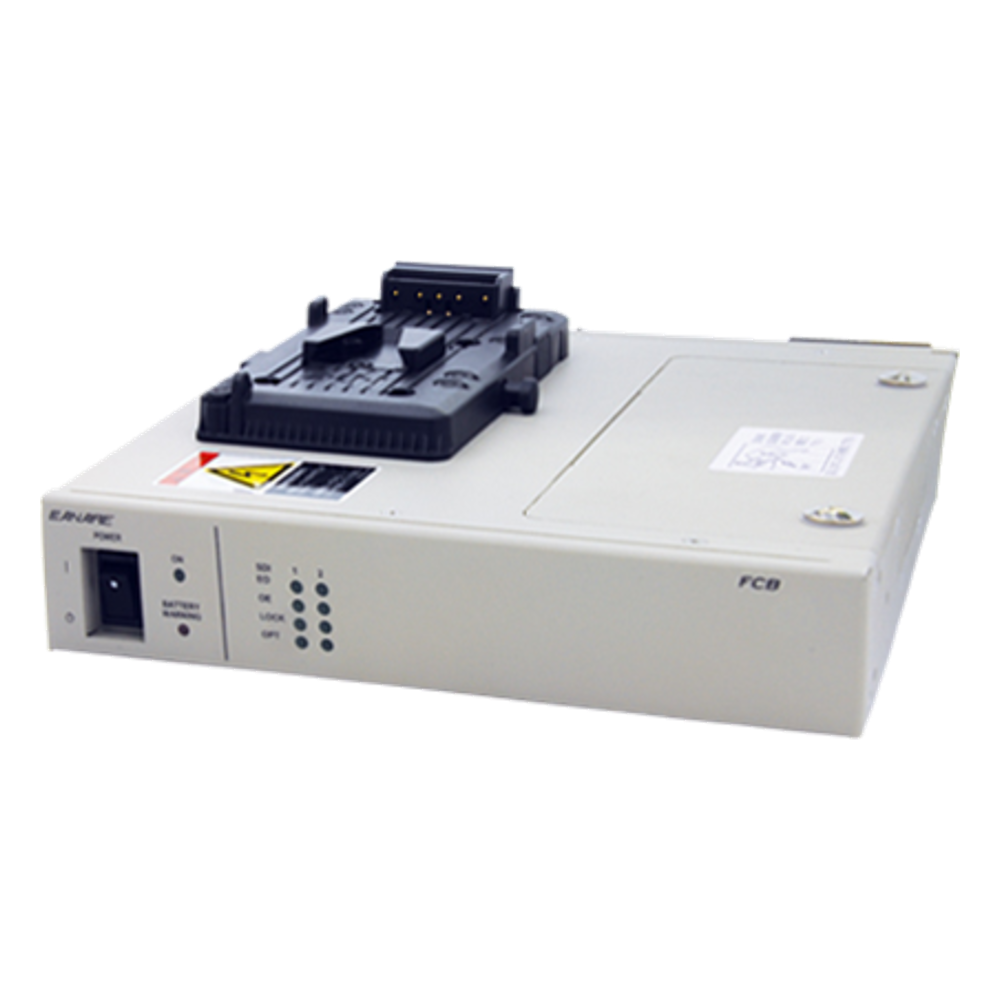

Canare FCBA-PV with IDX V-plate battery mount

Canare FCBA 3G-SDI HFO Transmission Device | 2-Channel Bi-Directional SDI over SMPTE Camera Cable

Canare Fiber Optic Systems

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

2 x 3G/HD/SD-SDI & DVB-ASI over one HFO camera cable
One TX and one RX channel (bi-directional)
Built-in EO/OE modules and power supply
AC 100–240 V and DC 10–18 V input redundancy
Canare FC (SMPTE/ARIB) or OC (Hybrid-OPS) connector
Optional IDX V-plate version (-PV)

Pricing Dhs. 19,828.00

Select option

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

SDI Over Your Existing Camera Cable

The Canare FCBA turns a standard hybrid fiber-optic (HFO) camera cable into a two-channel SDI fiber link. One unit sits at each end of the cable, carrying one 3G-SDI signal out and one back, so OB vans, stadiums and studios can send program returns and extra feeds over the SMPTE camera cable runs they already have.

All-in-One Field Unit

Each FCBA combines an EO (transmit) module, an OE (receive) module and a power supply in a 210 x 42 x 240 mm chassis weighing about 1.2 kg. It handles 3G-SDI, HD-SDI, SD-SDI and DVB-ASI on 75-ohm BNC connectors, and the EO/OE modules can be swapped to change the configuration. Note that the HFO cable's power conductors are not used: the FCBA has its own AC (3-pin) and DC (XLR4) inputs with automatic redundancy.

Choosing a Model

FF/FM versions use the Canare FC series connector (SMPTE 304 / ARIB); OF/OM versions use the OC series (Hybrid-OPS). Female (FF/OF) and male (FM/OM) units pair up at opposite ends of the camera cable. The -PV models add an IDX V-mount battery plate for cable-free power on location; rack-mount brackets are available.
