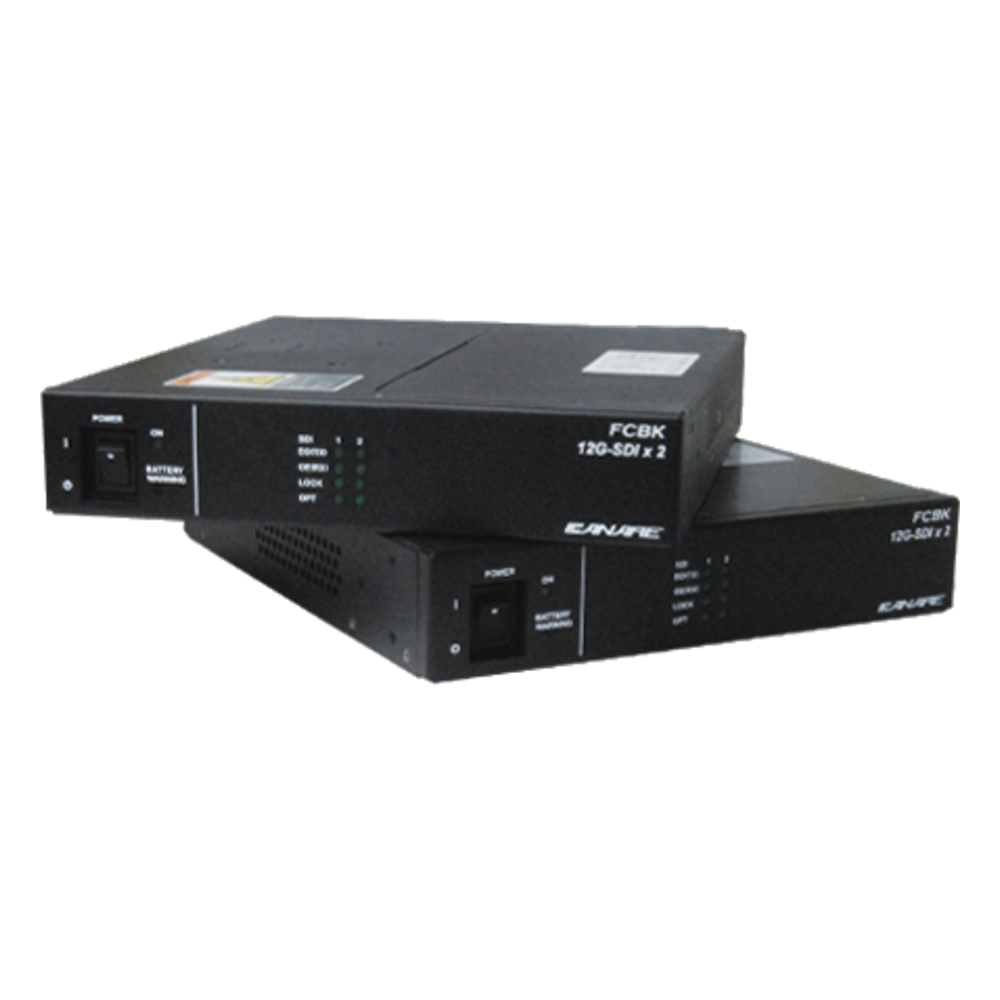

Canare FCBK 12G-SDI HFO transmission device pair, front view

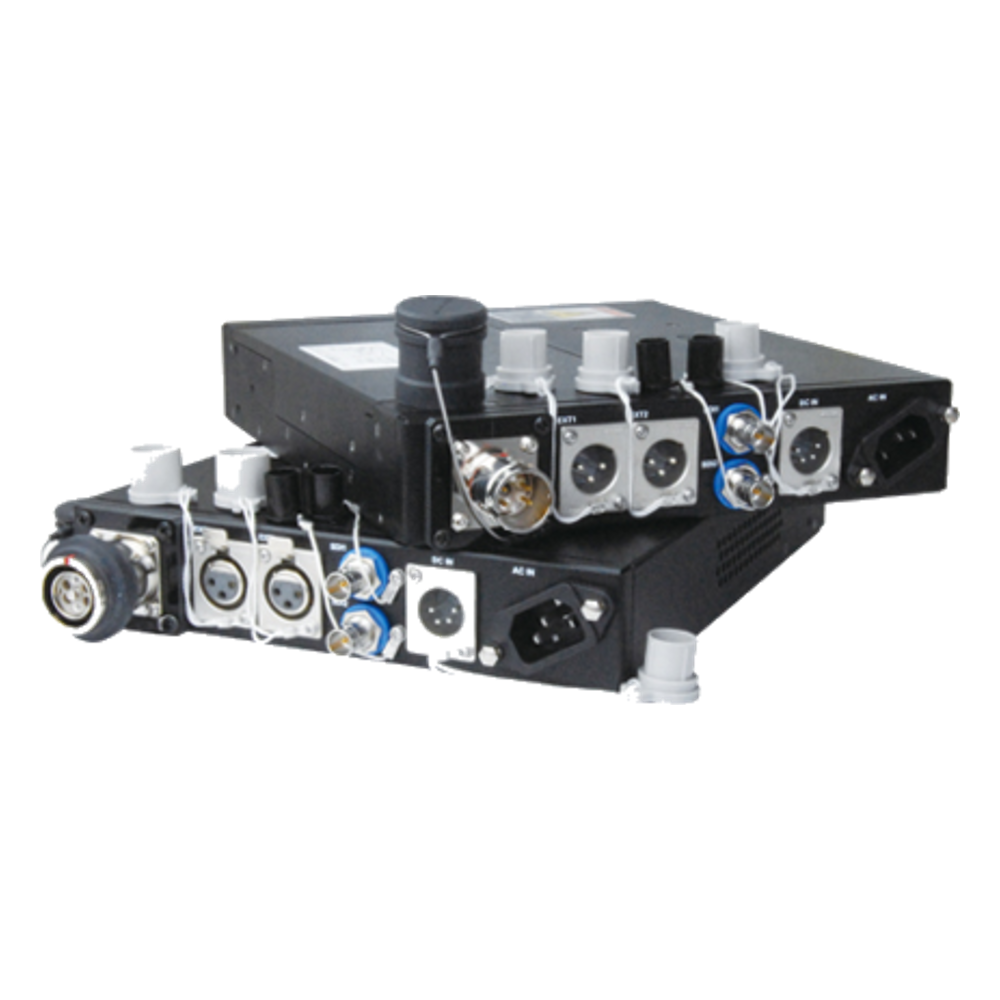

Canare FCBK rear panel with HFO connector, 12G-SDI BNC and XLR terminals

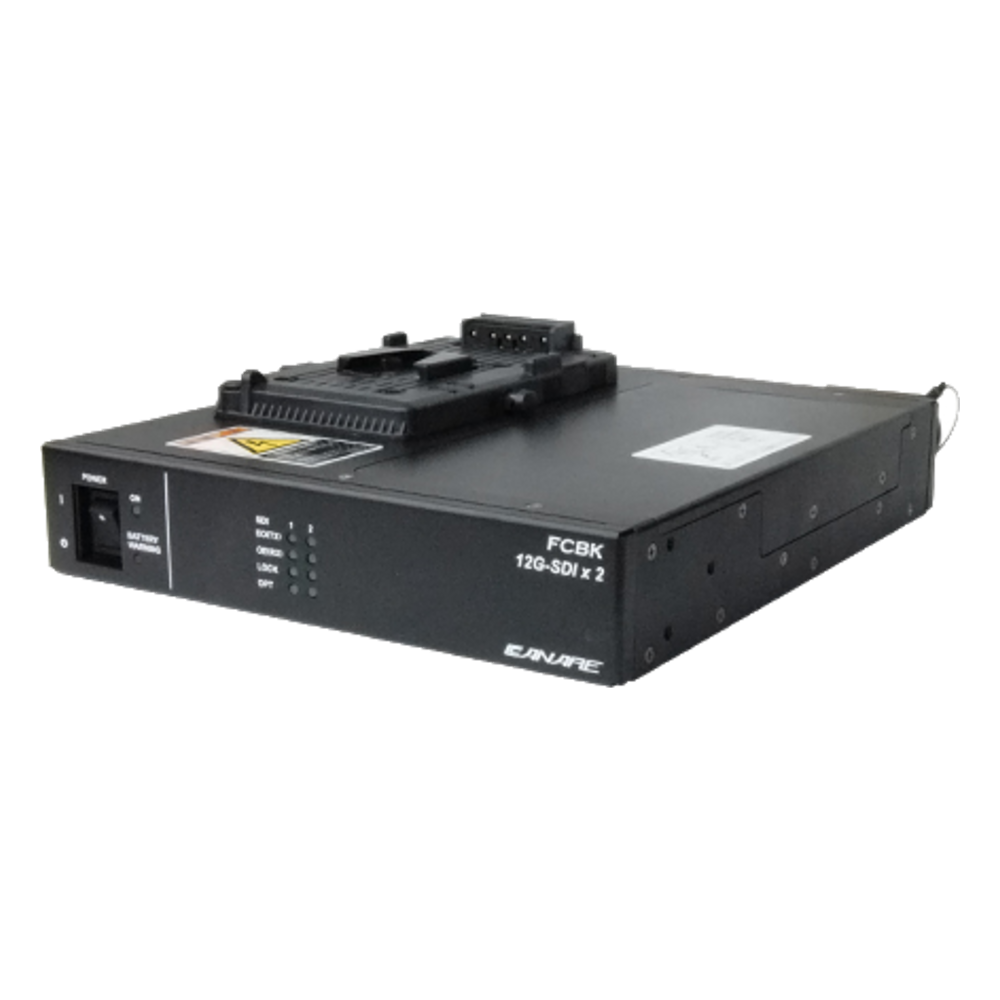

Canare FCBK-PV 12G-SDI with IDX V-plate battery mount

Canare FCBK 12G-SDI HFO Transmission Device | 2-Channel Bi-Directional 4K SDI over SMPTE Camera Cable

Canare Fiber Optic Systems

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

2 x 12G/6G/3G/HD/SD-SDI & DVB-ASI over one HFO camera cable
One TX and one RX channel for 4K UHD
Passes SDI pathological test patterns
Built-in EO/OE modules and power supply
AC and DC input with seamless switching
Optional IDX V-plate version (-PV)

Pricing Dhs. 33,208.00

Select option

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

4K Over the Camera Cables You Already Own

The Canare FCBK carries 12G-SDI over a standard hybrid fiber-optic (HFO) camera cable. A pair of units, one at each end, gives you one 4K feed in each direction, ideal for program returns, extra camera feeds or 4K monitoring in OB vans, stadiums and studio complexes without pulling new fiber.

Built for 12G Reliability

Each unit combines EO12G-100B and OE12G-101B modules with a power supply in a 210 x 42 x 240 mm, 1.4 kg chassis. It supports 12G, 6G, 3G, HD and SD-SDI plus DVB-ASI on 75-ohm BNC, and is capable of pathological test pattern transmission. AC (100–240 V) and DC (10–18 V via XLR4) inputs switch over seamlessly; the HFO cable's own power conductors are not used.

Choosing a Model

FF/FM versions use the Canare FC series connector (SMPTE 304 / ARIB); OF/OM versions use the OC series (Hybrid-OPS). Female and male units pair up at opposite ends of the camera cable. The -PV models add an IDX V-mount battery plate for field use; rack-mount brackets are available.

Technical Specifications +

No technical specification image has been added yet.
