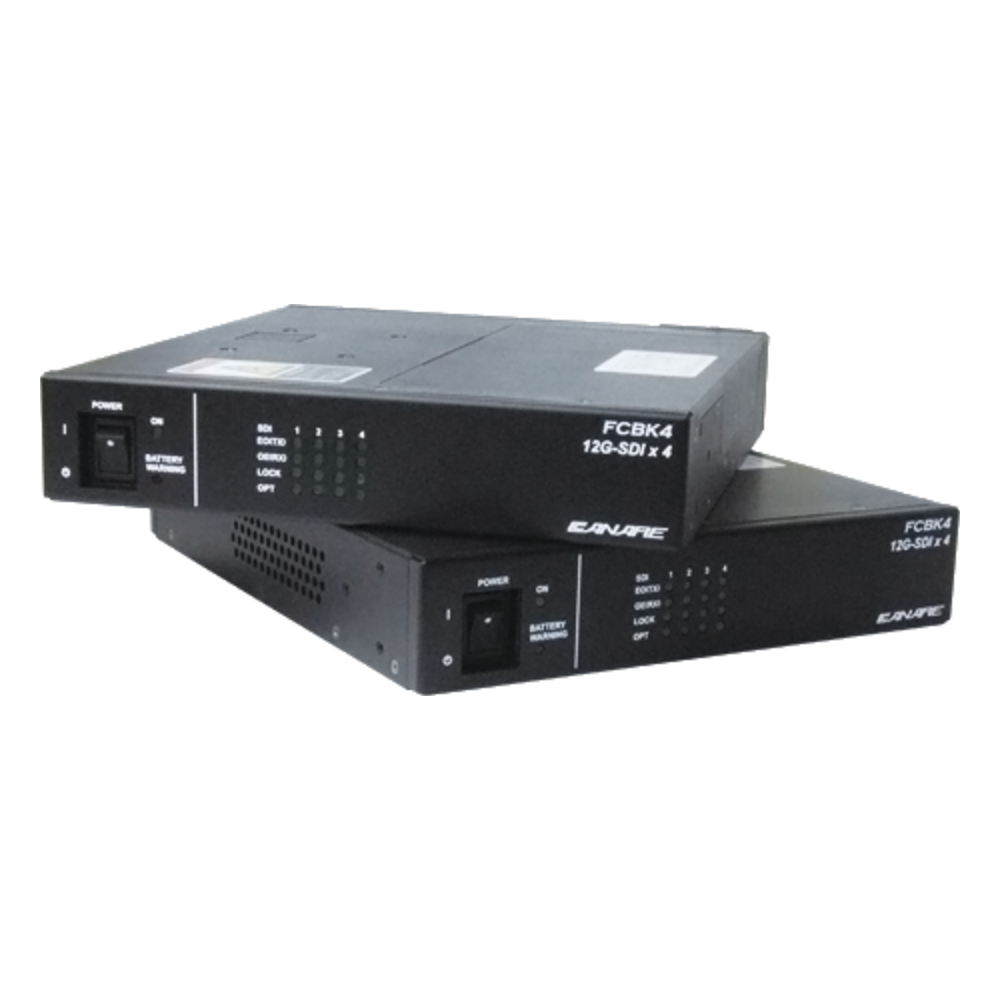

Canare FCBK4 quad-link 12G-SDI HFO transmission device pair, front view

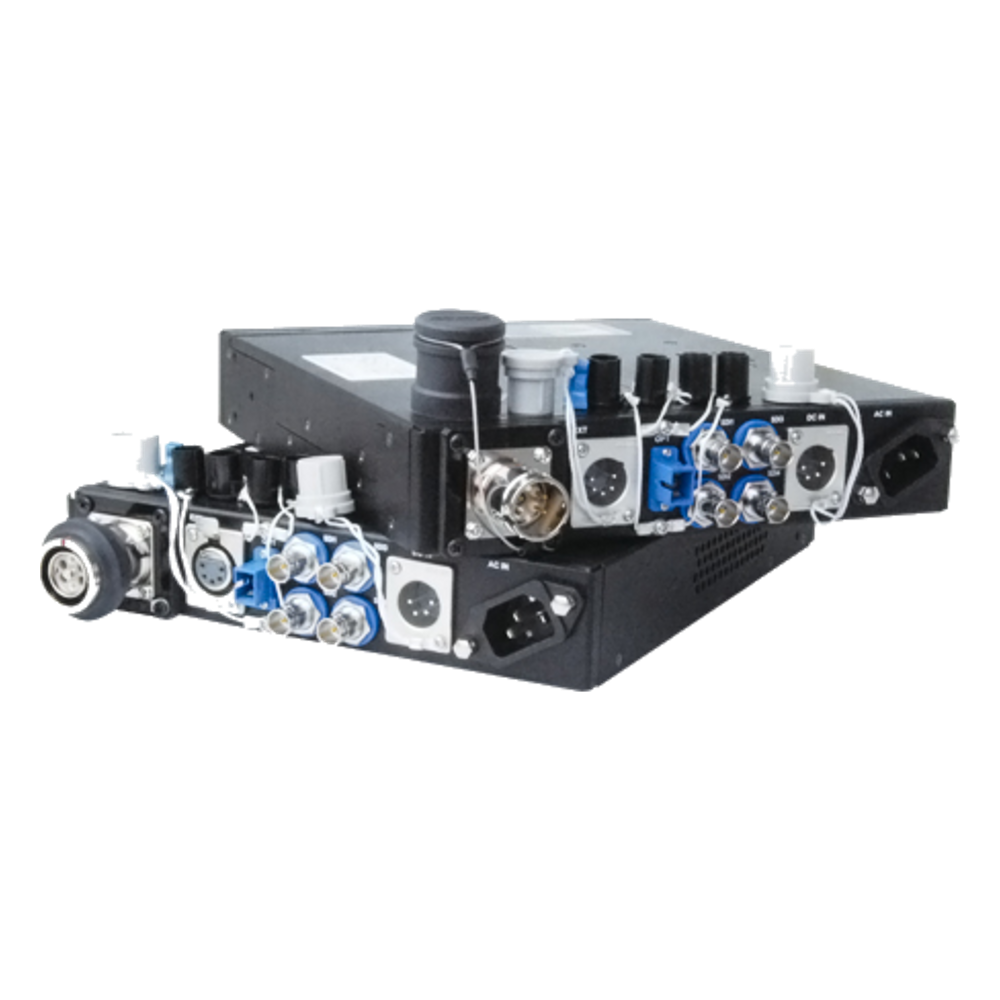

Canare FCBK4 rear panel with HFO connector and four BNC outputs

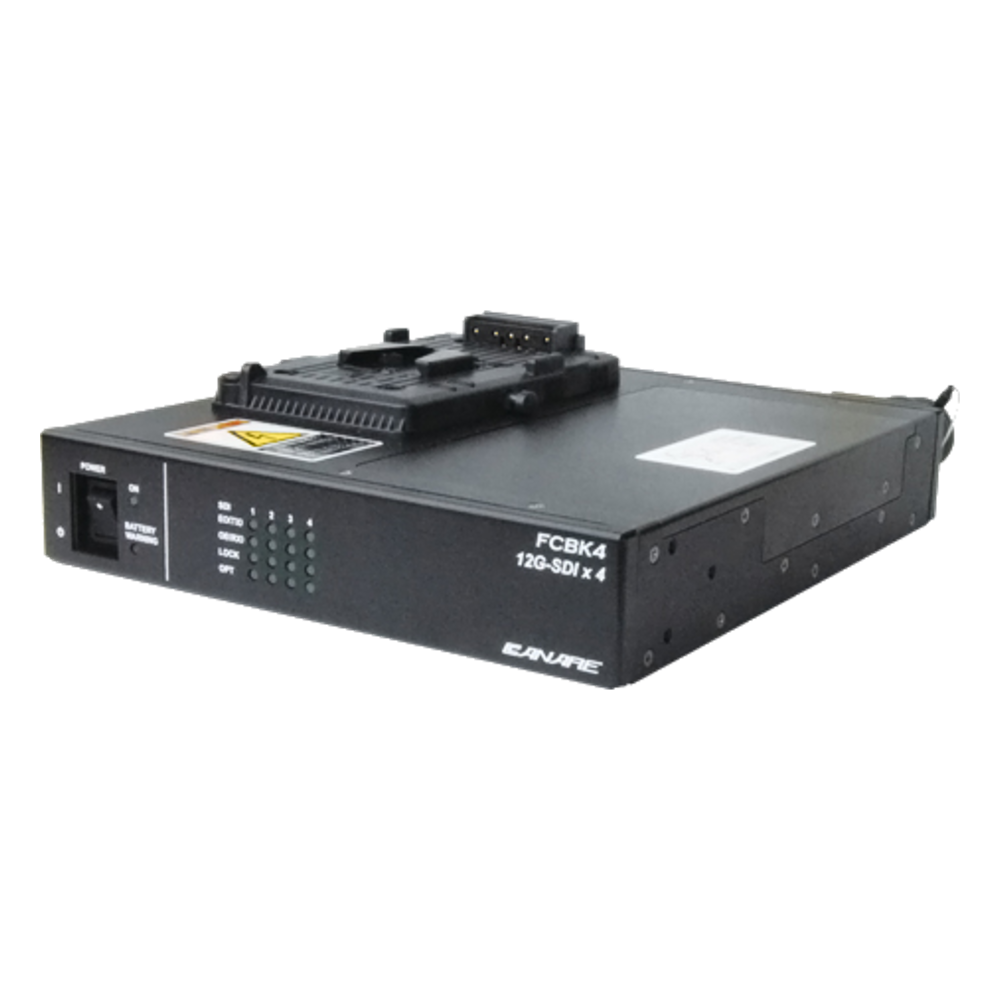

Canare FCBK4-PV with IDX V-plate battery mount

Canare FCBK4 12G-SDI HFO Transmission Device | 4-Channel Quad-Link 8K SDI over SMPTE Camera Cable

Canare Fiber Optic Systems

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

4 x 12G/6G/3G/HD/SD-SDI & DVB-ASI over one HFO camera cable
Quad-link 12G-SDI for 8K transmission
Four EO or OE modules plus power supply in one unit
Extra optical SC connector for optional use
AC and DC input redundancy
Optional IDX V-plate version (-PV)

Pricing Dhs. 59,128.00

Select option

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

8K and Quad-Link Over One Camera Cable

The Canare FCBK4 sends four 12G-SDI signals over a single hybrid fiber-optic (HFO) camera cable, enough for quad-link 8K or four independent 4K feeds. Install a transmitter unit at one end and a receiver at the other to move 8K from the venue to the OB van or studio over existing SMPTE camera cabling.

One-Way, Four Channels

Female (FF/OF) units carry four OE12G-101B receivers; male (FM/OM) units carry four EO12G-100A transmitters, so a matched pair forms a four-channel one-way link. Each 210 x 42 x 240 mm, 1.8 kg unit has 4 x 75-ohm BNC, an SC optical connector for optional use, an XLR5 external terminal, and AC 100–240 V / DC 10–18 V inputs with redundancy. Supports 12G/6G/3G/HD/SD-SDI, DVB-ASI and pathological test patterns.

Choosing a Model

FF/FM versions use the Canare FC series connector (SMPTE 304 / ARIB); OF/OM versions use the OC series (Hybrid-OPS). The -PV models add an IDX V-mount battery plate; rack-mount brackets are available.

Technical Specifications +

No technical specification image has been added yet.
