Single-Link 4K Video Routing for Advanced Mobile Production

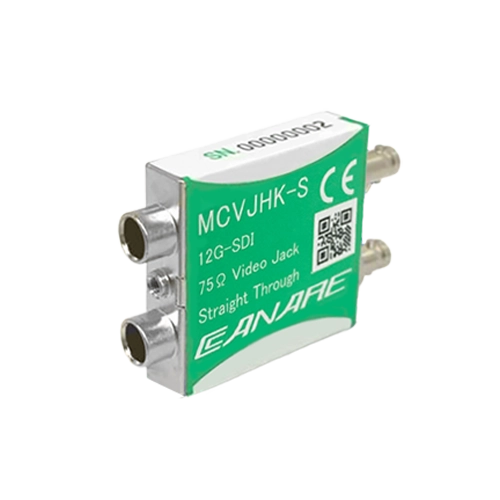

The Canare MCK-H Series 75-Ohm Micro Video Jacks represent the cutting edge of ultra-high-density signal distribution, bringing full 12G-SDI 4K UHD performance to compact broadcast architectures. As modern production demands shift toward higher resolutions without increasing equipment footprints, the MCK-H series delivers a smart solution. Weighing a mere 35 grams per jack, these micro modules allow engineers to build high-capacity 48-port routing fields that dramatically reduce rack clutter and total weight inside compact Outside Broadcast (OB) vans, remote flypacks, and tight production setups.

Micro BNC Lock Engineering with High-Frequency Performance

To support the demanding bandwidth of 12G data streams, the rear panel replaces standard friction connectors with specialized micro BNC terminals. This bayonet-locking style ensures a mechanically secure, vibration-proof connection that prevents accidental disconnects in mobile environments. The signal path is precision-engineered to maintain a true 75-ohm impedance, delivering a reliable return loss profile up to 12 GHz while offering a powerful 45 dB of cross-channel isolation at 6 GHz to prevent signal crosstalk.

Simplified High-Density Maintenance Workflow

Servicing tight, high-density terminal rows can be challenging during fast-paced live events. Canare addresses this by making the rear micro BNC interface fully compatible with the BET-HBNC extraction tool. This tool gives technicians a reliable extension grip to easily connect or disconnect individual lines—including premium Canare HBCP-series crimp plugs—without disturbing adjacent connections. Additionally, their identical dimensions allow you to mix these 12G jacks with older 3G Canare micro jacks within the same panel, making system upgrades simple and cost-effective.
