Elite AV-over-IP Network Infrastructure

The Canare RJC Ethernet Cable series represents a high-stability network architecture developed as an audio cable and video cable solution combined into an IP data line. In modern broadcasting and live event production, traditional baseband signaling is rapidly shifting to network infrastructures. These bulk data cables are tailored specifically for high-bandwidth AV applications, providing a stable backbone that keeps multi-channel audio tracking and high-bitrate video pipelines flawlessly synchronized.

Complete Video, Multi-Channel Audio, and PoE Convergence

This network cable family consolidates multi-signal paths into an elegant IT layout. It acts as a reliable pipeline for video ecosystems like high-frame-rate NDI HB/HX streams, uncompressed SMPTE ST 2110 blocks, and remote PTZ camera data control lines. At the same time, it flawlessly routes multi-channel digital audio networks like Dante and AVB. Because these lines fully support PoE++ standards, they easily deliver electrical current to run remote cameras, network interfaces, and PoE hardware directly over the network line.

Tailored Series Architecture for Varied Network Scenarios

To cover all bases between fixed installation layouts and demanding mobile stage setups, the Canare ethernet family is categorized into distinct series variants:

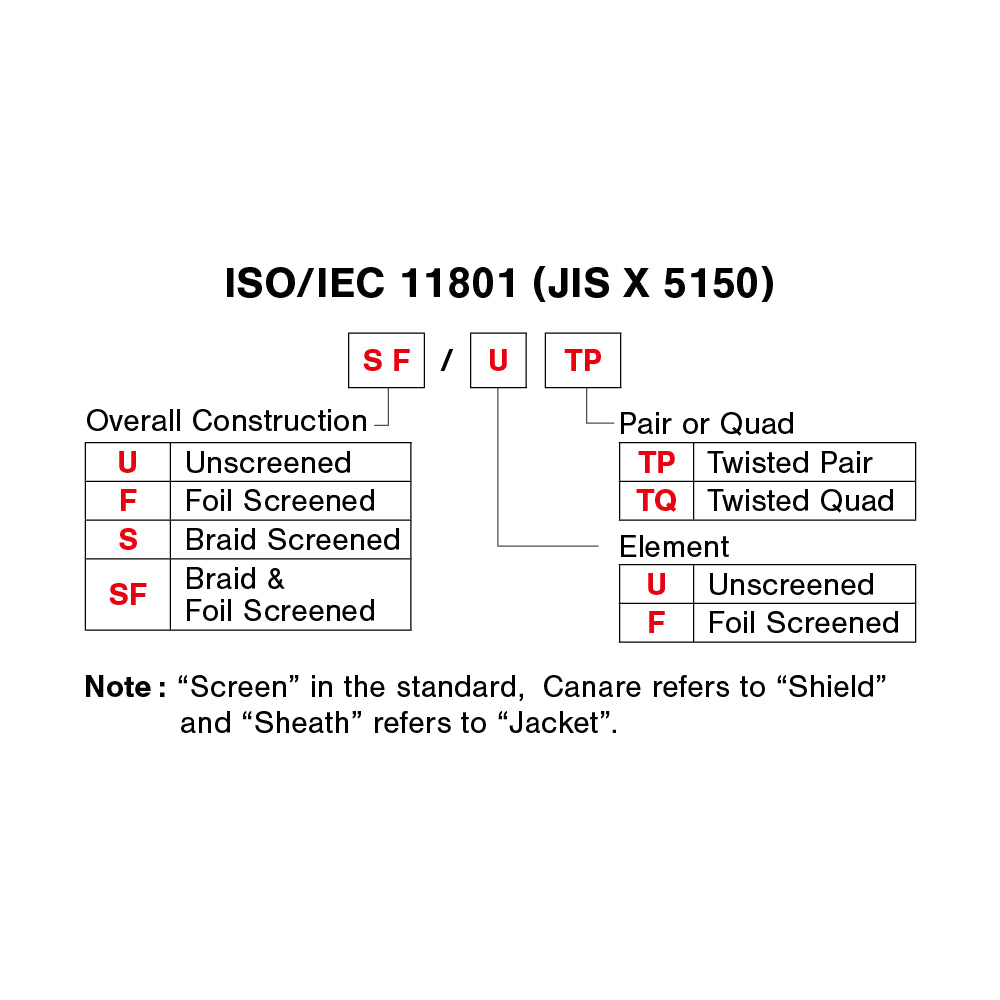

• Flexible & Rugged Mobile Class (RJC6A-4P-SFM / RJC5ES-4P-BS): Designed for field applications, outside broadcast (OB) setups, and live touring. The RJC6A-4P-SFM features an overall aluminum foil wrap and heavy 87% coverage braid (SF/UTP) with a flexible, abrasion-resistant PVC jacket that survives being stomped on or repeatedly coiled.
• Premium High-Performance Class (RJC6A-F4PH): Features individual aluminum foil shielding around each internal twisted pair (U/FTP). This premium design handles 10GbE data streams up to 100 meters and carries a Premium HDBaseT 3.0 certification, making it a top choice for high-end master control rooms.
• General Fixed Installation Class (RJC6-4P+ / RJC5E-4P+): Tailored for facility conduit pulls, server rack patching, and permanent building installations. These variants utilize solid conductors, come packed in handy pull boxes with length markers, and carry a UL 444 Type CM safety rating.
