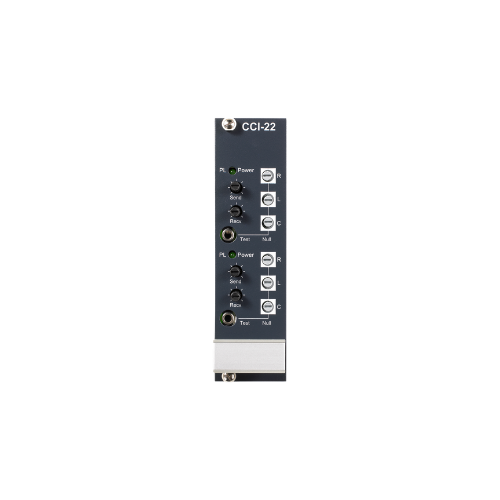

Clear-Com CCI-22 Dual Partyline Ring Interface Module

Clear-Com CCI-22 Dual Partyline Ring Interface Module

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Connects two 2-wire full-duplex partyline circuits to the matrix
Compatible with Clear-Com signaling and third-party partyline systems
Fully adjustable audio levels and nulling controls
Powered directly from the external party line circuit
Supports long cable runs up to 4,000 feet
Auto-discovering module for easy installation in Eclipse HX frames
Designed for professional broadcast and communication environments

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

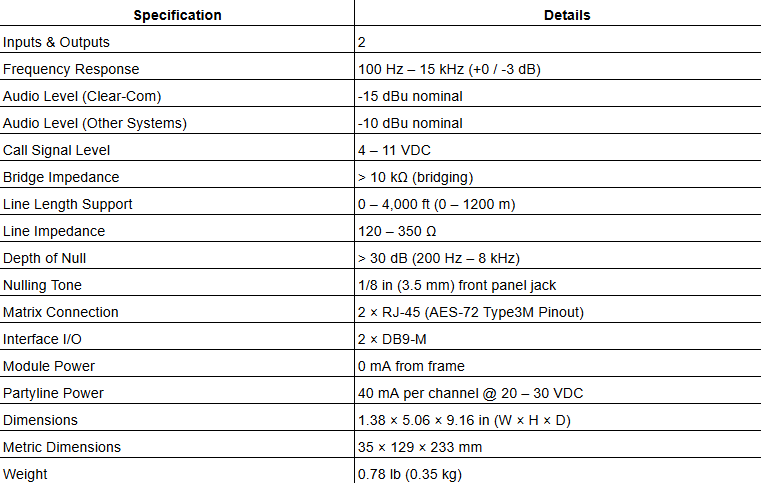

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

2-Wire Partyline Integration

The CCI-22 Dual Partyline Ring Interface Module allows professional intercom systems to connect with traditional 2-wire partyline communication circuits. Designed for use within the Eclipse HX Digital Matrix System, it enables two separate partyline channels to be integrated directly into the matrix system.

Compatibility with Clear-Com and Third-Party Systems

The module supports Clear-Com signaling and can also operate with compatible third-party 2-wire partyline systems. This flexibility allows broadcast facilities, live production teams, and communication networks to connect different intercom infrastructures into a single matrix environment.

Adjustable Audio and Advanced Nulling

The CCI-22 provides fully adjustable audio levels and nulling capabilities to optimize signal clarity and minimize line noise. It supports line lengths of up to 4,000 feet and can handle varying line impedances, making it suitable for complex communication setups in studios, stadiums, and production control rooms.

Seamless Integration with Eclipse HX Frames

The module installs directly into Eclipse interface frames such as Median Frame, Delta Frame, Delta-Lite Frame, or external interface frames like IMF-3 Interface Frame. When used with the MVX-16A Interface Card, the module automatically integrates into the system, simplifying installation and configuration.
