Universal Cross-Protocol Matrix Command

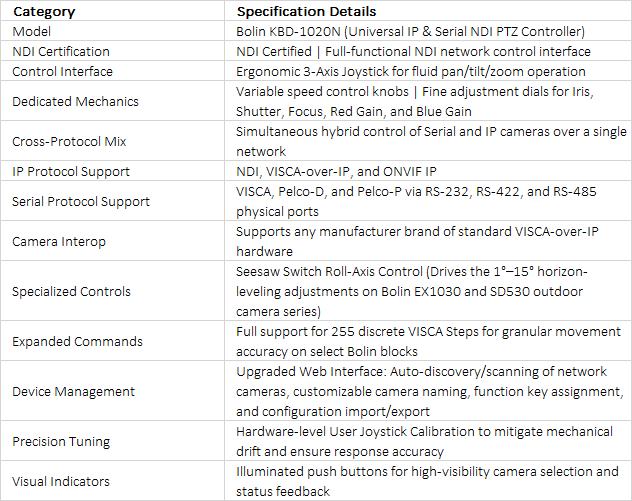

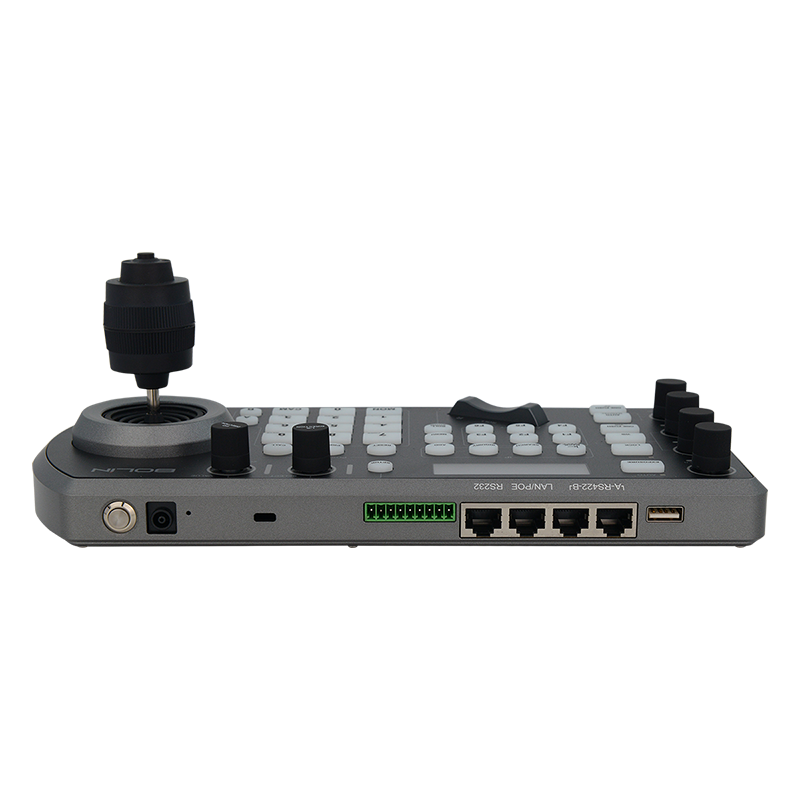

The Bolin KBD-1020N is a broadcast-grade, hardware-accelerated PTZ camera controller engineered to manage multi-camera configurations across mixed IP network and legacy serial environments. This certified NDI hub features a unique cross-protocol mix-control architecture, enabling technical directors to transmit commands over traditional baseband copper and modern networked environments simultaneously. Operators can control legacy cameras over RS-232, RS-422, or RS-485 serial buses using standard Pelco-P/D or VISCA protocols, while concurrently routing networked control commands over IP via VISCA-over-IP, ONVIF, and native NDI. This extensive interoperability eliminates system restrictions, allowing the KBD-1020N to seamlessly control both Bolin devices and third-party pan-tilt-zoom cameras within a unified production environment.

High-Precision Ergonomics and Tactile Response

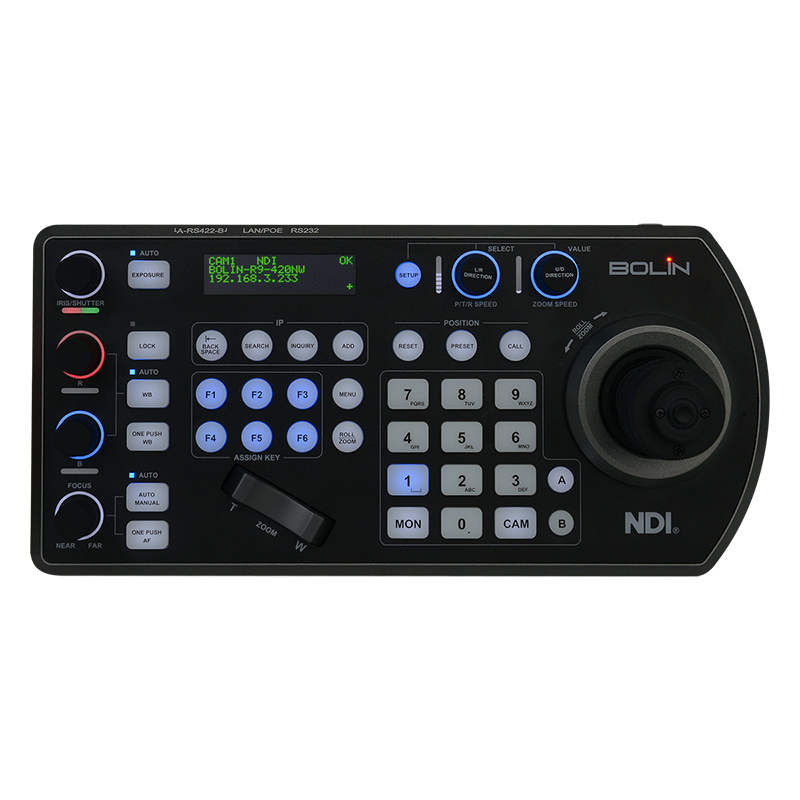

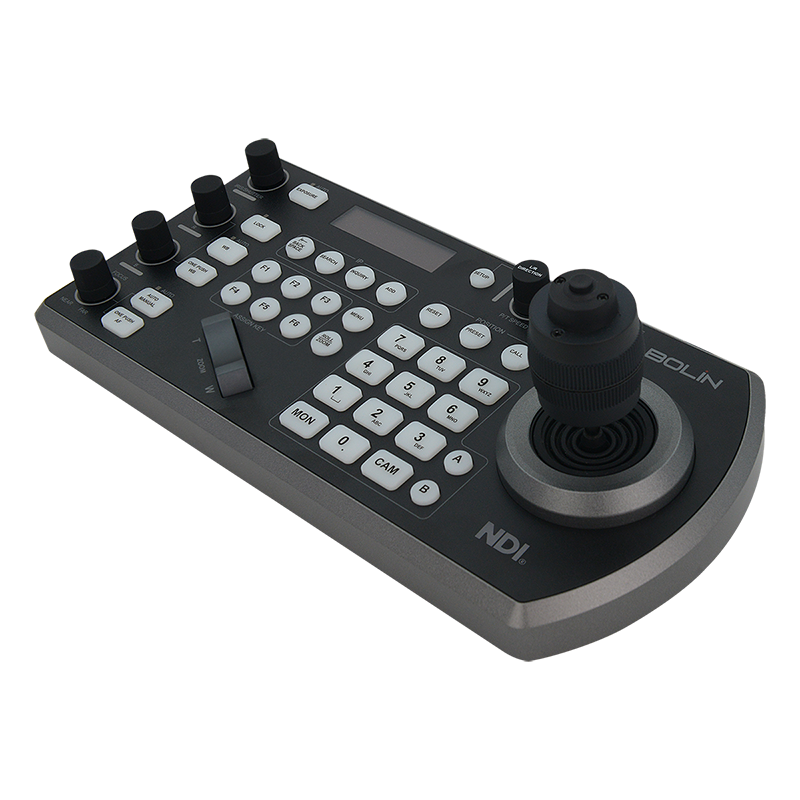

Built to handle the fast-paced demands of live unscripted environments, the KBD-1020N features an upgraded ergonomic interface designed for accurate, blind-touch adjustments. The console centers around a responsive, proportional 3-axis joystick that delivers smooth, simultaneous panning, tilting, and twist-to-zoom movements. Fine-tuning image parameters is intuitive thanks to dedicated, click-free rotary knobs that provide immediate control over iris settings, shutter speeds, focus values, red/blue color gains, and overall PTZ pan/tilt variable speed rates. Clear backlit physical push buttons provide instant confirmation of active camera selections and tracking presets, while a integrated center zoom rocker switch offers smooth variable focal changes during long broadcast sessions.

Specialist Horizon Balance and Horizon Adjustment

Diverging from basic data entry keyboards, the KBD-1020N features integrated roll-axis leveling logic, specifically designed for specialized outdoor remote cameras like Bolin’s ruggedized SD530 and EX1030 tracking systems. Using an integrated, spring-loaded seesaw switch, operators can execute a 1-to-15 degree physical horizontal rotation directly from the console. This functionality lets operators level an image against a slanted horizon line or capture stylized, off-axis Dutch angles during high-energy events without requiring a technician to physically adjust the camera's mounting hardware.

Modern Web Configuration and Resilient Deployment

The controller features an upgraded web management interface that simplifies large-scale camera rollouts. Through a standard web browser, engineers can scan the local network for new IP cameras, assign persistent numbering profiles, and label source feeds. It features user-driven joystick calibration utilities to correct mechanical drift over time, assignable function hotkeys, configuration backup tools, and support for high-precision 255-step VISCA positioning loops. Tailored for broadcast galleries, remote trucks, multi-campus corporate networks, and houses of worship, the KBD-1020N supports dual power architectures. It can pull operational power via a standard PoE network connection to minimize cable runs, or connect directly to a localized 12VDC power brick.
