CL-120D 120W 2:1 Bi-color SMD LED Panel Light
Product
Warranty
Support
Delivery
Key Features
Key Features
- 1800 high-performance SMD LEDs for powerful and uniform lighting
- 120W output delivering 3700 Lux at 1 meter
- Bi-color adjustable from 2700K to 6500K
- Wide 120° beam angle for soft and even light distribution
- Flicker-free dimming from 0–100%
- Silent fanless operation for noise-free environments
- Exceptional color accuracy: CRI 98, TLCI 99
- DMX512 control for professional lighting setups
- LCD for real-time monitoring
- Supports V-mount/Gold mount battery and AC power

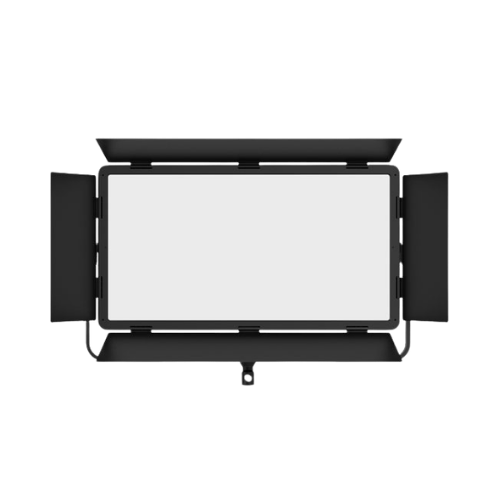

- Includes barn doors and yoke bracket for flexible light shaping
Features & Specifications
Product Overview +
High Power Professional Lighting
The CL-120D delivers a strong 120W output with an impressive 3700 Lux at 1 meter. It is designed for professional studio environments, broadcast setups, and live productions where powerful and consistent lighting is essential.
Advanced SMD LED Technology
Featuring 1800 surface-mounted LEDs, this panel ensures superior brightness, extended lifespan, and excellent light uniformity. The result is a soft yet powerful light source ideal for high-end video production.
Wide and Even Light Coverage
With a 120° beam angle, the CL-120D provides smooth and even light distribution from center to edge. This eliminates harsh shadows and creates a natural lighting effect across the subject.
Flexible Bi-color Control
The adjustable color temperature range of 2700K to 6500K allows seamless adaptation to different lighting conditions. Fine control ensures accurate color matching for professional-grade visuals.
Silent and Flicker-Free Operation
The fanless design guarantees completely silent performance, making it ideal for interviews, film production, and studio recordings. Flicker-free dimming ensures smooth output even during high-speed shooting.
Professional DMX Control

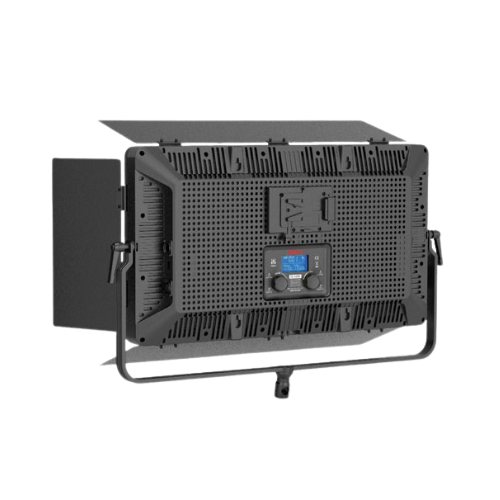

The integrated DMX512 interface (5-pin XLR) allows precise remote control of brightness and color temperature. The LCD display shows real-time settings including dimmer levels, color temperature, and DMX addressing.
Flexible Power and Mounting Options

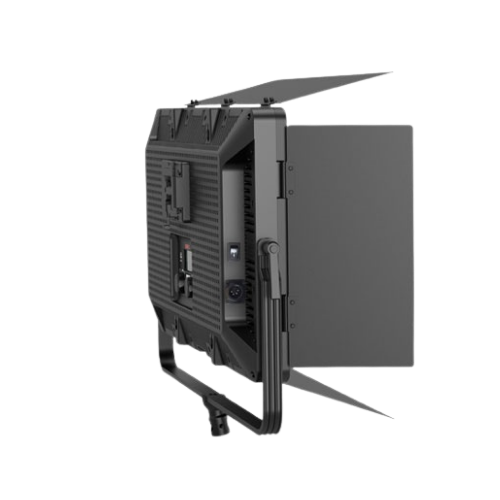

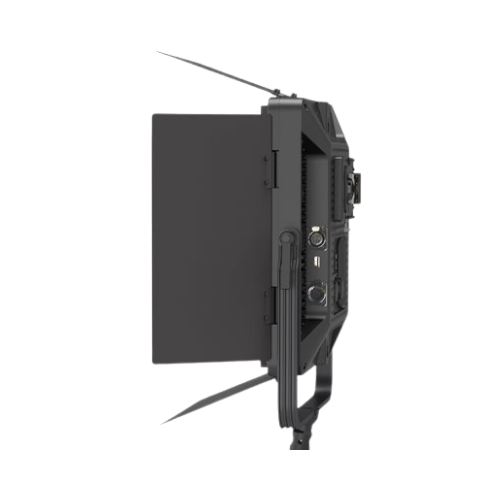

The CL-120D supports both DC input and V-mount/Gold mount batteries, providing flexibility for both studio and field use. The included yoke bracket and barn doors allow easy positioning and light shaping.

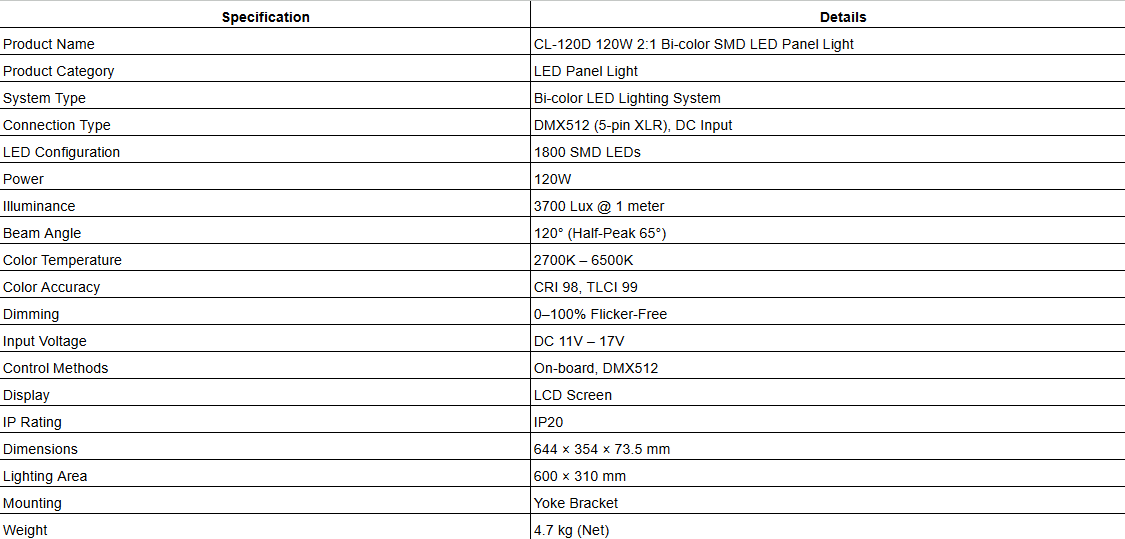

Technical Specifications +
technical specifications
