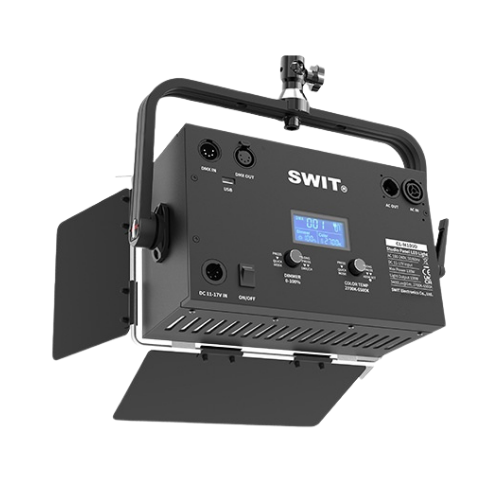

CL-M100C 100W Mini Size Studio RGBW Light
Product
Warranty
Support
Delivery
Key Features
Key Features
- 170 RGB + 340 White SMD LEDs for powerful RGBW lighting
- Compact mini-size design ideal for low ceiling installations
- 100W output delivering 3000 Lux at 1 meter
- Wide color temperature range: 2800K–10000K with G/M adjustment
- Multiple color modes: CCT, HSI, RGB, CIE, GEL, Effects
- Built-in 40 gel presets (20 Rosco + 20 LEE)
- Time-Division Drive technology for brighter RGB output
- High color accuracy: CRI 96, TLCI 93
- Silent fanless operation
- DMX512 and Bluetooth app control support
- PowerCON TRUE1 AC input with loop-out capability

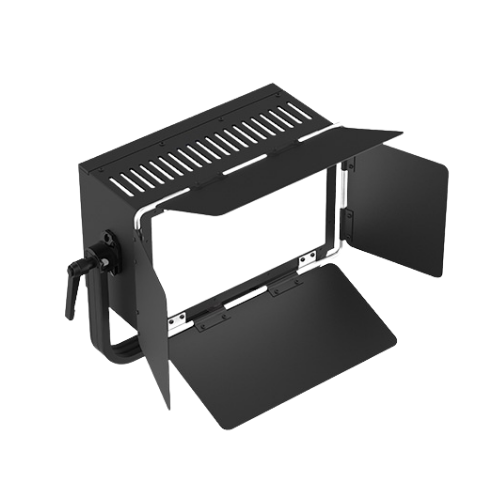

- Includes barn doors and yoke bracket
Features & Specifications
Product Overview +
Compact and Powerful RGBW Design
The CL-M100C features a mini 1:1/2 size design, making it perfect for tight studio spaces and low ceiling installations. Despite its compact size, it delivers powerful 100W output suitable for professional lighting setups.
High Output RGBW Performance
With 170 RGB and 340 white LEDs, the CL-M100C produces up to 3000 Lux at 1 meter. Its advanced Time-Division Drive technology ensures enhanced brightness in RGB modes, delivering output comparable to higher wattage RGB lights.
Advanced Color Control Options
This light supports multiple color modes including CCT, HSI, RGB, CIE, GEL, and Effects. The wide color temperature range from 2800K to 10000K, along with green/magenta adjustment, allows precise color tuning for any environment.
Silent and Flicker-Free Operation
The fanless cooling system ensures completely silent operation, making it ideal for interviews, film production, and studio environments. Flicker-free dimming guarantees smooth performance even during high-speed shooting.
Smart Control and Connectivity

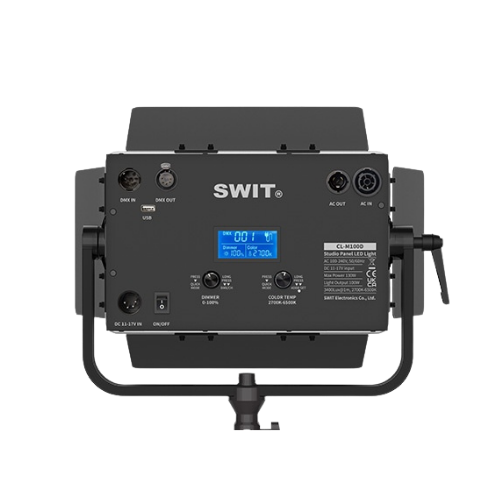

Control the CL-M100C via onboard controls, DMX512 (5-pin XLR), or Bluetooth using the SWIT Console app. The built-in 3.5-inch LCD provides a visual interface for easy and accurate color selection.
Flexible Power and Installation
Equipped with PowerCON TRUE1 AC input and loop-out, the light supports daisy-chaining multiple units for studio setups. It also includes USB-A output for firmware updates and powering accessories, ensuring versatile operation.

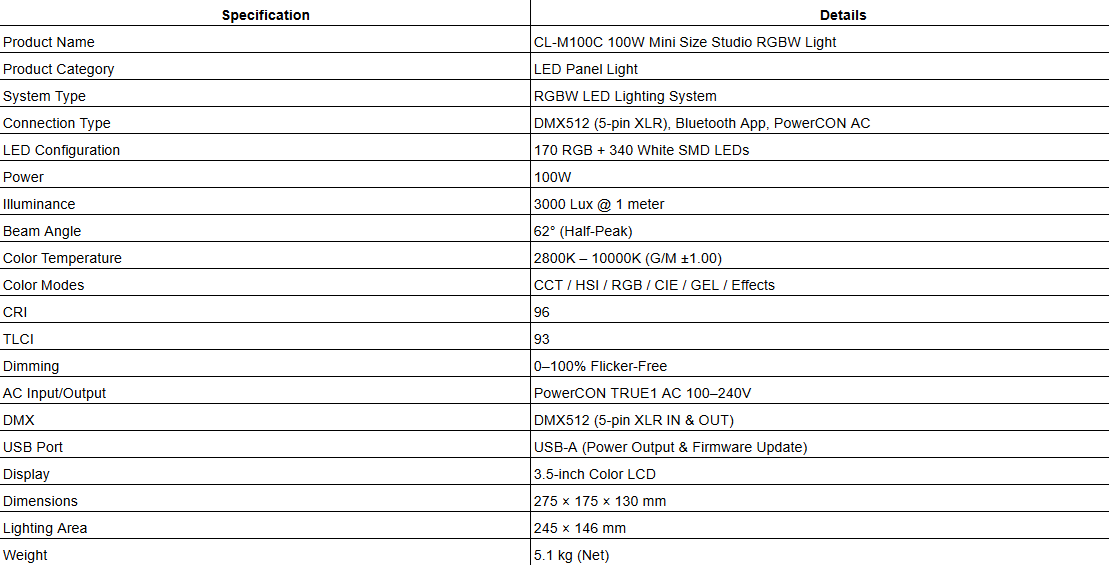

Technical Specifications +
technical specifications
