Live Intercom System Control

Dynam-EC is an advanced live assignment software module designed for Eclipse HX digital matrix intercom systems. It enables operators to dynamically configure and control audio routing in real time without interrupting system operation.

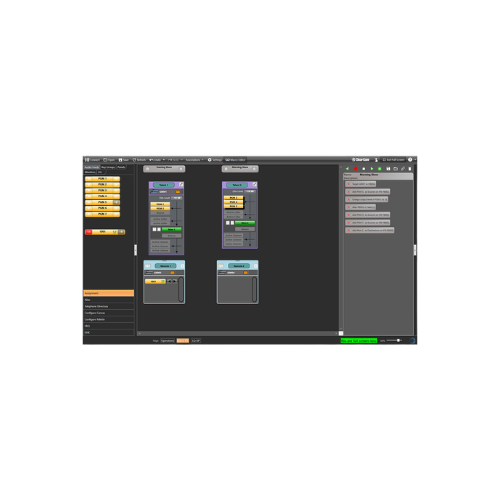

Drag-and-Drop Routing Interface

The system allows users to visually manage communication paths through a simple drag-and-drop interface. Operators can instantly connect or disconnect interface ports, partylines, IFB channels, and other communication endpoints directly from the control interface.

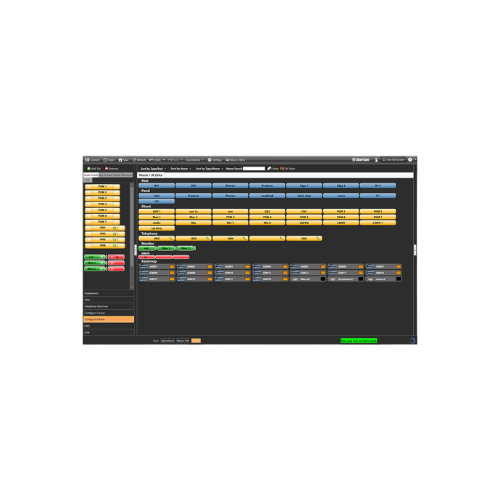

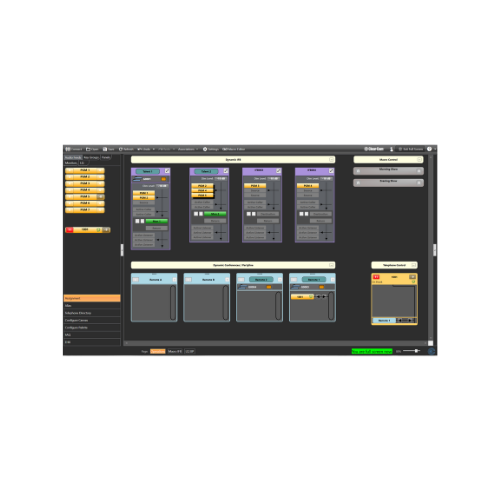

Customizable Operator Workspace

Dynam-EC includes a fully customizable interface where operators can organize communication resources using palettes and canvases. This layout enables clear visualization and rapid access to system connections during live productions or complex operations.

Telephone Line Management

Operators can manage telephone communication directly within the Dynam-EC interface. Features include hook control, dialing through an on-screen keypad or directory, caller identification, phonebook access, and live call monitoring.

Real-Time Audio Monitoring and Level Control

The system provides detailed monitoring of audio signal levels for all interface ports. Input and output levels can be adjusted instantly using mouse controls or touchscreen faders. VOX indicators help operators detect active audio signals, while monitoring tools allow routing to speakers for troubleshooting.

Temporary Alias and Key Group Assignment

Dynam-EC allows operators to temporarily rename interface ports, partylines, or telephone lines with custom aliases. These labels update instantly across the system and can also be triggered automatically when calls are received. Key groups allow operators to quickly assign communication resources to keysets across multiple user stations.

Macro Automation and System Recovery

Operators can create macros to automate repetitive tasks such as routing configurations or system resets. These macros can be triggered manually or through keysets configured in EHX software. The system also records recent actions, allowing operators to quickly undo changes if needed.
